General
Device Type

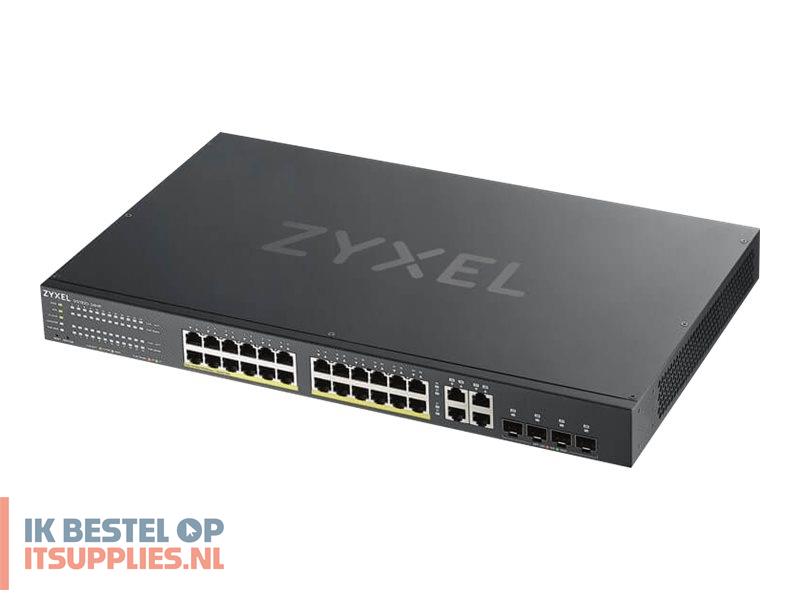

Switch - 24 ports - smart
Enclosure Type
Rack-mountable 1U
Ports
24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 4 x 10/100/1000
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 56 Gbps ¦ Forwarding rate: 42 Mpps
Capacity
QoS hardware queues per port: 8
MAC Address Table Size
16K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Authentication Method
RADIUS, TACACS+
Features
Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, MLD snooping, DHCP relay, Port Security, SNMP trap, DHCP client, Management Information Base (MIB), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), dual firmware images, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), port isolation, Class of Service (CoS), IGMP proxy, 802.1x authentication, Duplicated Address Detection, cloud managed, DiffServ Code Point (DSCP) support, 1.5MB packet buffer, ErrDisable Recovery, IGMP filtering, IGMP throttling, Protocol-based VLANs support, CPU protection, IP source guard, ARP inspection, Internet Control Message Protocol (ICMP), VLAN filtering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, Weighted Round Robin (WRR), MAC based VLAN, VLAN Tagging, port-based VLAN, Unknown Storm Control, MRSTP, MAC freeze
Compliant Standards
IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Expansion / Connectivity
Interfaces
24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP ¦ 4 x 1000Base-T RJ-45
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
463.5 Watt
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A
Dimensions & Weight
Dimensions & Weight (Shipping)
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 95% (non-condensing)
