General

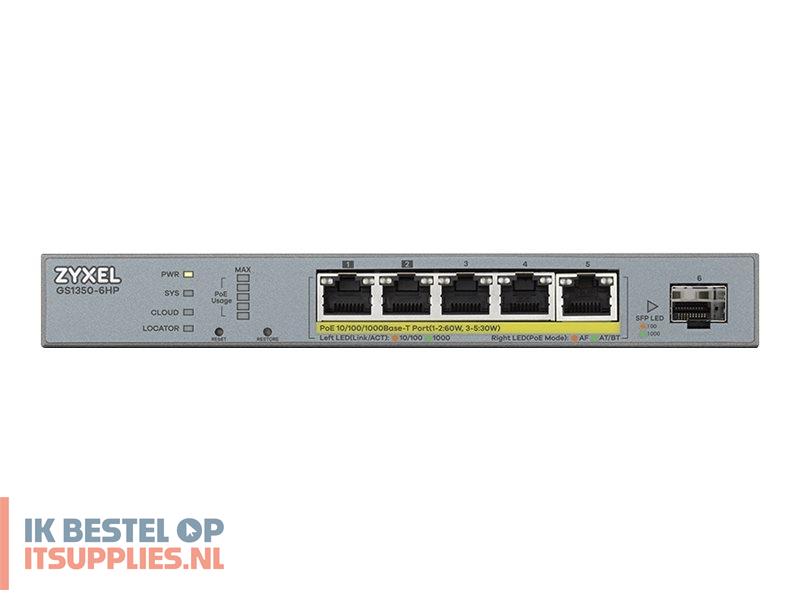

Device Type
Switch - 6 ports - smart
Ports
5 x 10/100/1000 (PoE+) + 1 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 12 Gbps ¦ Forwarding rate: 8.9 Mpps
MAC Address Table Size
8K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH-2, CLI, NTP, ICMP
Authentication Method
RADIUS, Secure Shell v.2 (SSH2)
Features
Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Quality of Service (QoS), fanless, DHCP relay, SNMP trap, DHCP client, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), port isolation, Class of Service (CoS), IGMP proxy, security lock slot (cable lock sold separately), 8KV/15KV ESD Protector, 525KB packet buffer, DiffServ Code Point (DSCP) support, IGMP filtering, IGMP throttling, CPU protection, 4KV Surge protection, dual image support, DLF (Destination Lookup Failure), IGMP querier, schedule PoE, Loop Guard, Voice VLAN, LLDP-MED, Weighted Round Robin (WRR), MAC based VLAN, port-based VLAN, Unknown Storm Control, VLAN trunking, IPv4 and IPv6 dual stack
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
Status Indicators
Power, system, PoE, link/activity, locator, cloud
Expansion / Connectivity
Interfaces
5 x Gigabit LAN RJ-45 3 ports (PoE+) / 2 ports (PoE) - 60 W ¦ 1 x Gigabit LAN SFP uplink
Power
Power Device
External power adapter
Power Provided
DC 52 - 57 V
Voltage Required
AC 120/230 V (50/60 Hz)
Miscellaneous
Included Accessories
Wall mounting kit
Compliant Standards
FCC Class A certified, EMC, RoHS, BSMI CNS 13438, C-Tick Class A, LVD, BSMI CNS 14336-1, EN 62368-1
Software / System Requirements
Software Included
Zyxel One Network Utility
Dimensions & Weight
Dimensions & Weight (Shipping)
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
