General
Device Type

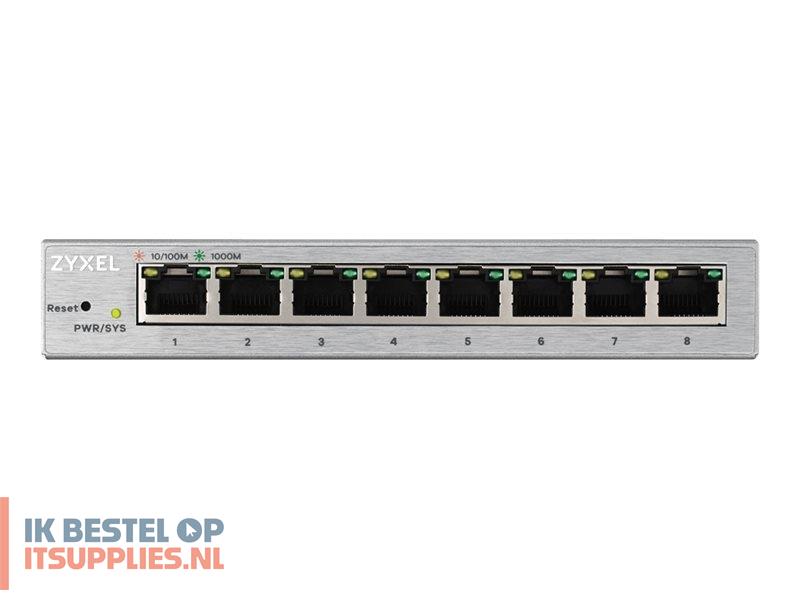

Switch - 8 ports - Managed
Performance
Switching capacity: 16 Gbps
Capacity
Multicast groups: 128
MAC Address Table Size
4K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
HTTP
Features
Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, firmware upgradable, wall mountable, Quality of Service (QoS), fanless, Energy Efficient Ethernet, loop prevention, 192KB packet buffer, Class of Service (CoS), tagged VLAN, metal housing, Link Aggregation, Weighted Round Robin (WRR), port-based QoS
Compliant Standards
IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Status Indicators
Port status, port transmission speed, power
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45
Power
Power Device
External power adapter
Power Consumption Operational
4.37 Watt
Miscellaneous
Compliant Standards
C-Tick, EMC, FCC, RoHS, EN 60950-1, LVD, EMC Class A, EMC Class B, BMSI
Dimensions & Weight
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% (non-condensing)
