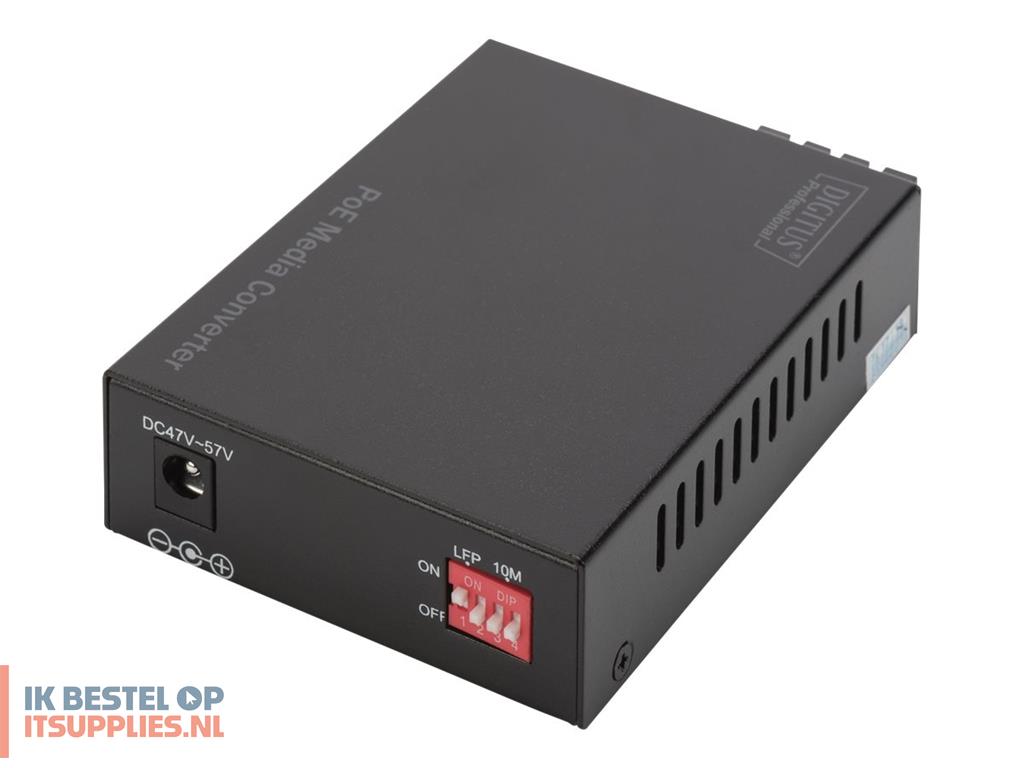

DIGITUS Gigabit PoE media converter, RJ45 / SC, SM, PSE

Productcode: DN-82160 | EAN/UPC: 4016032390039

€ 76,03 excl.btw

DIGITUS Professional DN-82160 - Fibre media converter - 1GbE - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T - SC single-mode / RJ-45 - up to 20 km - 1310 nm· PoE power supplier, PSE
· Sends data with high quality and additionally offers the highest level of failure safety
· A fast transfer in the gigabit range is guaranteed
· Range of up to 20km

Op voorraad: 116 stuk(s)

Levertijd:

Product:
DIGITUS Gigabit PoE media converter, RJ45 / SC, SM, PSE

€ 92,00 incl. 21% btw € 76,03excl. 21% btw

Winkelwagen Offerte

Omschrijving

DIGITUS Professional DN-82160 - Fibre media converter - 1GbE - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T - SC single-mode / RJ-45 - up to 20 km - 1310 nm

Product features

· PoE power supplier, PSE
· Compatible with the IEEE802.3af and IEEE802.3at standards
· PoE power supply via PIN 4/5 (V-) and PIN 7/8 (V+)
· Maximum total output of 30 watts
· Compatible with IEEE802.3, IEEE802.3u and IEEE802.3z standards
· Automatic cable recognition - Auto MDI/MDI-X function
· Auto recognition of full and half duplex
· Converts wire-based network signals into fiber optic signals
· 10/100/1000Base-TX to 1000Base-LX
· Ports: 1x RJ45, 1x SC duplex
· Range of up to 20km
· Wavelength: 1310nm
· Singlemode Dual Fiber
· Diagnostic LEDs for status and activity monitoring
· Power supply: 48~52V DC
· Operating temperature: -20°C - 65°C
· Storage temperature: -40°C - 85°C
· Dimensions (mm): 95(L) x 71(W) x 26(H)
· MTBF: 500,000 hours

Specificaties

General

Device Type

Fibre media converter

Form Factor

External

Networking

Connectivity Technology

Wired

Cabling Type

10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T

Data Link Protocol

10Mb LAN, 100Mb LAN, 1GbE

Data Transfer Rate

1 Gbps

Optical Wave Length

1310 nm

Max Transfer Distance

20 km

Status Indicators

Status, link/activity

Features

Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at

Expansion / Connectivity

Interfaces

1 x Ethernet 1000Base-LX - SC single-mode female x 2
1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 female

Miscellaneous

MTBF

500,000 hours

Power

Power Over Ethernet (PoE)

PoE

Power Device

External power adapter

Dimensions & Weight

Width

9.5 cm

Depth

7 cm

Height

2.6 cm

Environmental Parameters

Min Operating Temperature

-20 °C

Max Operating Temperature

65 °C

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
