General
Device Type

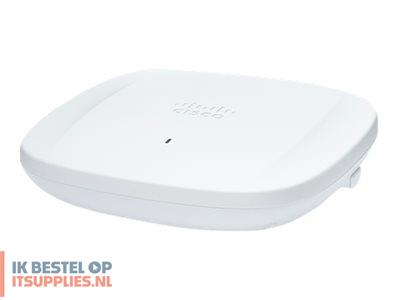

Radio access point
Processor / Memory / Storage
Networking
Connectivity Technology
Wireless
Data Transfer Rate
7.78 Gbps
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.1 LE, IEEE 802.11ax (Wi-Fi 6E)
Spread Spectrum Method
OFDMA
Remote Management Protocol
HTTP
Frequency Band
2.4 GHz, 5 GHz, 6 GHz
Features
DFS support, WLAN controller mode, LLDP support, Maximum Ratio Combining (MRC), universal power over Ethernet (UPOE), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, band steering, Tri-Band, Dynamic Frequency Selection (DFS), secure boot, 4x4:4 MU-MIMO technology, image signing, Cisco Trust Anchor module, BSS Coloring, Cisco Meraki compatible, Target Wake Time (TWT)
Encryption Algorithm
AES, PEAP, WPA2-Enterprise, EAP-SIM, WPA3-Enterprise, WPA3-Personal, EAP-FAST, WPA3-Enhanced Open, WPA2-Personal, EAP-TLS, EAP-TTLS, MSCHAPv2, EAP-GTC, PEAPv1
Authentication Method
MS-CHAP, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
Compliant Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6E
Aerial
Directivity
Omni-directional
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Communications Technology
Bluetooth Low Energy (LE)
Expansion / Connectivity
Interfaces
1 x 100M/1G/2.5/5 Gigabit Ethernet (UPOE) - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0
Miscellaneous
Compliant Standards
FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, UL Class III, CNS13438:2006, RSS-247, AS/NZS 2772.2, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016, RSP-100, RSS-GEN, EN 301 893 V2.1.1, AS/NZS 4268:2017, EN 300 328 V2.2.2, EN 50385:2017, 47 CFR Part 2.1091, QCVN 112:2017, Japan Std. 66, Japan Std. 71, EN 55032:2015/A11:2020, EN 61000-3-3:2013+A1:2019, IEC 61000-3-2:2019, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, EN 301 489-17 V3.2.4 (2020-09), EN 301 489-1 V2.2.3 (2019-11), KS C 9832, EN 62311:2020, KS X 3124:2020, KS X 3126:2020, EN 61000-6-1:2019, Draft EN 303 687 V0.0.14, EN55035:2017+A11:2020, AS/NZS 62368-1 Third Edition, CISPR 32:2015+AMD1:2019, AS/NZS CISPR32:2015+AMD1:2020, ICES-003 issue 7 Class B, KS C 9835:2019, LP002
Power
Power Over Ethernet (PoE) Supported
UPOE
Software / System Requirements
Software Included
Meraki Dashboard
OS Required
Cisco IOS XE 17.9.1 or later
Manufacturer Warranty
Service & Support
Limited warranty - advance hardware replacement - lifetime - response time: 5 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
