General
Device Type

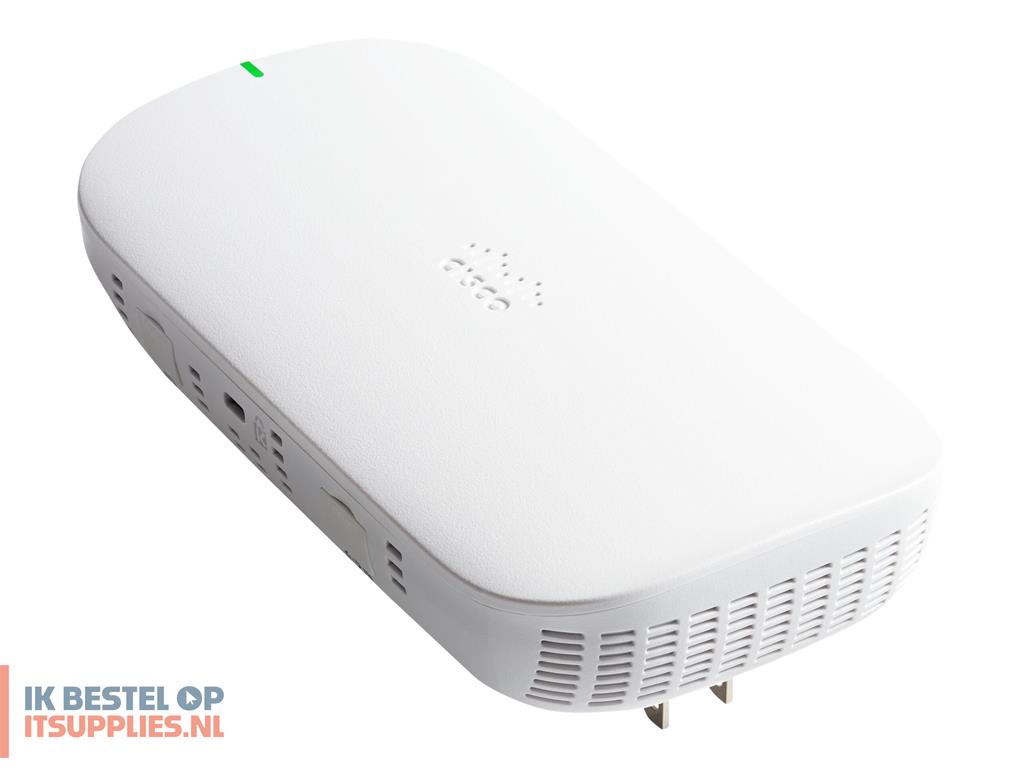

Wi-Fi range extender
Processor / Memory / Storage
Processors Installed
1 GHz
Networking
Connectivity Technology
Wireless
Data Transfer Rate
1.488 Gbps
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax
Spread Spectrum Method
OFDMA
Remote Management Protocol
HTTP, RADIUS
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (5 GHz): 1.2 Gbps
Capacity
VLANs supported: 16
Wireless clients per Wi-Fi radio: 200
Wireless clients: 400
Features
VLAN support, manageable, DFS support, wall mountable, Mesh networking, Wi-Fi Multimedia (WMM) support, Maximum Ratio Combining (MRC), 802.1x authentication, cyclic shift diversity (CSD), beamforming technology, Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), 2x2 MU-MIMO technology, security slot (Kensington security lock compatible), BSS Coloring, Target Wake Time (TWT)
Encryption Algorithm
AES, TLS, PEAP, TTLS, WPA, WPA2, WPA3, PEAPv1
Authentication Method
RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-TLS
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, IEEE 802.11ax
Aerial
Directivity
Omni-directional
Miscellaneous
Compliant Standards
ICES-003, FCC Part 15 B, FCC Part 15.247, RSS-102, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15.407, ARIB STD-T71, EN 300 328, EN 50385, FCC OET Bulletin 65c, EN 301 489-1, RSS-247, EN 62368-1, IEC 62368-1, EN 301 893, EN 55032, EN 55035, EMI Class B, EN 301 489-17, CAN/CSA C22.2 No. 60950-1, UL/CUL 62368-1, ARIB STD-66
Power
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
8.3 Watt
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
