General
Device Type

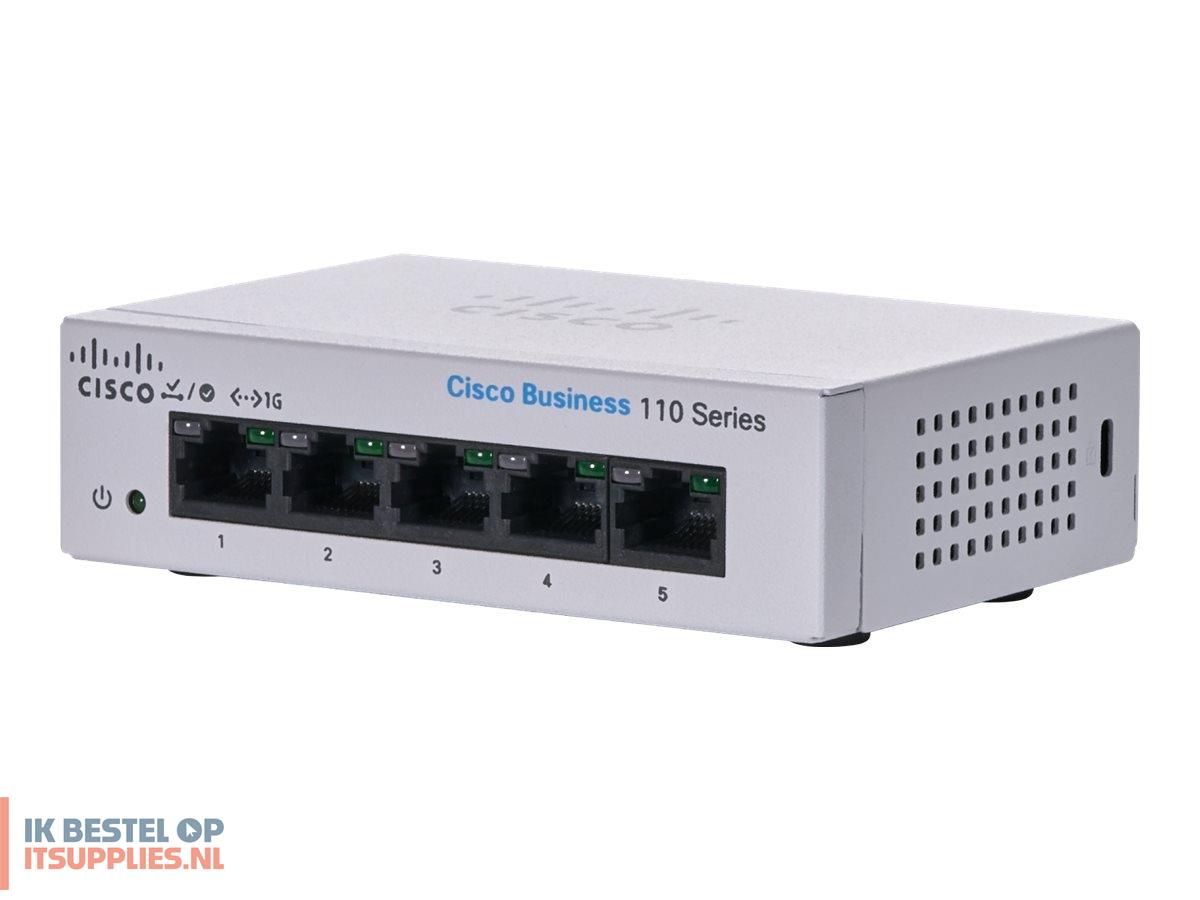

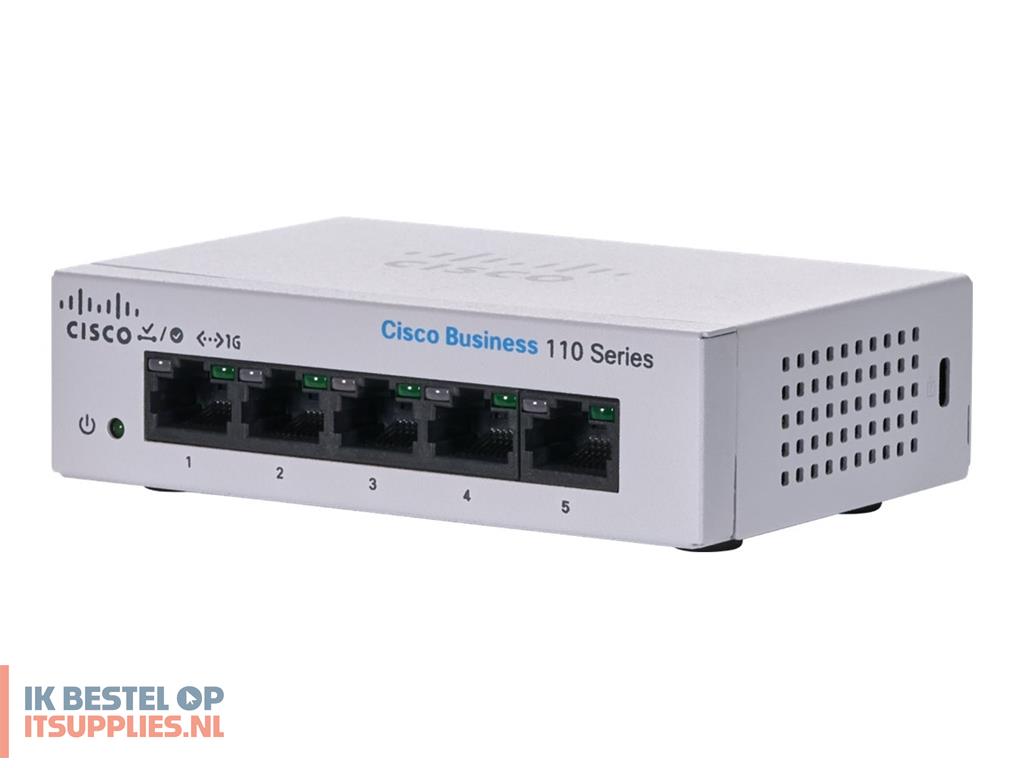

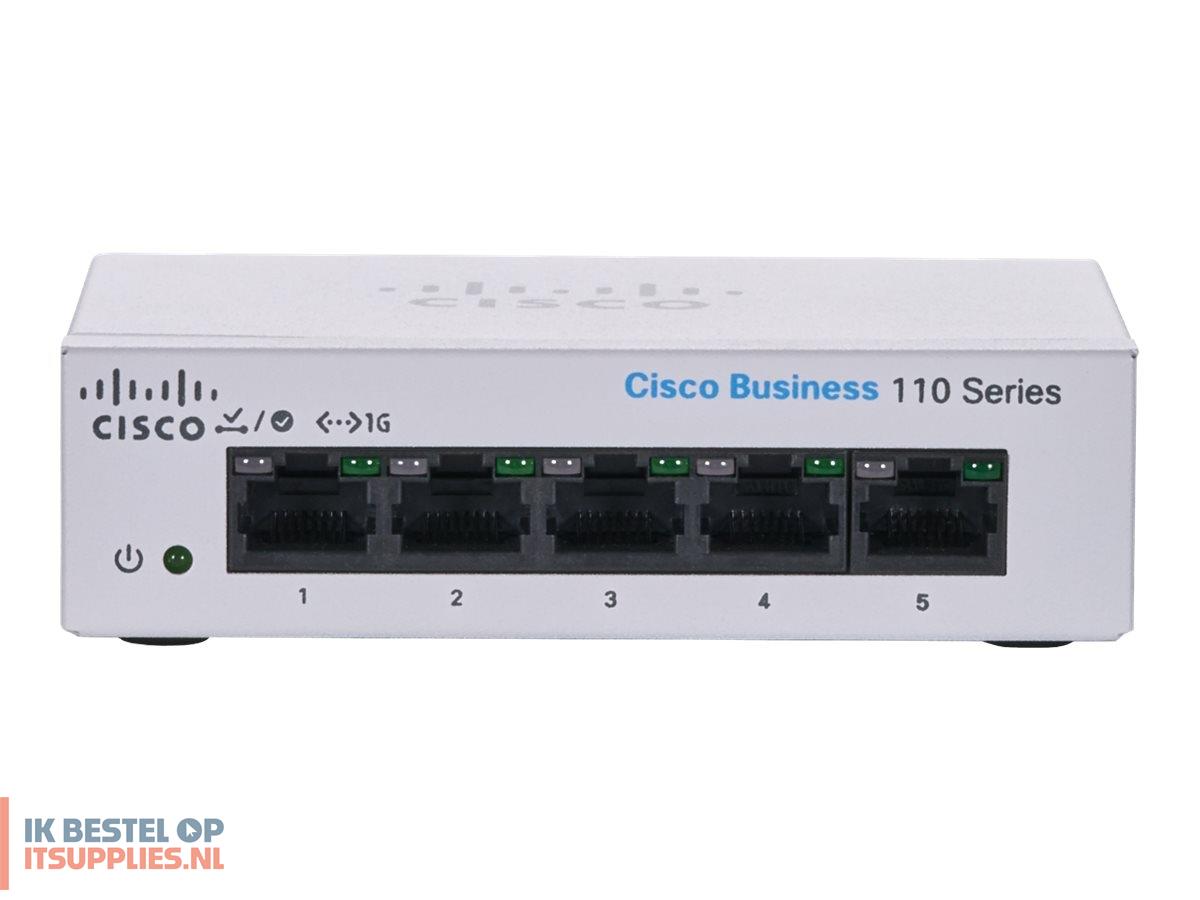

Switch - 5 ports - unmanaged
Enclosure Type
Desktop, rack-mountable, wall-mountable
Performance
Forwarding performance (64-byte packet size): 7.4 Mpps
Switching capacity: 10 Gbps
Capacity
Buffer capacity (MB): 1
MAC Address Table Size
2K entries
Jumbo Frame Support
9216 bytes
Features
Flow control, auto-uplink (auto MDI/MDI-X), QoS, Cable Diagnostics Function, fanless, Energy Efficient Ethernet, HOL blocking, WRR, loopback detection, security slot (Kensington security lock compatible)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Status Indicators
Power, link/activity
Expansion / Connectivity
Interfaces
5 x 10/100/1000 Base-T RJ-45
Power
Power Consumption Operational
2.74 Watt
Miscellaneous
Included Accessories
Mounting kit
Compliant Standards
FCC Class B certified, UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Localisation
United Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, Philippines, Korea, Russia, Switzerland, Turkey, European Economic Area
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Technical support - web support - 1 year
Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
