General
Device Type

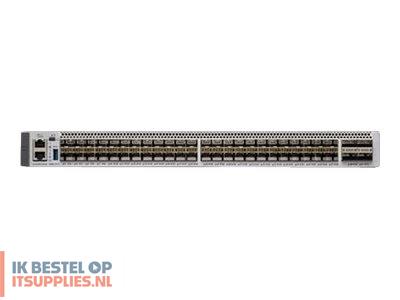

Switch - 48 ports - L3 - Managed
Enclosure Type
Rack-mountable 1U
Subtype
25 Gigabit Ethernet
Ports
48 x 25 Gigabit SFP28
Performance
Switching capacity (full duplex): 3.2 Tbps ¦ Forwarding rate: 1 Bpps
Capacity
Routing table entries: 80000 ¦ Indirect IPv4 routes: 212000 ¦ Host IPv4 routes: 90000 ¦ Indirect IPv6 routes: 212000 ¦ Host IPv6 routes: 90000 ¦ Multicast scale: 32000 ¦ QoS ACL scale: 16000 ¦ Security ACL scale: 270000 ¦ FNF entries: 96000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size
64K entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF
Encryption Algorithm
256-bit AES
Features
DHCP support, NAT support, PAT support, trunking, MPLS support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), MACsec support, Control plane protection (CoPP), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, CoAP support, Switched Port Analyzer (SPAN)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Expansion / Connectivity
Interfaces
48 x 25Gbit LAN SFP28 ¦ 4 x 100Gbit LAN ¦ 2 x USB 3.0
Power
Power Device
Internal power supply - hot-plug
Installed Qty
1 (installed) / 2 (max)
Power Redundancy Scheme
1+1
Voltage Required
AC 120/230 V (50 - 60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
Software Included
Cisco IOS XE 16.8.1
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
65 °C
Humidity Range Storage
5 - 95% (non-condensing)
