General
Device Type

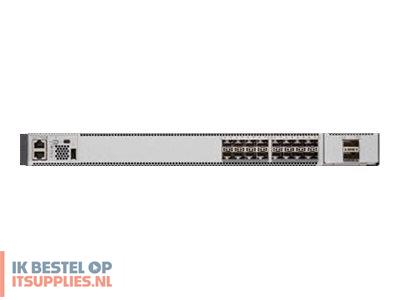

Switch - 16 ports - L3 - Managed
Enclosure Type
Rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
16 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
Performance
Switching capacity (full duplex): up to 480 Gbps
Forwarding rate: up to 360 Mpps
Capacity
Indirect IPv4 routes: 64000
Host IPv4 routes: 80000
Indirect IPv6 routes: 32000
Host IPv6 routes: 40000
Multicast scale: 16000
QoS ACL scale: 18000
Security ACL scale: 18000
FNF entries: 512000
VLAN IDs: 4000
Switched virtual interfaces (SVIs): 4000
MAC Address Table Size
64K entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF
Encryption Algorithm
256-bit AES
Features
DHCP support, NAT support, PAT support, trunking, MPLS support, IGMP snooping, Syslog support, IPv6 support, NSF, CBWFQ, WRED, STP support, VRRP support, QoS, NSR, Rapid PVST+, RSPAN, NetFlow, HSRP support, VRF, MLD, MSDP, integrated Wireshark, EoMPLS, H-VPLS, Private VLAN, L3VPN support, CoAP support, SPAN
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae
Expansion / Connectivity
Interfaces
16 x 10Gbit LAN RJ-45
2 x 10GBase-X SFP+
Power
Power Device
Internal power supply - hot-plug
Power Redundancy Scheme
1+1 (with optional power supply)
Voltage Required
AC 120/230 V (50 - 60 Hz)
Features
Front-to-rear airflow
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN 61000-4, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
Software Included
Cisco IOS Universal
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
65 °C
Humidity Range Storage
5 - 95% (non-condensing)
