General
Device Type

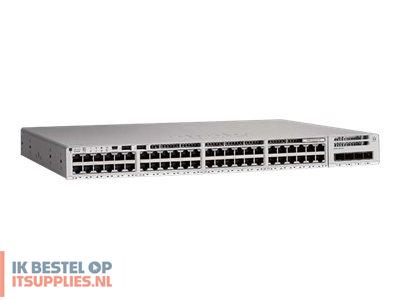

Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable
Ports
12 x 100/1000/2.5G/5G/10GBase-T + 36 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet
Power Over Ethernet (PoE)
PoE+
Performance
Stacking bandwidth: 80 Gbps
Switching capacity: 392 Gbps
Switching capacity with stacking: 472 Gbps
Forwarding rate: 291.66 Mpps
Capacity
Virtual networks: 1
IPv4 routes: 11000
IPv4 routing table entries: 3000
IPv6 routing table entries: 1500
Multicast scale: 1000
ACL scale entries: 1500
FNF entries: 16000
VLANs supported: 1024
Switched virtual interfaces (SVIs): 512
QoS hardware queues per port: 8
Packet buffer size: 6 MB
MAC Address Table Size
16000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm
128-bit AES
Features
ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, VRF, CoS, FNF, DSCP support, MACsec support, CoPP, VXLAN, LISP, SPAN, SGT caching, EEM, PIM, FHS, PVLAN support, CIR, Cisco StackWise-80 technology
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz
Expansion / Connectivity
Interfaces
12 x 100/1000/2.5G/5G/10GBase-T RJ-45
36 x 1000Base-T RJ-45 PoE+
4 x 10GBase-X uplink
1 x network stack device
1 x management (LAN) RJ-45
1 x console RJ-45
Power
Power Device
Internal power supply - hot-plug
Voltage Required
AC 100-240 V (50 - 60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
