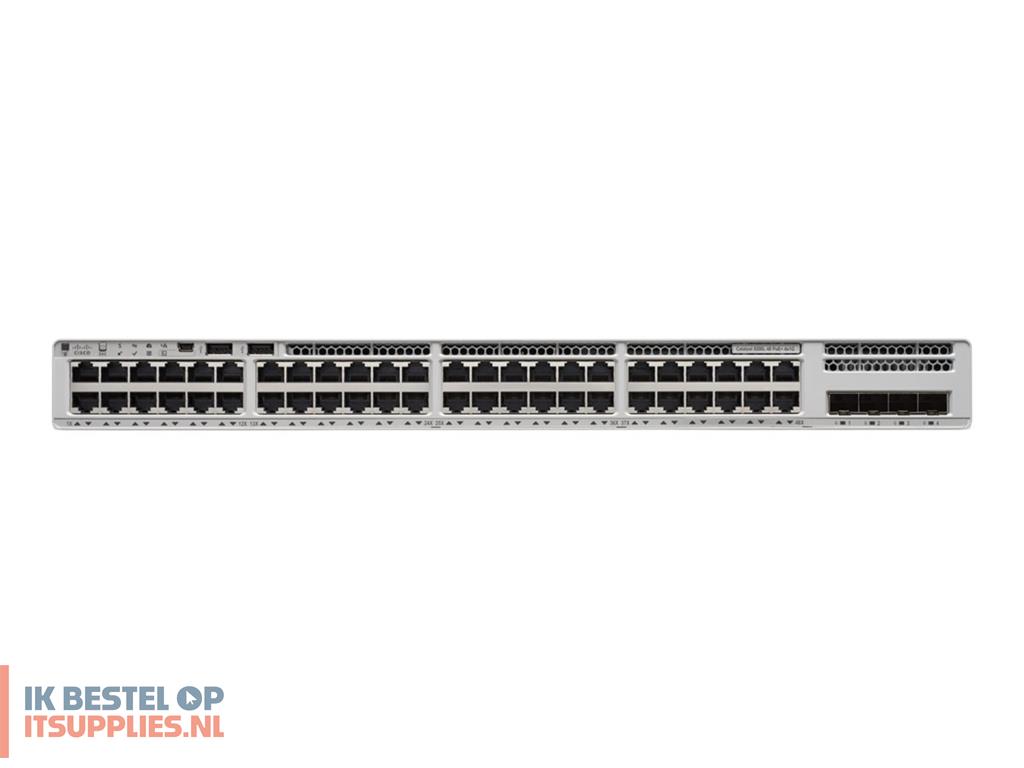

Cisco Catalyst 9200L - Network Essentials

Switch - 48 ports - L3 - stackable

Rack-mountable

Gigabit Ethernet

48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)

PoE+

1440 W

Stacking bandwidth: 80 Gbps
Switching capacity: 104 Gbps
Forwarding rate: 154.76 Mpps

Virtual networks: 1
IPv4 routes: 11000
IPv4 routing table entries: 3000
IPv6 routing table entries: 1500
Multicast scale: 1000
ACL scale entries: 1500
FNF entries: 16000
VLANs supported: 1024
Switched virtual interfaces (SVIs): 512
QoS hardware queues per port: 8

16000 entries

9198 bytes

OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

2 GB

4 GB

48 x 1000Base-T RJ-45 PoE+ - 30 W
4 x 1000Base-X SFP uplink
1 x network stack device
1 x management (LAN) RJ-45
1 x console RJ-45

Internal power supply - hot-plug

2

Optional

AC 100-240 V (50 - 60 Hz)

347,760 hours

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

44.5 cm

4.4 cm

28.8 cm

4.35 kg

Limited warranty - advance parts replacement - lifetime - response time: next business day

5 - 90% (non-condensing)

-40 °C

70 °C

5 - 90% (non-condensing)
