General
Device Type

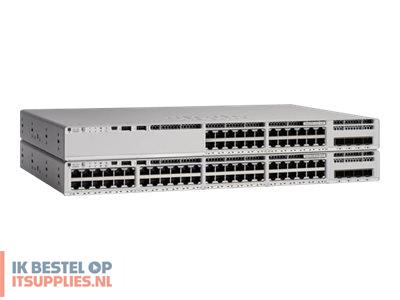

Switch - 24 ports - L3 - smart - stackable
Enclosure Type
Rack-mountable
Ports
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
Performance
Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 190.4 Mpps
Capacity
Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ ACL scale entries: 1600 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Remote Management Protocol
NETCONF, RESTCONF
Encryption Algorithm
128-bit AES
Features
Cisco StackWise Technology, Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), MACsec support, built-in ASIC, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Blue Beacon LED, Security Group Tag (SGT) caching, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, DNA support, Superior QoS
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
Expansion / Connectivity
Interfaces
24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10GBase-X SFP+
Power
Power Device
Internal power supply - hot-plug
Voltage Required
AC 100-240 V (50 - 60 Hz)
Miscellaneous
Compliant Standards
Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Software / System Requirements
Software Included
Cisco Network Advantage
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - lifetime - response time: next business day
Environmental Parameters
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
