General
Device Type

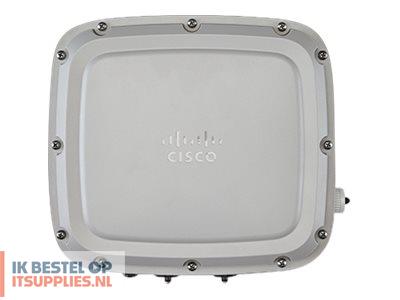

Radio access point
Localisation
Belgium, Jordan, Lebanon, Oman, Qatar, Saudi Arabia, United Arab Emirates, Albania, Bulgaria, Cameroon, Czech Republic, Estonia, Lithuania, Mongolia, Iceland, Romania, Sri Lanka, Luxembourg, Hungary, Cyprus, Iraq, Kenya, Nigeria, Uganda, Tanzania, Trinidad, Jamaica, Algeria, Gabon, Liechtenstein, Gibraltar, Malta, Morocco, Monaco, Croatia, Macedonia, Slovakia, Slovenia, Latvia, Libya, Burundi, Namibia, Mauritius, Austria, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Poland, Portugal, Spain, Sweden, Switzerland, United Kingdom, Greece, Turkey, Ireland, Bahamas, Serbia, Montenegro, Bosnia and Herzegovina
Networking
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Spread Spectrum Method
OFDMA
Frequency Band
2.4 GHz, 5 GHz
Features
DFS support, Wi-Fi Multimedia (WMM) support, Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), 802.1x authentication, cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, 4x4 MU-MIMO technology, secure boot, Target Wait Time (TWT), image signing, Cisco Trust Anchor module, BSS Coloring, 4K/8K UHD video streaming
Encryption Algorithm
AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2, EAP-SIM, WPA3, WPA3-Enterprise, EAP-FAST, EAP-TLS, EAP-TTLS, EAP-GTC
Authentication Method
MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-TLS, EAP-TTLS
Compliant Standards
IEEE 802.3, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.3ae, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n (draft 2.0), IEEE 802.11k, IEEE 802.3at, IEEE 802.15.4, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, IEEE 802.15.1, Wi-Fi CERTIFIED 6
Aerial
Directivity
Omni-directional
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Communications Technology
Bluetooth Low Energy (LE)
Expansion / Connectivity
Interfaces
1 x 1/2.5GBase-T - RJ-45
1 x 1000Base-X - SFP
1 x 1000Base-T - RJ-45
1 x management - RJ-45
Miscellaneous
Compliant Standards
EN55024, AS/NZS 60950-1, RSS-102, UL 60950-1, IEC 60950-1, EN 60950-1, FCC CFR47 Part 15 B, IP67, IP66, SRRC, CNS 13438, IEC 60950-22, EN 60950-22, UL 60950-22, CISPR 24:2010, IEC 60529, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, EN 62368-1, IEC 62368-1, NEMA 250-2008, EN 60068-2-5, FCC Subpart C 15.247, CAN/CSA-C22.2 No. 62368-1, EN 300 328 V2.1.1, UL 62368-1, TCVN 7317, ICES-003:2016 issue 6 Class B, VCCI-CISPR 32:2016, ETSI EN 301 489-17 V3.1.1 (2017-02), AS/NZS 2772, CISPR 32:2015, ARPANSA, CAN/CSA C22.2 No. 60950-22, EN 55035:2017, KN 61000-3-2, KN 61000-3-3, KN 489-1, KN 489-17, RSP-100, RSS-GEN, KN35:2015, EN 301 893 V2.1.1, FCC Subpart C 15.407, AS/NZS 4268:2017, EN 50385:2017, AS/NZS 62368.1, QCVN 118:2018, CAN/CSA C22.2 No. 60950-1, EN 61000-3-2:2019, 47 CFR Part 1.1310, 47 CFR Part 2.1091, QCVN 112:2017, Japan Std. 33a, Japan Std. 66, Japan Std. 71, QCVN 18:2014, ETSI EN 301 489-1 V2.2.3 (2019-11), EN 55032:2015/A11:2020, EN 61000-3-3:2013+A1:2019, MIL-STD-810G 514.4
Power
Power Over Ethernet (PoE) Supported
UPOE
Software / System Requirements
Software Included
Cisco Embedded Wireless Controller software image
Manufacturer Warranty
Service & Support
Limited warranty - advance hardware replacement - lifetime - response time: 10 days
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
65 °C
Humidity Range Operating
0 - 100%
