General
Device Type

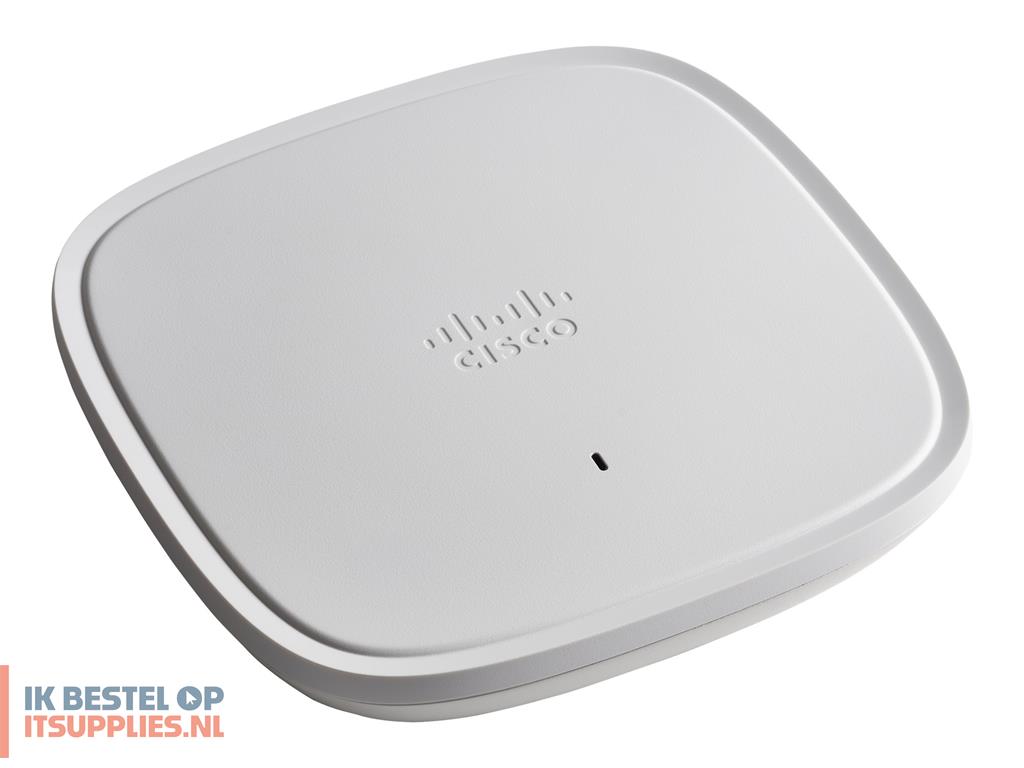

Radio access point
Localisation
Belgium, Jordan, Lebanon, Qatar, Albania, Bulgaria, Czech Republic, Estonia, Lithuania, Mongolia, Iceland, Romania, Sri Lanka, Luxembourg, Hungary, Cyprus, Iraq, Trinidad, Jamaica, Algeria, Liechtenstein, Gibraltar, Malta, Morocco, Monaco, Croatia, Macedonia, Slovakia, Slovenia, Latvia, Libya, Mauritius, Austria, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Poland, Portugal, Spain, Sweden, Switzerland, United Kingdom, Greece, Turkey, Ireland, Bahamas, Serbia, Montenegro, Bosnia and Herzegovina
Processor / Memory / Storage
Networking
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Network / Transport Protocol
IPSec, IPv6
Remote Management Protocol
NETCONF, RESTCONF
Frequency Band
2.4 GHz, 5 GHz
Features
DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Pre-Shared Key (PSK), Dynamic QoS, guest access, 4x4 MU-MIMO technology, secure boot, 8x8 MU-MIMO technology, Target Wait Time (TWT), image signing, Cisco Trust Anchor module
Encryption Algorithm
AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST
Authentication Method
MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
Compliant Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Aerial
Directivity
Omni-directional
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Communications Technology
Bluetooth Low Energy (LE)
Expansion / Connectivity
Interfaces
1 x 1/2.5GBase-T - RJ-45
1 x management - RJ-45
1 x USB 2.0
Miscellaneous
Included Accessories
Low profile bracket, ceiling grid clip
Compliant Standards
CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, EN 60601-1-1, EN 301 489-1, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, USGv6, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, EMI Class B, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN
Power
Power Over Ethernet (PoE) Supported
UPOE
Software / System Requirements
Software Included
CAPWAP Software Image
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
