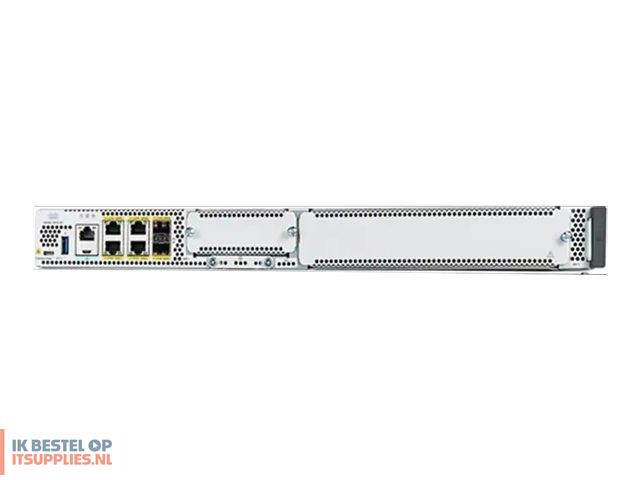

Cisco Catalyst 8300-1N1S-6T - Router 1GbE

Productcode: C8300-1N1S-6T | EAN/UPC: 0889728309486

€ 4.560,05 excl.btw

Cisco Catalyst 8300-1N1S-6T - Router 1GbE - rack-mountable - for P/N: C8300-DNA

Accelerated services with Cisco software-defined WAN
Application performance optimization
Multi-layer security
Unified communications
Cloud-native agility with a programmable software architecture
5G-ready platform

Op voorraad: 9 stuk(s)

Levertijd:

Product:
Cisco Catalyst 8300-1N1S-6T - Router 1GbE

€ 5517,66 incl. 21% btw € 4560,05excl. 21% btw

Winkelwagen Offerte

Omschrijving

Cisco Catalyst 8300-1N1S-6T - Router 1GbE - rack-mountable - for P/N: C8300-DNA

Product features

Accelerated services with Cisco software-defined WAN
Cisco SD-WAN is a set of intelligent software services that allow you to connect users, devices, and branch office locations reliably and securely across a diverse set of WAN transport links. Cisco Catalyst 8300 series edge platforms can dynamically route traffic across the "best" link based on up-to-the-minute application and network conditions for great application experiences. You get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links - control you need as your branches conduct greater volumes of mission-critical business with both on-premises and cloud controllers.
Application performance optimization
Ensure that SD-WAN networks meet SLAs and maintain strong performance, even if network problems occur. With branch multi-cloud access, you can accelerate your SaaS applications with a simple template push from the SD-WAN controller. Features like TCP optimization, forward error correction, and packet duplication help application performance for a better user experience.
Multi-layer security
You can move your traditional and complex WAN networks to a more agile software-defined WAN with integrated security. The Cisco Catalyst 8300 series edge platforms connect branch offices to the Internet and cloud, with superior protection against major web attacks. Secure direct Internet access (DIA) to the branches helps optimize branch workloads for improved performance, specifically for cloud-hosted applications. At the same time, DIA ensures your branch is protected from external threats.
Unified communications
The Cisco Catalyst 8300 edge platforms offer rich voice services. In SD-WAN mode, the Catalyst 8300 series prevents internal and external outages using SRST enabling branch router to assume role of call control PBX for telephony survivability.
Cloud-native agility with a programmable software architecture
Cisco continues to offer a feature-rich routing stack on the Cisco Catalyst 8300 series edge platforms. IP routing, IPSec, QoS, firewall, network-based application recognition (NBAR), and many other features are part of Cisco's programmable software architecture with API support and a wide variety of protocols and configurations.
5G-ready platform
The Cisco Catalyst 8300 series edge platforms are built for future 5G networks. With higher throughputs with CAT18 LTE and 5G, WAN networks are looking at wireless WAN as primary transports for different use cases. These platforms will support both integrated pluggable modules as well as external cellular gateway modules with LTE/5G capability for improved throughputs that address all of those use cases. Based on a specific branch's direct line of sight and cellular coverage, either integrated or external gateway can be chosen for that particular situation.

Specificaties

General

Device Type

Router

Enclosure Type

Rack-mountable - 1U

Connectivity Technology

Wired

Data Link Protocol

Gigabit Ethernet

Performance

VPN throughput (IMIX IPSec): 5 Gbps
VPN throughput (1400 B IPSec): 1.9 Gbps
IPv4 forwarding throughput (1400-byte packet size): 19.7 Gbps

Capacity

Maximum overlay tunnels: 6000
ACL: 4000
Access Control Entries (ACEs) per system (IPv4): 72000
IPv4 routes: 1600000
IPv6 routes: 1500000
Queues: 16000
NAT sessions: 1200000
Firewall sessions: 512000
Virtual Routing and Forwarding (VRF) entries: 4000

Network / Transport Protocol

IPSec, NTP, DNS, DHCP, RSVP, RTCP, PPPoE, L2TPv3

Routing Protocol

Policy-based routing (PBR), GRE, OSPF, BGP, VRRP, MPLS, OSPFv3, RIP, RIP-2, EIGRP, IS-IS, IGMPv3, HSRP, DVMRP, Bidirectional Forwarding Detection (BFD)

Remote Management Protocol

OMP, SNMP, SCP

Encryption Algorithm

PKI, 256-bit AES-CBC, 256-bit AES-GCM, IKE, 2048-bit RSA, ECDSA 256-bit, ECDSA 384-bit, ESP, HMAC, SHA-1, SHA-2, TLS, DES, 1024-bit RSA, 128-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, MD5, Triple DES

Authentication Method

Secure Shell (SSH), RADIUS

Features

URL filtering, AAA, QoS, CoS, FEC, HQoS, WRED, FNF, NBAR, AAR, DTLS, DHCP client, DHCP server, Syslog support, NAT support, PAT support, ACL support, BFD, CAC, IVR, SAF, CBWFQ, HDLC, MLFR, MLPPP, PPP, PIM, SSM, ERSPAN, Cisco IPSLA, EEM, EVC, AVC

Compliant Standards

IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3ah, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, IEC/EN 60825, FDA, AS/NZS CISPR 32 Class A, CISPR 32 Class A, CNS 13438 Class A, EN 300 386, EN 55032, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, KN32 Class A, KN35

Processor

Intel

RAM

8 GB

Flash Memory

8 GB

Hard Drive

16 GB

IP Telephony

VoIP Protocols

SRTP

Expansion / Connectivity

Interfaces

WAN / LAN: 6 x Ethernet 1000
USB: 1 x

Expansion Slots

1 (total) / 1 (free) x service module (SM)
1 (total) / 1 (free) x NIM

Installed Modules Qty (Max)

0 (installed) / 2 (max)

Power

Power Device

Internal power supply

Installed Qty

1 (max)

Miscellaneous

MTBF

536,060 hours

Software / System Requirements

OS Required

Cisco IOS XE 17.3.2

Dimensions & Weight

Width

44.5 cm

Depth

41.3 cm

Height

4.39 cm

Weight

9.07 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

5 - 85% (non-condensing)

Compatibility Information

Designed For

P/N: C8300-DNA

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
