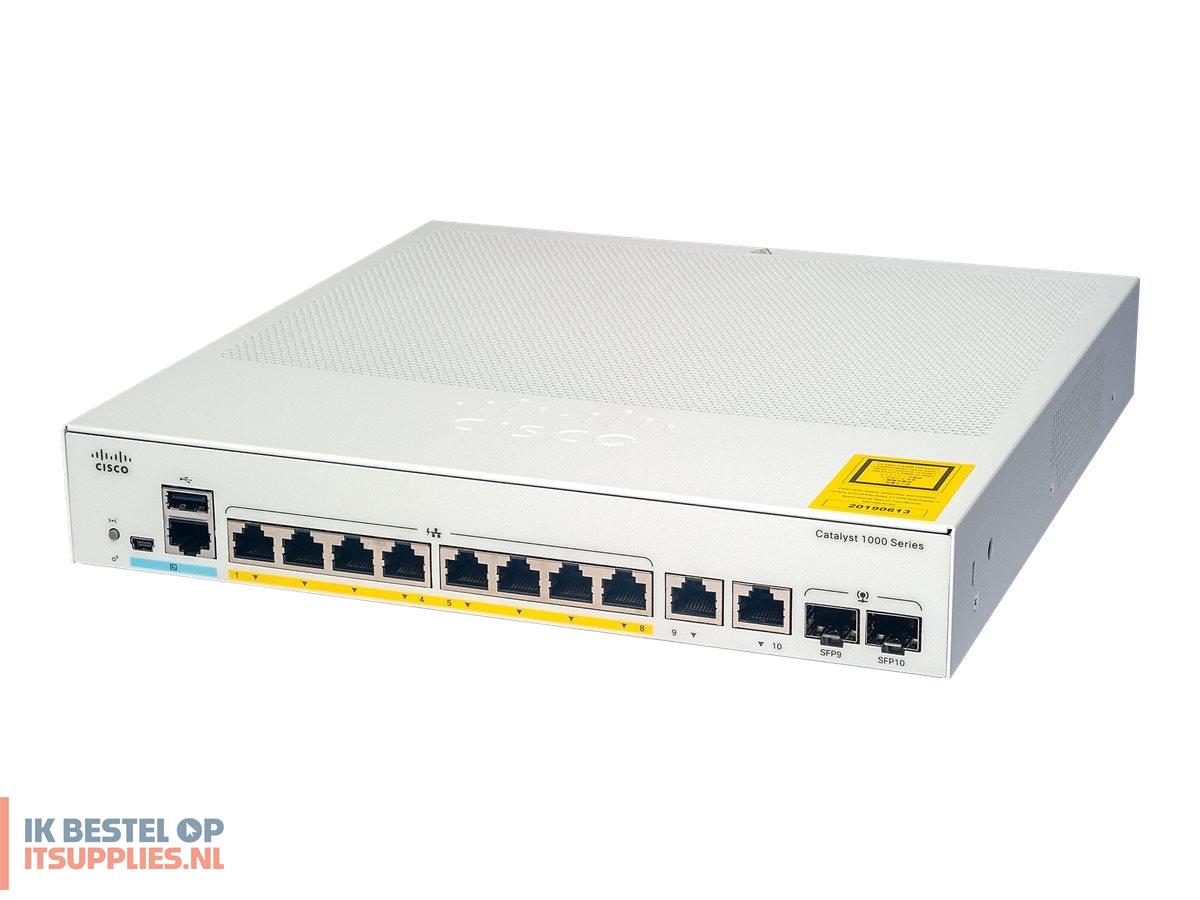

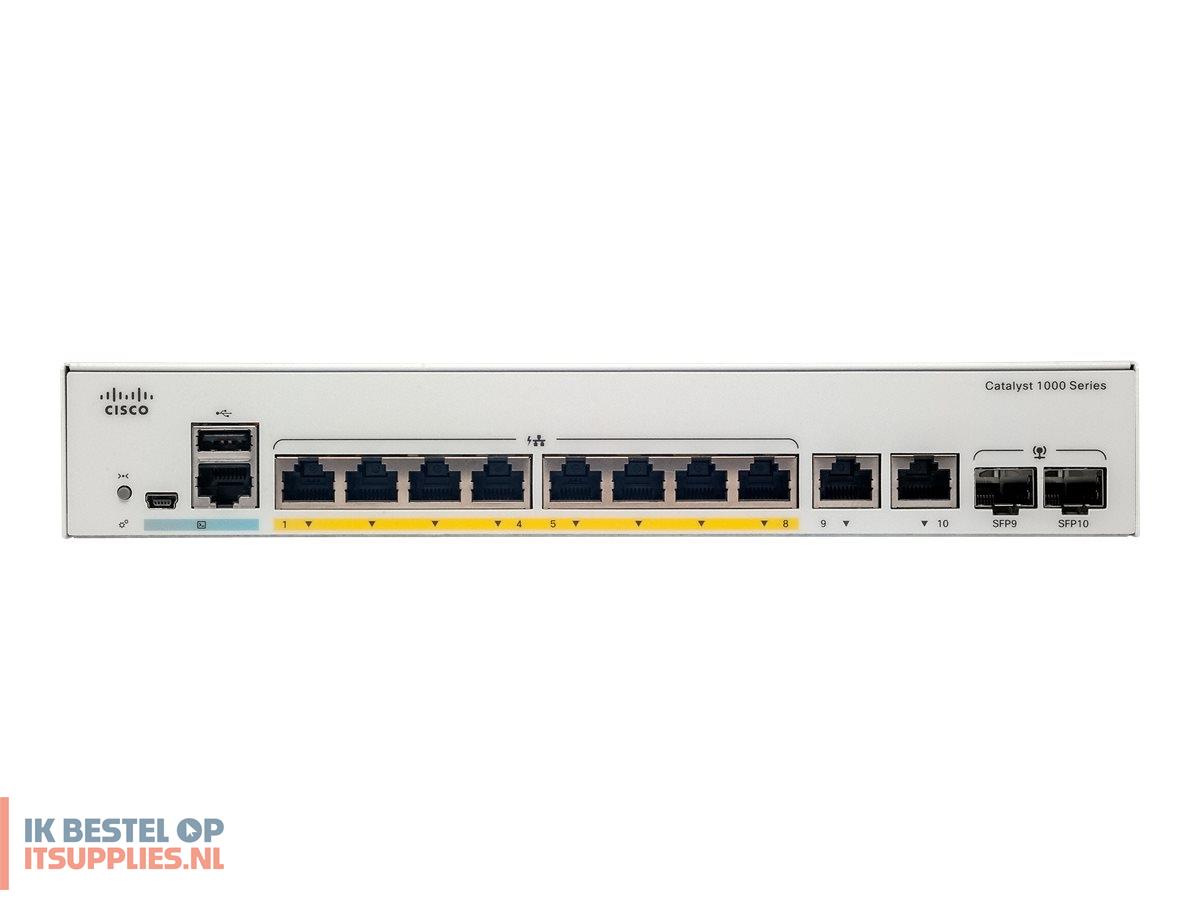

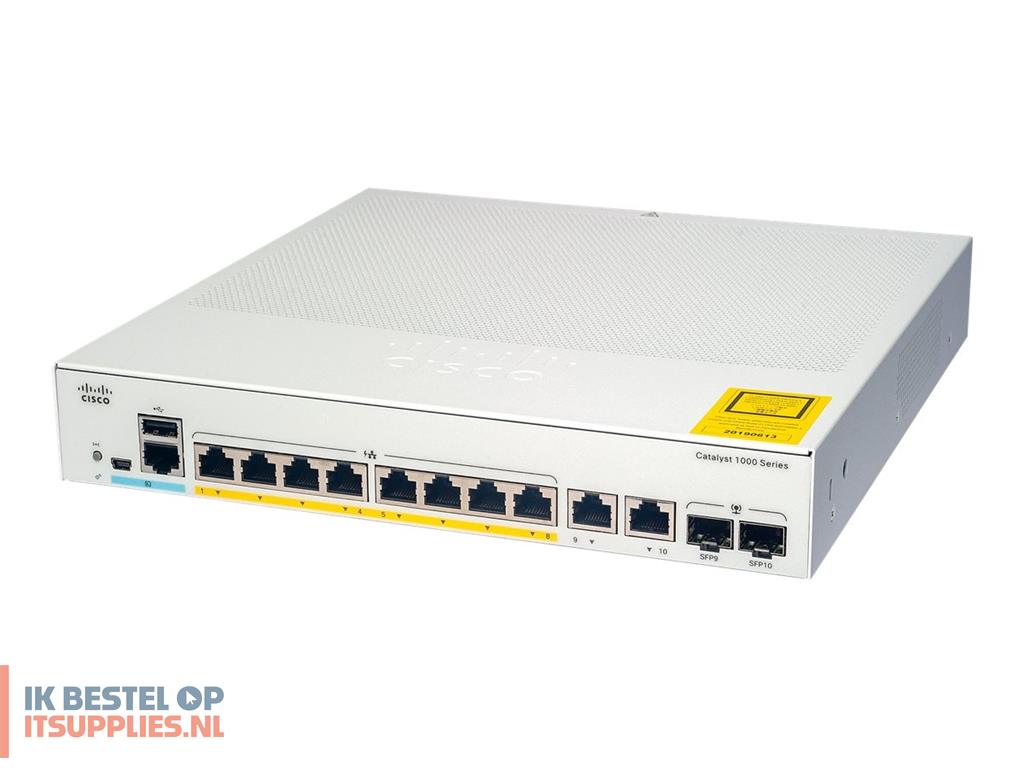

Cisco Catalyst 1000-8P-2G-L - Switch

Switch - 8 ports - Managed

Rack-mountable

Gigabit Ethernet

4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 + 2 x combo Gigabit SFP (uplink)

PoE+

67 W

Forwarding bandwidth: 10 Gbps
Switching bandwidth: 20 Gbps
Forwarding rate (64-byte L3 packets): 14.88 Mpps

Unicast MAC addresses: 15360
IPv4 unicast direct routes: 542
IPv4 unicast indirect routes: 256
IPv6 unicast direct routes: 414
IPv6 unicast indirect routes: 128
IPv4 routes (static): 16
IPv6 routes (static): 16
IPv4 routes (Multicast): 1024
IPv6 groups (Multicast): 1024
IPv4/MAC security ACEs: 600
IPv6 security ACEs: 600
Active VLANs: 256
VLAN IDs: 4094
STP instances: 64
SPAN sessions: 4
MTU-L3 packet: 9198 byte

10240 bytes

IGMP, MLDv2, MLD, MSTP, RSTP, STP

SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS

Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX

X ARM: 800 MHz

512 MB

256 MB

Status

4 x 1000Base-T RJ-45 PoE+ - 15 W
4 x 1000Base-T RJ-45
2 x 1000Base-T / 1000Base-X RJ-45/SFP uplink
1 x management RJ-45
1 x mini-USB Type B
1 x USB Type A

Internal power supply

1

AC 120/230 V (50 - 60 Hz)

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A

26.8 cm

32.3 cm

4.39 cm

Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days

-5 °C

50 °C

5 - 90%

-25 °C

70 °C

5 - 95%
