General
Device Type

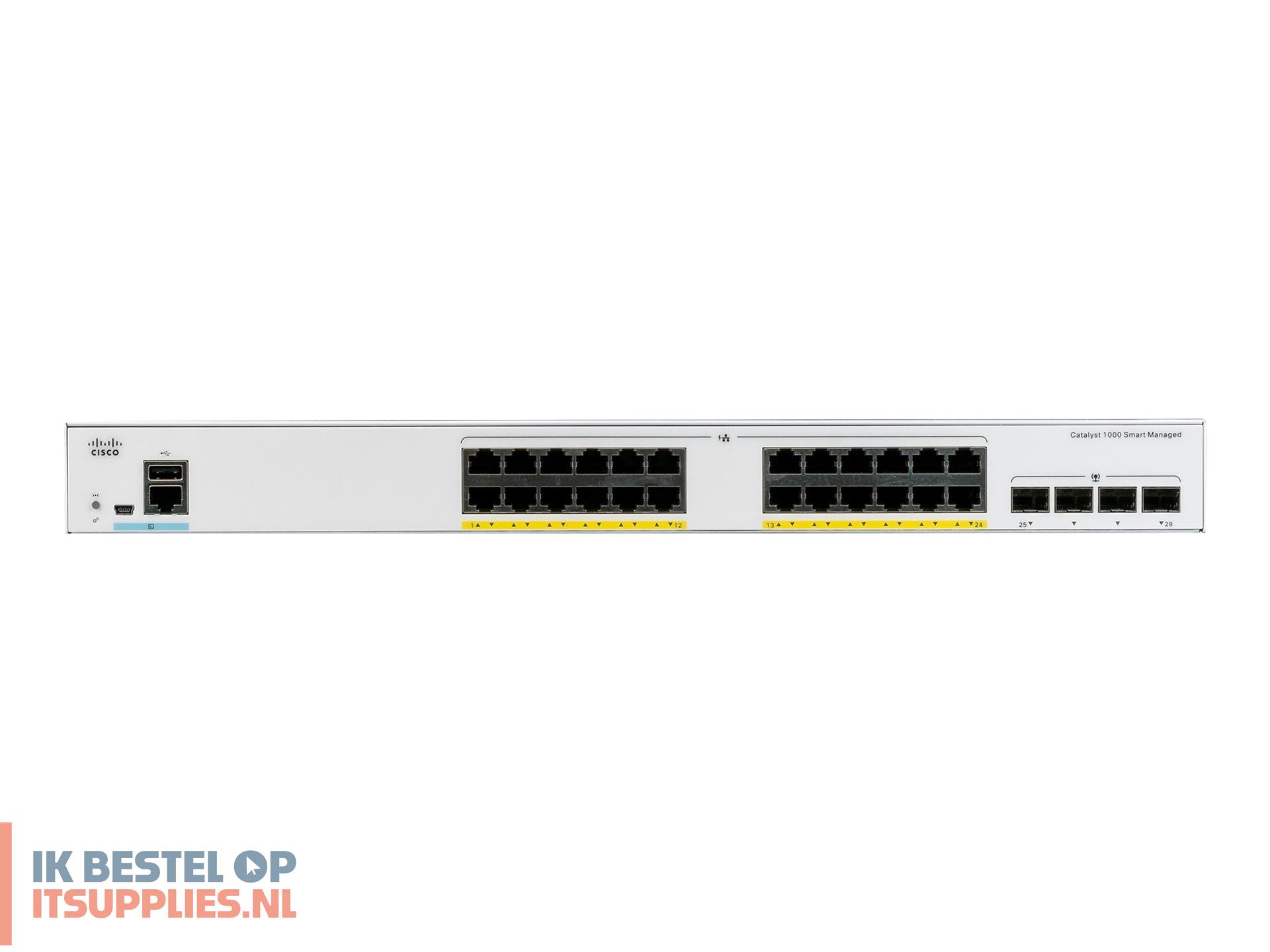

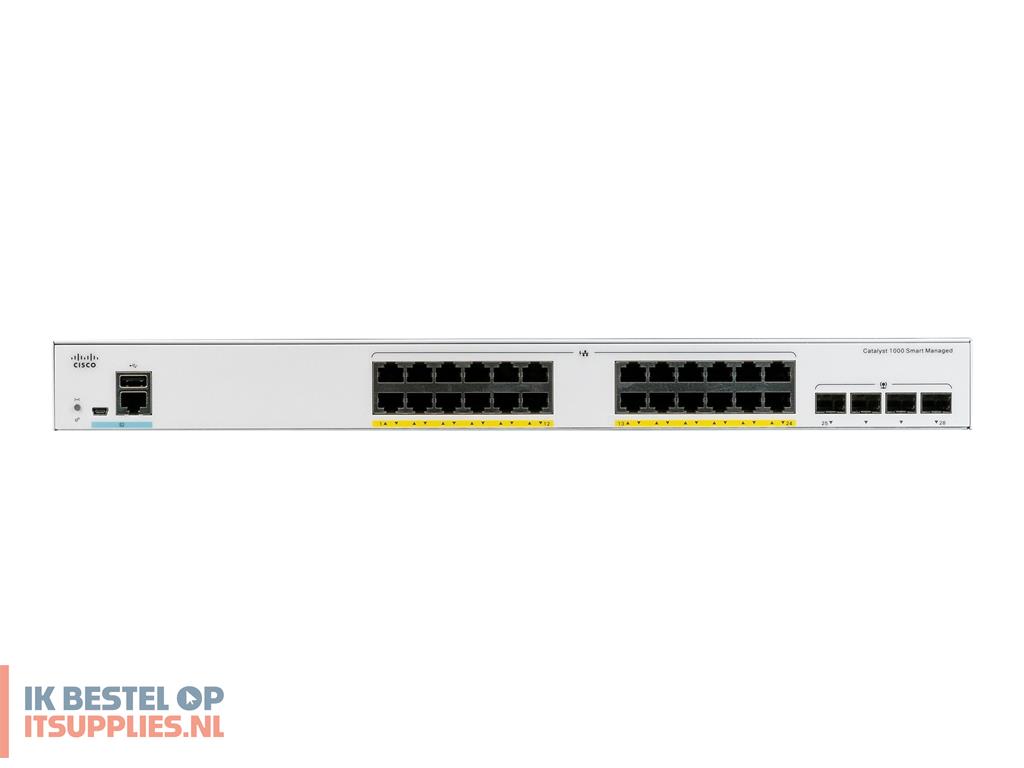

Switch - 24 ports - Managed
Enclosure Type
Rack-mountable
Ports
24 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
Performance
Forwarding bandwidth: 64 Gbps
Switching bandwidth: 128 Gbps
Forwarding rate (64-byte L3 packets): 41.67 Mpps
Capacity
Unicast MAC addresses: 15360
IPv4 unicast direct routes: 542
IPv4 unicast indirect routes: 256
IPv6 unicast direct routes: 414
IPv6 unicast indirect routes: 128
IPv4 routes (static): 16
IPv6 routes (static): 16
IPv4 routes (Multicast): 1024
IPv6 groups (Multicast): 1024
IPv4/MAC security ACEs: 600
IPv6 security ACEs: 600
Active VLANs: 256
VLAN IDs: 4094
STP instances: 64
SPAN sessions: 4
MTU-L3 packet: 9198 byte
Jumbo Frame Support
10240 bytes
Routing Protocol
IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Expansion / Connectivity
Interfaces
24 x 1000Base-T RJ-45
4 x 10GBase-X SFP+ uplink
1 x management RJ-45
1 x mini-USB Type B
1 x USB Type A
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50 - 60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 90%
Min Storage Temperature
-25 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95%
