General
Device Type

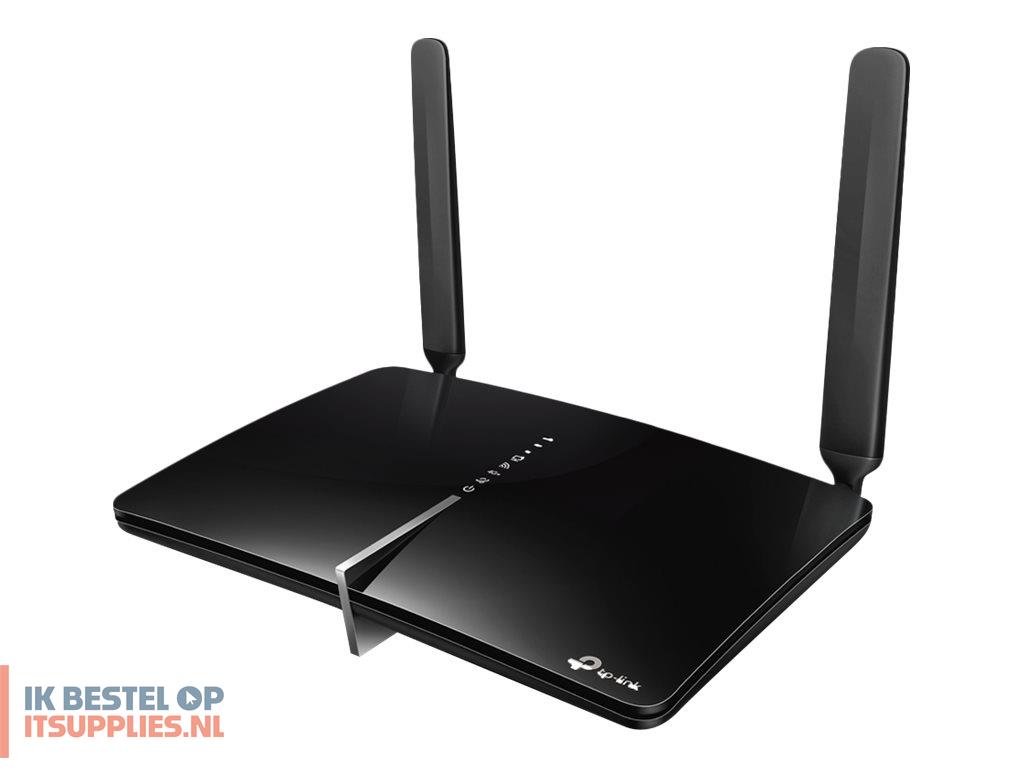

Wireless router - 3-port switch (integrated)
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequency Band
2.4 GHz / 5 GHz
Data Transfer Rate
1.2 Gbps
Network / Transport Protocol
TCP/IP, PPTP, L2TP, IPSec, PPPoE, DHCP
Routing Protocol
Static IP routing
Encryption Algorithm
128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK
Features
DoS attack prevention, IPv6 support, parental control, IP address filtering, port forwarding, bandwidth control, IPv4 support, domain filter
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, RoHS
Communications
Type
Wireless cellular modem
Mobile Communication Protocol
UMTS, HSPA, DC-HSPA+, FDD LTE, TDD LTE
Expansion / Connectivity
Interfaces
WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots
1 (total) / 1 (free) x Micro-SIM
Aerial
Aerial
External detachable
Power
Power Device
External power adapter
Miscellaneous
Cables Included
1 x network cable
Software / System Requirements
OS Required
UNIX, Apple MacOS, Novell NetWare, Linux, Windows 8.1 / 10, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
