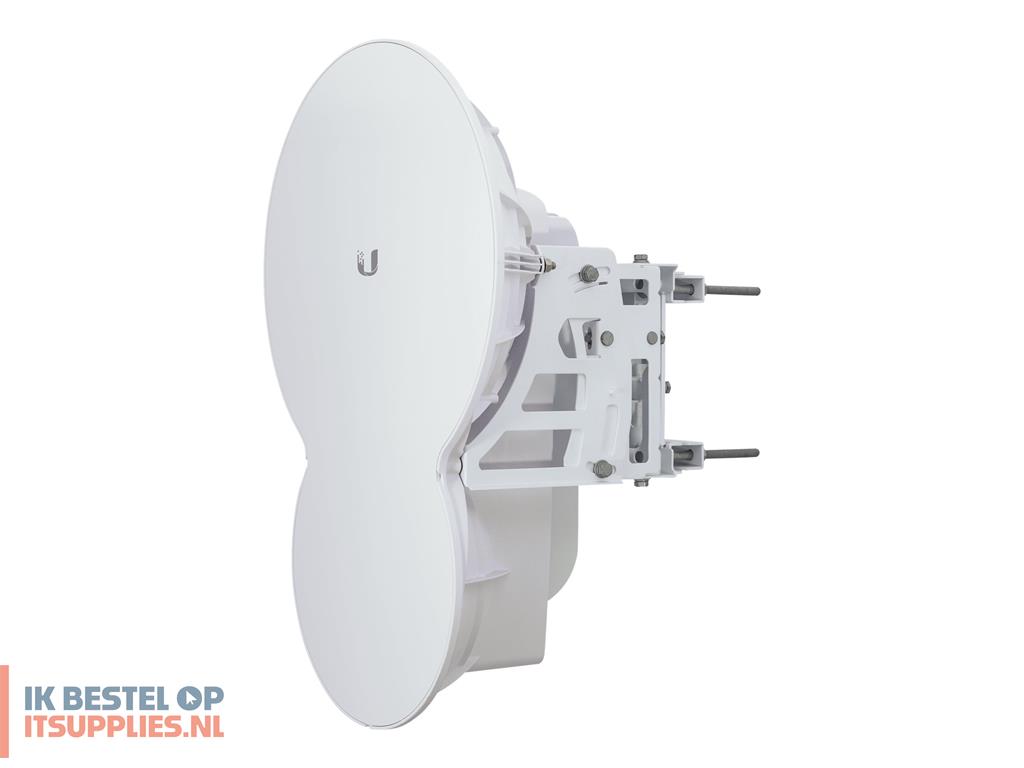

Ubiquiti airFiber AF24 - Wireless bridge

Productcode: AF-24 | EAN/UPC: 0810354022043

€ 1.365,82 excl.btw

Ubiquiti airFiber AF24 - Wireless bridge - AirFiber

Spectral efficiency breakthrough
Innovative design, rf agility
Powerful multi-mode duplexing
Line-rate packet processing
Clean power output
20 Gbps aggregate performance

Op voorraad: 4 stuk(s)

Levertijd:

Product:
Ubiquiti airFiber AF24 - Wireless bridge

€ 1652,64 incl. 21% btw € 1365,82excl. 21% btw

Winkelwagen Offerte

Omschrijving

Ubiquiti airFiber AF24 - Wireless bridge - AirFiber

Product features

Spectral efficiency breakthrough
The airFiber implements the most efficient use of unlicensed-band spectrum - a vital attribute in increasingly crowded RF environments. By employing a unique dual-antenna design and proprietary self-interference cancellation algorithms, airFiber extracts more usable channels out of the available spectrum than any other comparable radio system. airFiber's built-in configuration tool guides the selection of RF channel bandwidths, transmit power, and other parameters to minimize interference potential and optimize link budgets.
Innovative design, rf agility
The airFiber provides unparalleled flexibility, allowing independently selectable, asymmetric TX/RX channel bandwidths and selectable TX/RX frequencies wherever spectrum is available and without being locked into predetermined FDD channel pairs. Split-frequency TDD operation facilitates maximum versatility in avoiding interference in today's crowded bands. Channel width flexibility allows you to independently configure TX and RX channel widths (10/20/30/40/50 MHz) and place them anywhere within the radio band to suit your link.
Powerful multi-mode duplexing
The airFiber supports all duplexing modes: TDD, FDD, and Ubiquiti's patented HDD - no other radio system provides this level of flexibility. Ubiquiti's proprietary protocol enables time-synchronous packet transmission, resulting in the lowest possible, sub-millisecond latency - vital for backhaul performance.
Line-rate packet processing
Ubiquiti's custom silicon, the proprietary INVICTUS core communications processing engine, powers airFiber to process 2+ million packets per second.
Clean power output
Using digital pre-distortion compensation and multi-IFFT processing, airFiber delivers the cleanest output spectrum for unlicensed-band radio systems. This reduces the potential impact on the RF noise environment and allows for the use of higher-order modulation, such as 1024QAM.
20 Gbps aggregate performance
airFiber operates as a high-performance wireless backhaul; its GPS-synchronized framing support enables up to 20 Gbps of aggregate throughput for thousands of base stations.

Specificaties

General

Device Type

Wireless bridge

Width

64.9 cm

Depth

30.3 cm

Height

42.6 cm

Weight

10.5 kg

Networking

Form Factor

External

Connectivity Technology

Wireless

Data Transfer Rate

1.4 Gbps

Line Coding Format

64 QAM, QPSK, 16 QAM

Data Link Protocol

AirFiber

Frequency Band

24 GHz

Max Range Open Space

13 km

Status Indicators

Port transmission speed, power, link/activity

Features

Pole mountable, GPS sync compatible

Encryption Algorithm

128-bit AES

Aerial

Gain Level

38 dBi

Expansion / Connectivity

Interfaces

1 x 1000Base-T (PoE) - RJ-45
1 x management - RJ-45

Miscellaneous

Included Accessories

PoE injector, pole mount

Compliant Standards

IC, FCC

Power

Power Over Ethernet (PoE) Supported

PoE

Power Consumption Operational

50 Watt

Software / System Requirements

OS Provided

AirOS

Manufacturer Warranty

Service & Support

Limited warranty - parts and labour - 1 year

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

55 °C

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Manufacturer's data sheet
