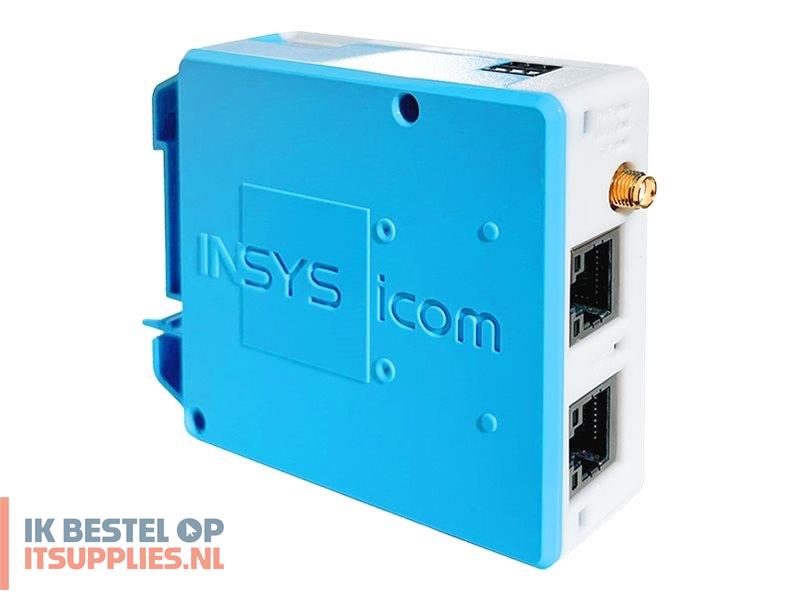

Insys icom MIRO-L200 - Router

Router

DIN rail mountable

Wired

Ethernet, Fast Ethernet, digital input/output

DHCP, TCP/IP, UDP/IP, IPv4, IPv6, NTP, DNS, ARP, DDNS, PPPoE, IPSec, PPTP

Static IP routing, BGP, OSPF, RIP-1, RIP-2, RIPng, RSTP, GRE, NHRP, EIGRP

HTTP, HTTPS, SSH, ICMP, CLI, Telnet

128-bit Blowfish, 128-bit AES, 256-bit AES, CAST5, DES, RC2, SHA-1, SHA-224, SHA-512, IKEv1, IKEv2, 128-bit AES-CBC, 256-bit AES-CBC, 128-bit AES-GCM, 256-bit AES-GCM, MD5, SHA-256, Chacha20-Poly 1305, DH, MPPE, ESP, CRL

PAP, CHAP, MS-CHAP, MS-CHAP v.2, X.509 certificates, RADIUS

RSSI support, half duplex mode, full duplex mode, auto-uplink (auto MDI/MDI-X), 1500V isolation, port trunking, VLAN Tagging, DHCP relay, DHCPv4 server, DHCPv6 server, NTP server, PAT support, NAT support, SNAT support, DNAT support, port forwarding, IP forwarding support, DPD, OpenVPN client, OpenVPN server, PSK, PPTP client, PPTP server, DMVPN, firewall protection, IP address filtering, packet filtering, MAC address filtering, event functions, event notification, secure boot, SCEP, firmware upgradable, NTP client, realtime clock

IEEE 802.1Q, CBC, EN 55032 Class B, IP40, EN 60068-2-1, EN 60068-2-14, EN 60068-2-2, EN 60068-2-27, EN 60068-2-30, EN 60068-2-6, EN 61000-6-2, EN 61000-6-3, EN 61131-2, EN 62368-1, EN55024, IEC 62368-1, IEC 61709

Signal strength, power, WAN

Wireless cellular modem

LTE, UMTS, HSPA, HSDPA, HSUPA, GPRS, EDGE

4G, 3G, 2G

LTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28A, UMTS B1, UMTS B8

WAN / LAN: 2 x 10Base-T/100Base-TX - RJ-45
Antenna: 1 x SMA
1 x DI/DO

1 (total) / 1 (free) x Mini-SIM

DC 12 - 24 V

1.8 Watt

1,000,000 hours

2.6 cm

7.7 cm

9.9 cm

94 g

-40 °C

75 °C

0 - 95% (non-condensing)
