General
Device Type

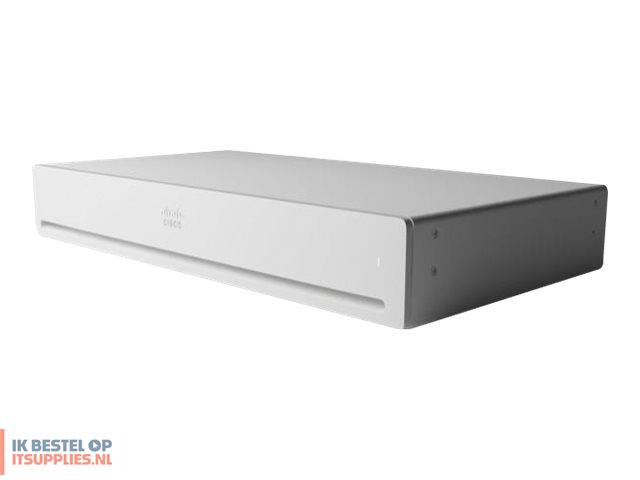

Video conferencing device
Modem
Digital Signaling Protocol
H.323, SIP, H.245, H.460.18, H.460.19, BFCP
Data Compression Protocol
G.711, G.722, H.263, H.264, G.729AB, G.722.1
Video Output
Type
Codec board - rack-mountable
Supported Display Graphics
HDTV (1920x1080), HD (1280 x 720), UHD (3840 x 2160)
Digital Video Standard
High-Definition Multimedia Interface (HDMI)
Input Device
Connectivity Technology
Wireless
Networking
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 4.0, IEEE 802.11ac
Network / Transport Protocol
TCP/IP, NTP, DHCP, DNS
Features
IPv6 support, Quality of Service (QoS), SSH support, URI Dialing, administrator's password, dual band, Network Timing Protocol (NTP), 2x2 MU-MIMO technology, CEC 2.0 support
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
Expansion / Connectivity
Interfaces
6 x audio / video - HDMI input - 19 pin HDMI Type A
3 x audio / video - HDMI output
3 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45
2 x USB
1 x USB
8 x microphone - input
6 x audio - output
Miscellaneous
Compliant Standards
EN55024, FCC, EN 60950-1, FCC CFR47 Part 15 C, X.509, NRTL, EN 62311, Directive 2011/65/EU, Directive 2002/96/EU, EN 300.440, EN 300 328, EDID compatible, EN 301 489-1, FCC CFR47 Part 15 B Class A, EN 62479, Directive 2014/35/EU, Directive 2014/30/EU, EN 55032 Class A, EN 301 893, FCC CFR47 Part 15 E, Directive 2014/53/EU, EN 301 489-17
Software / System Requirements
Software Included
Cisco Collaboration Endpoint 9.4
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90%
