General
Device Type

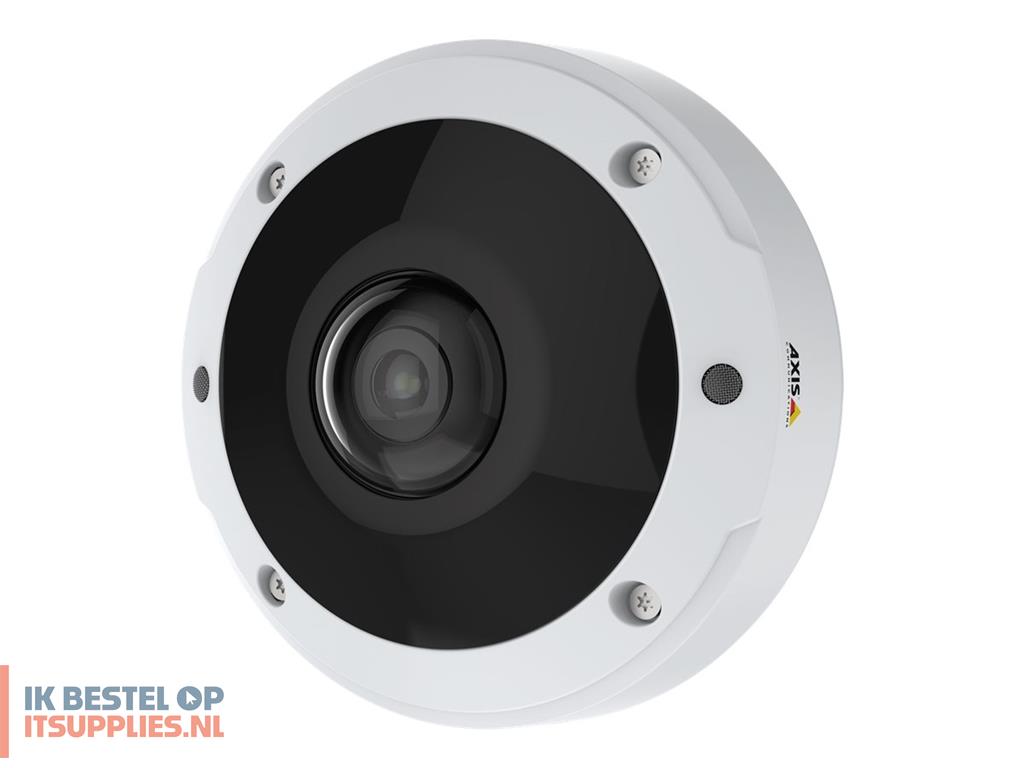

Network panoramic camera
Audio Support
Yes: two-way audio capability, built-in microphone
Audio Formats
PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS
Connectivity Technology
Wired
Camera
Type
Colour - Day&Night - fixed - outdoor - vandal / weatherproof
Digital Video Format
MJPEG, H.264, H.265
Max Digital Video Resolution
2016 x 2016
Exposure Range
1 sec - 1/16000 sec
Minimum Illumination
0.16 lux - colour - F2.0 - 50 IRE ¦ 0.03 lux - B&W - F2.0 - 50 IRE ¦ 0 lux - IR
Digital Video Capture Resolution
384 x 288, 2560 x 1920, 1920 x 1440, 2560 x 1440, 160 x 160, 2016 x 2016, 256 x 144, 192 x 72, 2368 x 1184
Frame Rate (max)
60 frames per second
Features
Sharpness control, white balance, saturation control, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), lens preset positioning, Panorama Capture, NAS-Ready, auto low-light correction, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, Double Panorama Capture, tone correction, OptimizedIR, auto gain control, Access Control, image overlay, exposure control, Pixel Counter Support, digest authentication, Forensic WDR, IP address filtering, exposure zone, tour recording, guard tour, on-screen directional indicator, adjustable zoom speed, HTTPs encryption, signed firmware, secure boot, Corridor mode, 360° field of view, day/night threshold, compression, text overlay, polygon privacy mask
Image Sensor
Lens Construction
Lens Iris
F/2.0 fixed iris
Horizontal Field of View (degree)
183
Vertical Field of View (degree)
183
Interfaces
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, SIP, LLDP, USGv6, MQTT
Expansion / Connectivity
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Miscellaneous
Included Accessories
Mounting bracket, cable gaskets, drill hole template, I/O connector, connector guard, cable hole lid, view protector, Resitorx TR20 screw bit
Compliant Standards
EN55024, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IK10, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, KN35, USGv6, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, IEEE 802.3af, IEEE 802.3at, IEC 60721-3-5 Class 5M3, IEC/EN 62262, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267, NEMA 4, ICES-3(A)/NMB-3(A), IPv6, NEMA TS-2-2016
Power
Power Requirements
PoE Class 3
Software / System Requirements
Software Included
AXIS Camera Station, Windows decoder 1-user licence, AXIS Companion, AXIS Video Motion Detection, AXIS Device Manager
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
50 °C
Relative Humidity (operating)
10 - 100% (condensing)
