Cisco Fourth-Generation Multi-flex Trunk Voice/Channelized Data T1/E1 Module

Productcode: NIM-8CE1T1-PRI= | EAN/UPC: 0882658570339

€ 8.686,86 excl.btw

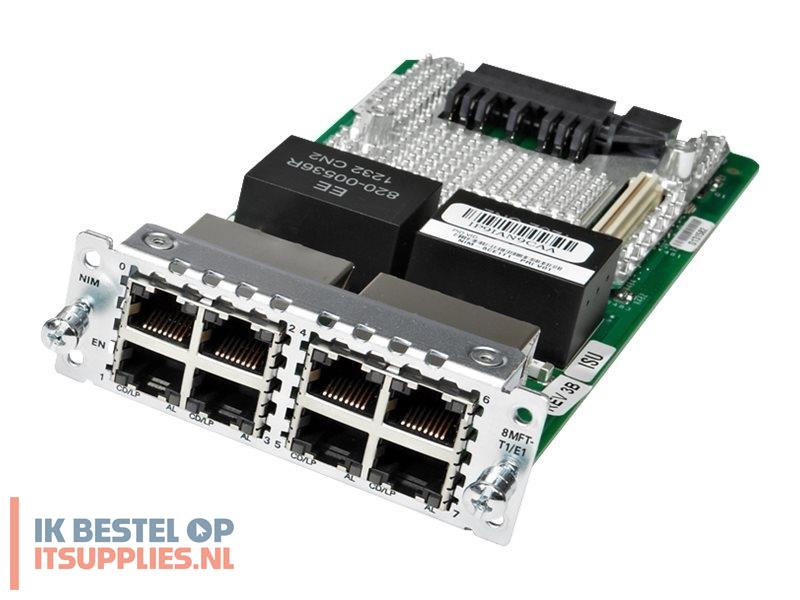

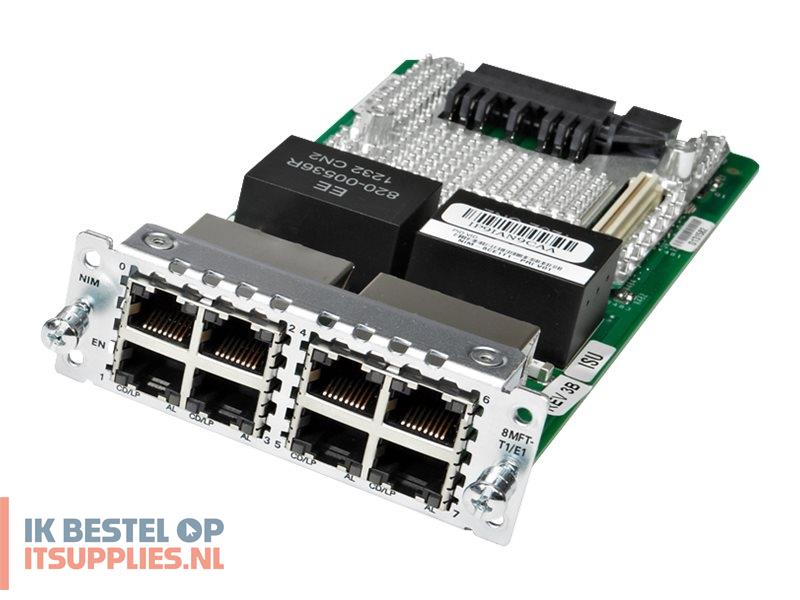

Cisco Fourth-Generation Multi-flex Trunk Voice/Channelized Data T1/E1 Module - Expansion module - T1/E1 x 8 - T-1/E-1 - for Cisco 4451-X

Basic T1/E1 data
E1/G.703 data
T1/E1 packet voice
Mixed data and packet voice
Mixed data and packet voice with drop and insert

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Cisco Fourth-Generation Multi-flex Trunk Voice/Channelized Data T1/E1 Module

€ 10511,10 incl. 21% btw € 8686,86excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Cisco Fourth-Generation Multi-flex Trunk Voice/Channelized Data T1/E1 Module - Expansion module - T1/E1 x 8 - T-1/E-1 - for Cisco 4451-X

Product features

Basic T1/E1 data
The multiflex trunk (MFT) versions act as WICs, supporting T1, fractional T1, E1, and fractional E1. To simplify remote management, these modules integrate a fully managed DSU/CSU for T1 deployments and a fully managed DSU for E1 deployments.
E1/G.703 data
In addition to the basic T1/E1 data support, the CE1T1 versions also support structured G.703 with G.704 framing and unstructured E1 (G.703) applications.
T1/E1 packet voice
All the modules support packet voice applications by providing T1, fractional T1, E1, and fractional E1 connections to private branch exchanges (PBXs) and central offices, thereby enabling the services and reducing voice and fax toll charges. An additional onboard PVDM4 is required. Also, each NIM has its own PVDM4, so each module can be connected to a different service provider with no single clock domain restriction.
Mixed data and packet voice
The modules can simultaneously support both data and voice, reducing the complexity and number of network components and facilitating a graceful migration to bandwidth-efficient packet voice.
Mixed data and packet voice with drop and insert
You can deploy all the modules as T1/E1 drop-and-insert multiplexers with integrated DSUs/CSUs, reducing the complexity of the network and the cost of the central-office ports by efficiently combining time-division multiplexing (TDM) voice (PBX), IP voice, and data on the same trunks.

Specificaties

General

Device Type

Expansion module

Form Factor

Plug-in module

Networking

Ports

T1/E1 x 8

Connectivity Technology

Wired

Data Transfer Rate

2.048 Mbps

Remote Management Protocol

SNMP, Telnet

Line Rate

T-1/E-1

Line Coding Format

AMI, B8ZS, HDB3

Status Indicators

Carrier detect, alarm

Features

Integrated CSU/DSU

Compliant Standards

G.703

Expansion / Connectivity

Interfaces

8 x T1/E1

Miscellaneous

Compliant Standards

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-4-2, EN 61000-4-3, AS/NZ 3548 Class A, ICES-003 Class A, EN 61000-6-2, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, AS/NZS 60950, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, GR-63-CORE, EN 55022 Class A

Dimensions & Weight

Width

8.89 cm

Depth

18.39 cm

Height

3.18 cm

Weight

236 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10 - 85% (non-condensing)

Compatibility Information

Designed For

Cisco 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bundle, 4451-X Integrated Services Router Voice Security Bundle

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
