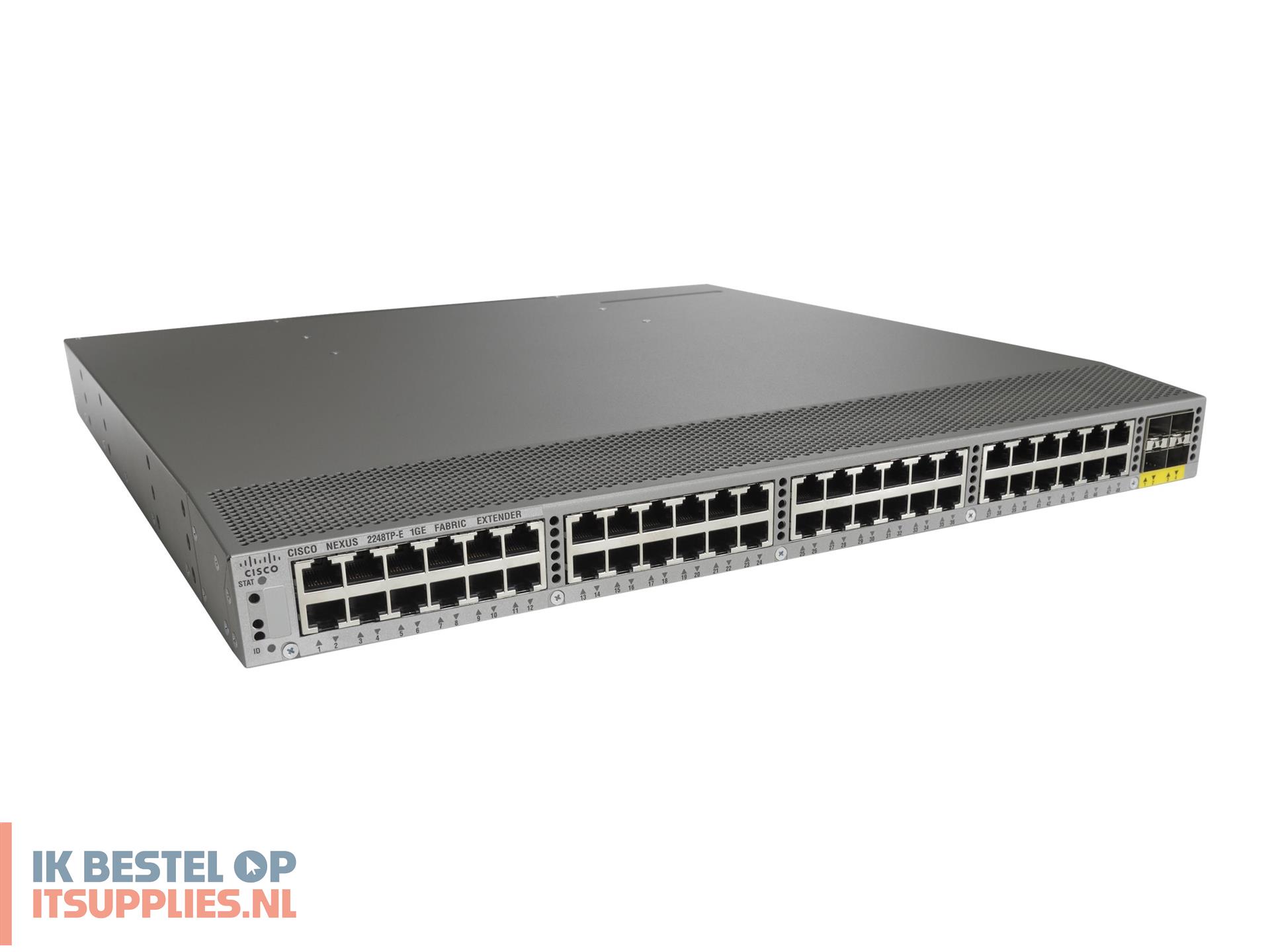

General
Device Type
Expansion module
Form Factor
Rack-mountable
Networking
Ports
Gigabit Ethernet x 48 + 10 Gigabit SFP+ x 4
Connectivity Technology
Wired
Cabling Type
Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol
Fast Ethernet, Gigabit Ethernet
Auxiliary Ports
4 x SFP+ (uplink)
Performance
Forwarding performance (full duplex): 80 Gbps
Forwarding performance: 176 Gbps
Forwarding performance: 131 Mpps
Capacity
ACL entries: 256
Policies: 64
Remote Management Protocol
SNMP 1, SNMP 2, RMON, SNMP 3, CLI
Status Indicators
Port status, power, system, module locator, fan
Features
Flow control, full duplex capability, auto-negotiation, VLAN support, Cisco Gigabit EtherChannel, Syslog support, WRR queuing, STP support, ACL support, QoS, Jumbo Frames support, MIB, CoS, tagged VLAN, vPC technology, hot swappable power supply
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an
Expansion / Connectivity
Expansion Slots
4 (total) / 4 (free) x SFP+
Interfaces
48 x 1000Base-T - RJ-45
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, CSA C22.2 No. 60950-1, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, EN 300 386, GB 4943.1-2011
Power
Power Device
Power supply - hot-plug / redundant - plug-in module
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
Compatibility Information
Designed For
Cisco Nexus 5010, 5010 OSM version, 5010 Solutions Kit 8G FC Unified Fabric, 5020, 5020 IBM OSM version, 5020 Solutions Kit 8G FC Unified Fabric, 5548 Storage Solutions Bundle, 5548P, 5548UP, 5548UP in N5548UP-N2K Bundle, 5548UP Storage Solutions Bundle, 5596T, 5596UP, 5596UP Storage Solutions Bundle, 6001, 6001P, 6001T, 6004, 6004 24 x 40GE Ports/FCoE Bundle, 6004EF, 7004 Bundle, 7009, 7010, 7010 Bundle, 7700 18 Slot Chassis, 7700 18-Slot Switch 220 Gbps/Slot Fabric Module, 7700 6 Slot Chassis, 7700 6-Slot Switch 220 Gbps/Slot Fabric Module, 7700 Switches 10-Slot Chassis, 7700 Switches 10-Slot Switch 220 Gbps/Slot Fabric Module, 7706, 7710, 7710 Bundle
