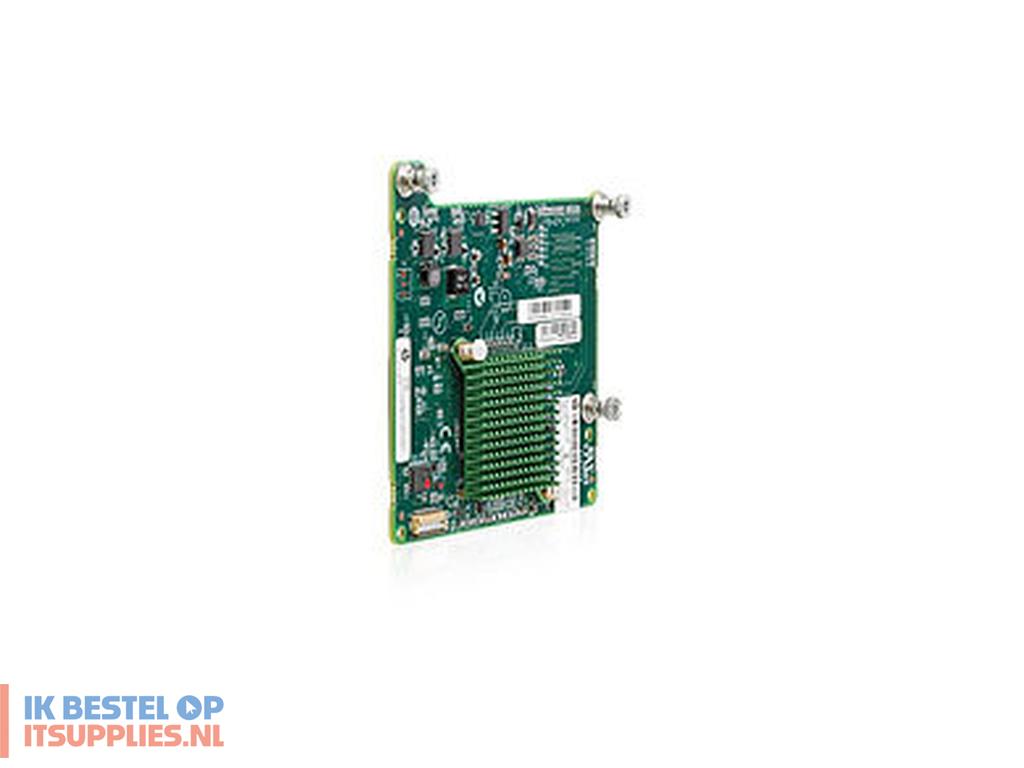

The HP Flex-10 10Gb 2-port 552M adapter, a mezzanine Type A card designed for the HP BladeSystem c-Class Gen8 platform, delivers the performance benefits of 10Gb Ethernet with the scalability and flexibility that HP Virtual Connect and Flex-10 provide. It supports up to 8 FlexNICs per adapter, with each FlexNIC having a unique MAC address and identity on the LAN. Bandwidth can be uniquely allocated for virtual server functions and applications. Hardware acceleration and offloads for stateless TCP/IP and TCP Offload Engine (TOE) enable optimum use of CPU resources.
The HP 552M supports Virtual Connect Flex-10, increasing bandwidth for virtualized servers.
• One platform for network and storage connection
Poorten & interfaces
Connectiviteitstechnologie
Bedraad
Hostinterface
PCI Express
Compatibele geheugenkaarten
Niet ondersteund
Netwerk
Netwerkstandaard
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x
Jumbo Frames ondersteuning
Ja
Design
Kleur van het product
Groen
Certificering
FCC (CFR 47 part 15) /UL 60950
ICES-003 and CSA60950
VCCI
MIC (RRL), EMC Registration
ACA, AS/NZS3548/EN55022:1998, EN55024:1998
EN55022:1998 (CISPR 22), EN55024:1998, IEC60950:1999 (EN60950:2000)
Energie
Stroomverbruik (typisch)
10 W
Minimale systeemeisen
Compatibele besturingssystemen
Windows Server 2008 SP2, R2 (x86 / x64)
Microsoft Windows Hyper-V, R2 SP1
RHEL 5, 6, 7
SLES 10, 11
Solaris 10 (x86 and x64)
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Technische details
Certificaten van naleving
RoHS
Overige specificaties
Overdrachtssnelheid
10 Gbit/s
Draadloze verbindingen
Nee
