General
Device Type

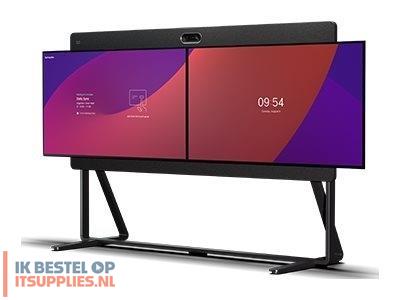

Video conferencing kit
Kit Content
Subwoofer, Cisco Webex Quad Camera, Cisco Webex Codec EQ, Cisco Webex Room Navigator, Cisco Natural Audio Module IV (amplifier), 6 loudspeakers
VoIP Protocols
H.323, SIP, H.235
Voice Codecs
G.711, G.722, G.729, G.722.1, AAC-LD, Opus
Video Codecs
H.263, H.264, H.265, H.239
IP Address Assignment
DHCP
Security
H.235, 128 bit AES, 256 bit AES, TLS, H.323, SRTP, AES, WPA3, WPA3-Enterprise
Network Protocols
HTTP, DNS, HTTPS, SRTP, NTP, SSH, TLS, IPv6, IPv4, DHCP, SIP
Enclosure Colour
Carbon black
Modem
Digital Signaling Protocol
H.323, SIP, H.239, H.245, H.460.18, H.460.19, BFCP
Data Compression Protocol
G.729, G.711, G.722, H.263, H.264, G.722.1, H.239, H.235, H.265
Video Input
Type
Digital video camera (colour) - external
Digital Video Capture Resolution
1920 x 1080, 5056 x 3888
Features
White balance, brightness control, Auto Focus, Acoustic Echo Cancellation (AEC), Miracast connectivity, automatic group framing, speaker tracking, F 2.0 lens aperture, AI-powered, 1/1.7 CMOS image sensor type, focus distance 1 m to infinity, 83° horizontal field of view (wide), 50° horizontal field of view (tele), group view mode, speaker view mode, frames mode, 4 x 20 megapixels image sensor, spatial audio, Ultrasound technology, noise-cancellation microphone
Audio Input
Type
8-microphone array - integrated
Audio Output
Frequency Response
45 - 20000 Hz
Networking
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, Bluetooth LE, IEEE 802.11ax (Wi-Fi 6)
Network / Transport Protocol
NTP, DHCP, DNS, Bonjour, HTTP, HTTPs, IPv4, IPv6
Features
Flow control, DiffServ support, full duplex mode, Quality of Service (QoS), Class of Service (CoS), 802.1x authentication, Apple AirPlay, VoIP support, URI Dialing, auto gatekeeper discovery, WebRTC, 2x2 MIMO technology, Cisco Discovery Protocol (CDP), password protection, Wireless Screen Sharing, LPCM support, BYOD System, Certificate Authority Proxy Function (CAPF)
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, Bluetooth 5.2
Expansion / Connectivity
Interfaces
1 x USB-C - 24 pin USB-C ¦ 3 x display / video - HDMI input - 19 pin HDMI Type A ¦ 3 x display / video - HDMI output - 19 pin HDMI Type A ¦ 3 x audio - input - mini-phone stereo 3.5 mm ¦ 1 x audio - output - mini-phone stereo 3.5 mm ¦ 4 x SuperSpeed USB 3.0 - 4 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++) - RJ-45
Miscellaneous
Cables Included
2 x power cable (C13-C14) - 3 m ¦ 1 x network cable - 5 m ¦ 1 x HDMI cable - 1.5 m ¦ 2 x network cable - 1.5 m ¦ 1 x speaker cable ¦ 1 x power cable ¦ 1 x network cable - 12 m
Included Accessories
Table stand, aerial kit, 2 cooling fans, power strip 1x C14 Inlet, 4x Outlet F
Software Certification
Certified for Microsoft Teams Rooms
Compliant Standards
MIC, WEEE, EDID compatible, HDCP 1.4, CEC 2.0
Power
Power Device
Power adapter - external
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
68.8 Watt
Manufacturer Warranty
Service & Support
Limited hardware warranty - 90 days ¦ Limited warranty - advance hardware replacement - 10 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90% RH
