General
Device Type

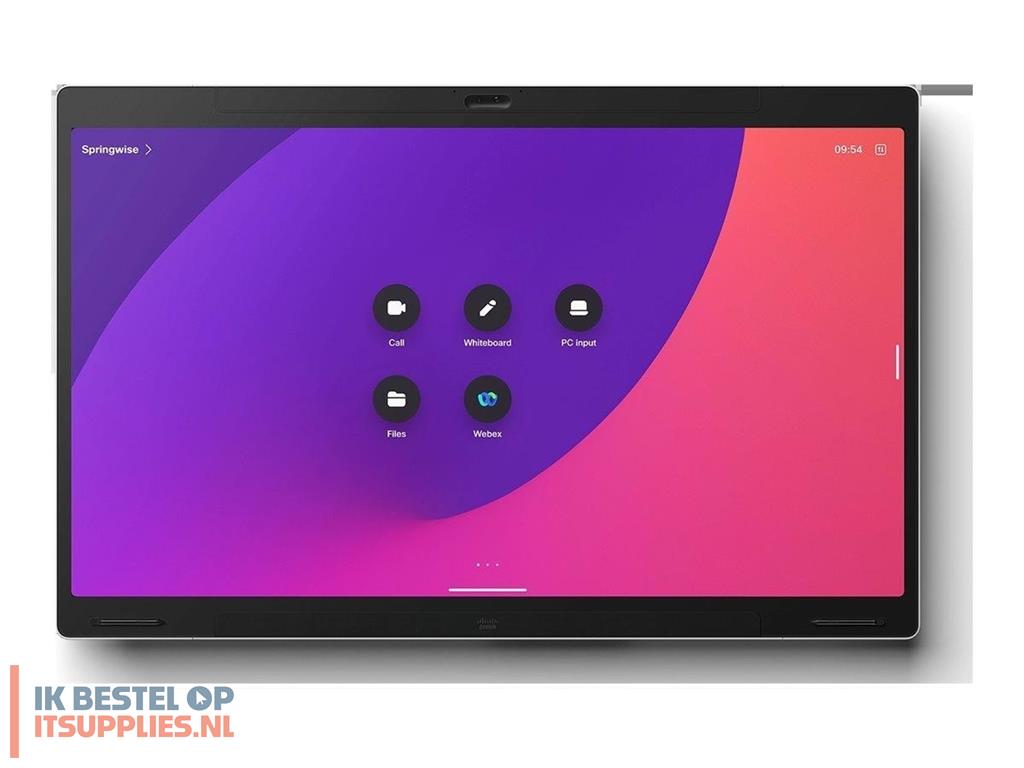

Video conferencing device
VoIP Protocols
H.323, SIP, SRTP
Voice Codecs
G.711, G.722, G.729, G.722.1, AAC-LD, Opus
Video Codecs
H.263, H.265, H.239, H.264 AVC
Quality of Service
IEEE 802.1Q (VLAN), IEEE 802.1p
IP Address Assignment
DHCP
Security
128 bit AES, 256 bit AES, TLS, H.323, AES-CCMP, SRTP, WPA3, WPA3-Enterprise
Network Protocols
Cisco Discovery Protocol (CDP), HTTP, DNS, HTTPS, SRTP, NTP, SSH, TLS, IPv4, DHCP, SIP, IEEE 802.1x
Dimensions & Weight Details
Mount - Weight 5.8 kg
Built-in Devices
Stereo speakers, subwoofer, capacitive touch screen, dual camera, 14 microphone array
Display
Native Resolution
3840 x 2160
Image Brightness
350 cd/m²
Image Contrast Ratio
1000:1
Monitor Features
LED Technology, 10-bit Colour Depth, multi-touch screen, ±89° viewing angle
Modem
Digital Signaling Protocol
H.323, SIP, H.239, H.460.18, H.460.19, BFCP
Data Compression Protocol
G.729, G.711, G.722, H.263, H.264, G.722.1, H.239, H.265
Video Input
Type
Dual digital video camera (colour) - integrated
Digital Video Capture Resolution
3840 x 2160
Features
Acoustic Echo Cancellation (AEC), 30 fps, auto AGC, 1/3 CMOS image sensor type, AI noise reduction, intelligent multi-participant framing, AI-powered, Ultrasound technology, 802.1x authentication, 48 megapixels resolution, 70° horizontal field of view (main camera), 50° vertical field of view (main camera), F 1.8 lens aperture (main camera), auto focus lens (VCM) (main-camera), 112° horizontal field of view (ultra-wide camera), 94° vertical field of view (ultra-wide camera), fixed focus (ultra-wide camera)
Video Output
Supported Display Graphics
UHD (3840 x 2160)
Digital Video Standard
High-Definition Multimedia Interface (HDMI)
Audio Input
Type
14 microphones - integrated
Microphone Operation Mode
Beamforming
Audio Output
Frequency Response
75 - 20000 Hz
Input Device
Connectivity Technology
Wireless
Networking
Connectivity Technology
Wireless, wired
Data Link Protocol
Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth LE
Network / Transport Protocol
NTP, DHCP, DNS, HTTP, HTTPs, IPv4, IPv6
Features
Firewall protection, DiffServ support, full duplex mode, WebRTC, 2x2 MIMO technology, Cisco Expressway technology, Certificate Authority Proxy Function (CAPF), BYOD mode
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, X.509, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
Expansion / Connectivity
Interfaces
1 x display / video - HDMI input - 19 pin HDMI Type A ¦ 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x display / video - input - 24 pin USB-C ¦ 2 x network - Ethernet 1000Base-T - RJ-45 ¦ 1 x network - Ethernet 1000Base-T (PoE) - RJ-45 ¦ 2 x audio - line-In - mini-phone 3.5 mm ¦ 1 x audio - line-out - mini-phone 3.5 mm ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB - Micro-USB 2.0
Miscellaneous
Included Accessories
Wall mount kit, lifting handles
Software Certification
Certified for Microsoft Teams Rooms
Compliant Standards
MIC, FCC, RoHS, WEEE, FCC CFR47 Part 15 C, NRTL, Directive 2011/65/EU, Directive 2014/35/EU, Directive 2014/30/EU, FCC CFR47 Part 15 E, Directive 2014/53/EU, IPv6, HDCP, FCC 47 CFR Part 15 B Class A
Power
Voltage Required
AC 100-240 V (50/60 Hz)
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 90 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 90% RH (non-condensing)
