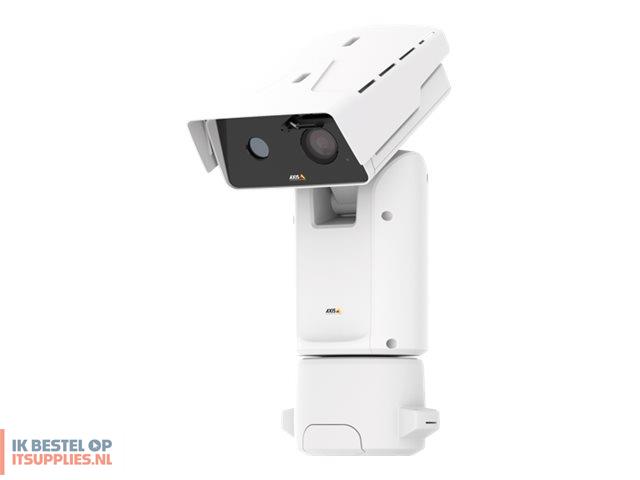

Axis Q8742-E Bispectral PTZ Network Camera

Thermal / network surveillance camera

Wired

24.5 cm

35.5 cm

58 cm

14.9 kg

Colour - Day&Night - pan / tilt / zoom - outdoor - dustproof / waterproof

MPEG-4, MJPEG, H.264, AVC

Yes

1080p

12

2 sec - 1/66500 sec

0.2 lux - colour - F1.6 - 30 IRE
0.01 lux - B&W - F1.6 - 30 IRE
0.25 lux - colour - F1.6 - 50 IRE
0.02 lux - B&W - F1.6 - 50 IRE

320 x 180, 1920x1080, 1080p

30 frames per second

1080p

512 MB

512 MB

Backlight compensation, sharpness control, white balance, colour control, brightness control, contrast control, Wide Dynamic Range (WDR), 256 preset positions, NAS-Ready, 3D Privacy Mask Function, Video Motion Detection Technology, surge protection, password protection, Variable Bitrate (VBR), 35 mm thermal lens, Forensic Capture (120 dB), Zipstream technology, image overlay, exposure control, Pixel Counter Support, infrared-cut filter, digest authentication, Voltage Transient Protection, IP address filtering, exposure zone, guard tour, on-screen directional indicator, HTTPs encryption, uncooled micro bolometer, 30 fps on thermal mode

CMOS 1/2.8"

Motorized zoom

30 x

4.3 mm - 12.9 mm

F/1.6-4.7 auto iris

Automatic

2 - 65.6

1.2 - 39

360

Up to 120

-90 to +45

Up to 65

Ethernet 10Base-T/100Base-TX/1000Base-T, Ethernet 1000Base-X

DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP, NTCIP

LAN - SFP
LAN - RJ-45

microSD Card, microSDHC Card, microSDXC Card

Connector kit, 64 GB microSD card, torx bits T20 and T30

VCCI Class A ITE, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, FCC Part 15 B Class A, IP66, ISO 4892-2, IEC 62262 IK10, EN 50121-4, IEC 62236-4, IEC 60721-3-4, NEMA250 Type 4X, EN 55032 Class A, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, CISPR 32 Class A, IEC/EN 60529 IP66

White

DC 24 V / AC 24 V

Limited warranty - 3 years

-50 °C

55 °C

10 - 100%
