General
Device Type

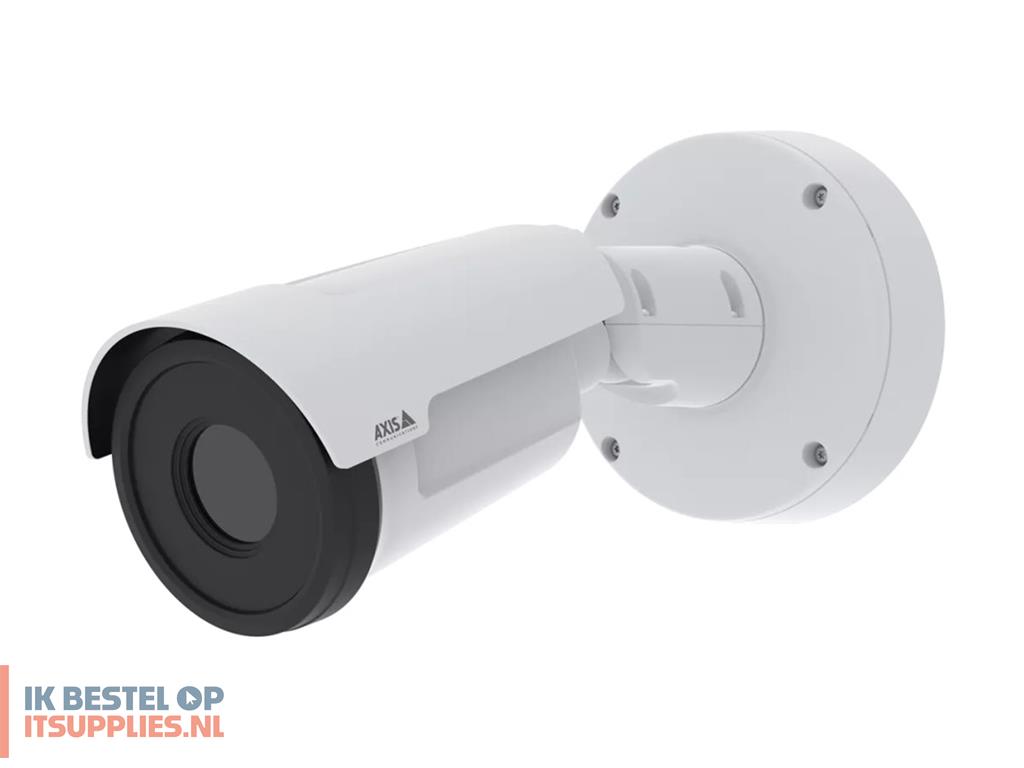

Thermal network camera
Audio Support
Yes: 10-band graphic equaliser, two-way audio via edge-to-edge technology
Audio Formats
LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS
Connectivity Technology
Wired
Localisation
Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States
Camera
Type
- fixed - outdoor - weather resistant / impact resistant
Digital Video Format
H.264, MJPEG, H.265, AVC, HEVC
Max Digital Video Resolution
800 x 600
Digital Video Capture Resolution
800 x 600
Frame Rate (max)
8.3 frames per second
Features
Axis Edge Vault, thermal sensitivity 20 mK (NETD), electronic image stabilisation, Thermal Imaging System, 640 x 480 thermal resolution, multiple colour palettes, deep learning processing unit (DLPU), video streaming indicator, contrast control, brightness control, sharpness control, exposure control, compression, rotation mode, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, image mirror, image overlay, simplex audio, half duplex audio, network speaker pairing, auto gain control, text overlay, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, Pixel Counter Support, early warning fire prevention, brute force delay protection, digest authentication, memory card encryption, password protection, signed firmware, Axis device ID, secure boot, secure keystore, signed video, isothermal palette, TPM 2.0 module, spot temperature metre, 10 temperature zones detection, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), 8 - 14 µm spectral response, scheduled recording, Electronic Image Stabilizer (EIS)
Image Sensor
Type
Uncooled Micro bolometer
Effective Pixels
640 x 480
Lens Construction
Focus Adjustment
Athermalised
Horizontal Field of View (degree)
63
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Network Protocols
IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf
Expansion / Connectivity
Ports
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Encryption Algorithm
PEAP, MSCHAPv2, Dynamic PSK, TLS 1.2, TLS 1.3, PKI, 256-bit AES-XTS-Plain64
Miscellaneous
Included Accessories
Drill hole template, torx L-key, Resistorx L-key, terminal block connectors, connector guard, cable gaskets, owner authentication key
Compliant Standards
IK10, IP66, IP67, NEMA Type 4X, NEMA TS-2, FIPS 140-2, halogen-free, CSA, cUL, KC, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, MIL-STD 810H 501.7, MIL-STD 810H 502.7, MIL-STD 810H 505.7, MIL-STD 810H 506.6, MIL-STD 810H 507.6, MIL-STD 810H 509.7, MIL-STD 810H 510.7, MIL-STD 810H 514.8, MIL-STD 810H 516.8, MIL-STD 810H 521.4, RCM, AS/NZS CISPR 32 Class A, ICES, NMB-003, VCCI Class A, KS C 9835, KS C 9832, FCC Part 15 Subpart B:2020 Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529, IEC/EN 62262, ISO 21207 method B, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, ETSI EN 303 645, BSI, ICES-3(A)/NMB-3(A), IEEE 802.1x, IEEE 802.1ar, X.509, IEEE 802.3af, IEEE 802.3at, RoHS 2011/65/EU, EN 63000:2018
Colour
White, NCS S 1002-B
Power
Power Requirements
DC 12 - 28 V / PoE Class 3
Software / System Requirements
Software Included
AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS Video Motion Detection, AXIS Speed Monitor
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
60 °C
Relative Humidity (operating)
10 - 100% RH (condensing)
