General
Device Type

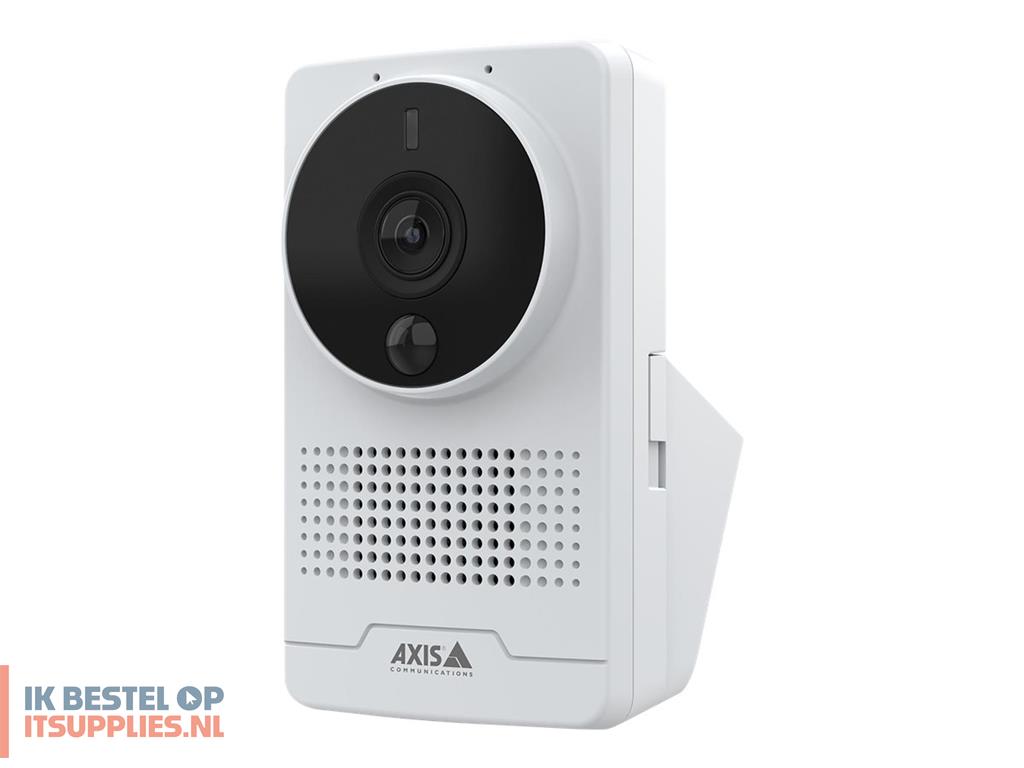

Network surveillance camera
Audio Support
Yes: built-in speaker, two-way audio capability, built-in microphone
Audio Formats
PCM, ADPCM, AAC-LC, LPCM, G.711, OPUS
Camera Mount Type
Wall mount
Connectivity Technology
Wired
Localisation
Argentina, Australia, China, Japan, India, Korea, Brazil, United Kingdom, United States, Europe
Camera
Type
Colour - Day&Night - fixed
Digital Video Format
MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2
Max Digital Video Resolution
1920 x 1080
Exposure Range
1/5 sec - 1/19000 sec
Minimum Illumination
0.18 lux - colour - F2.0 - 50 IRE
0.04 lux - B&W - F2.0 - 50 IRE
0 lux - IR
Digital Video Capture Resolution
1280 x 960, 320 x 240, 1920 x 1080, 640 x 360
Frame Rate (max)
30 frames per second
Features
Sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), Face Recognition, full duplex audio, Lightfinder technology, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, plastic housing, infrared-cut filter, Line Crossing Detection, Vehicle Detection, IP address filtering, exposure zone, human detection, aluminium housing, secure boot, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), compression, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, ONVIF (Profile M) support, Multi-Bitrate (MBR), deep learning processing unit (DLPU), VoIP support, exposure mode, PIR detection
Image Sensor
Lens Construction
Type
M12 mount - fixed focal
Lens Iris
F/2.0 fixed iris
Horizontal Field of View (degree)
103
Vertical Field of View (degree)
55
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, SIP, LLDP, Zeroconf, USGv6, MQTT, Syslog, NTS, RTSPS
Expansion / Connectivity
Ports
LAN/power - RJ-45
USB
Micro-HDMI
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Miscellaneous
Included Accessories
Wall mount kit, terminal block connectors
Compliant Standards
EN 61000-6-1, EN 61000-6-2, AES-256, X.509, FCC Part 15 B Class A, Common Criteria EAL4+, VCCI Class A, RCM, IEC 62471, TLS v1.2, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, IEEE 802.3af, IEEE 802.3at, EN 55035, IEC/EN/UL 62368-1, IEEE 802.1x, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), TLS v1.3, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835, CFR free, IEEE 802.1ar
Colour
White, NCS S 1002-B
Power
Power Requirements
PoE Class 3
Software / System Requirements
Software Included
AXIS Camera Station, Windows decoder 1-user licence, AXIS Companion, AXIS Video Motion Detection, AXIS Object Analytics
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Relative Humidity (operating)
10 - 85% RH (non-condensing)
