General
Device Type

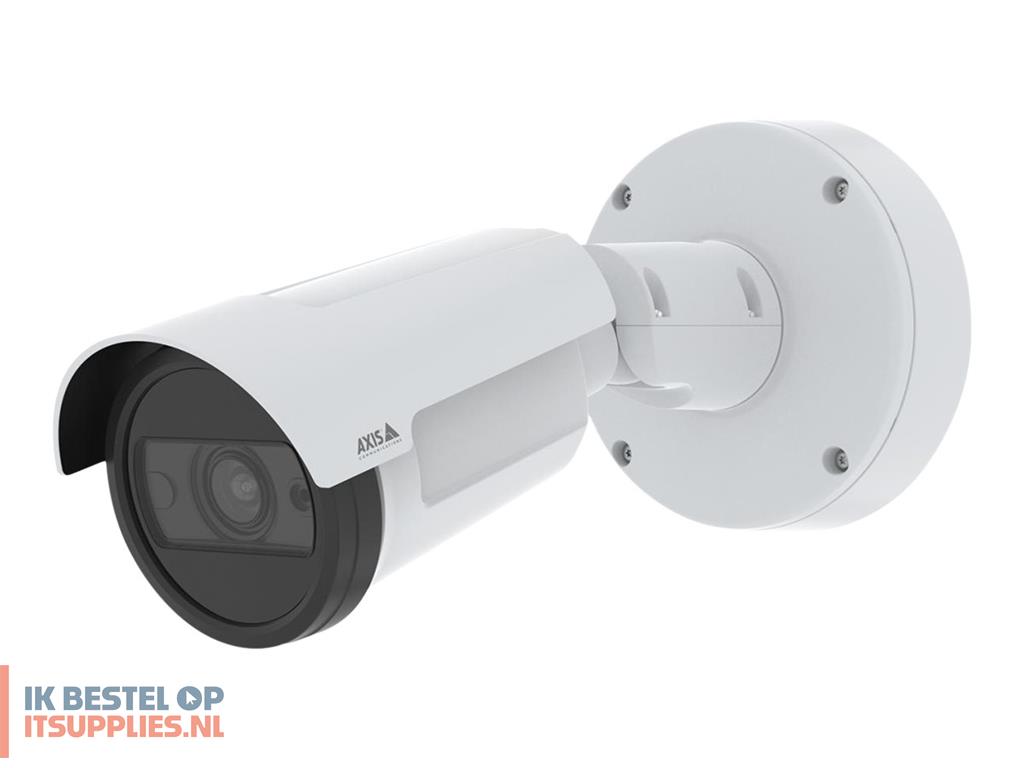

Network surveillance camera
Audio Support
Yes: two-way audio via edge-to-edge technology
Audio Formats
PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS
Connectivity Technology
Wired
Localisation
Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, European Union
Camera
Type
Colour - Day&Night - fixed - outdoor - weather resistant / impact resistant
Digital Video Format
MJPEG, H.265, H.264B, H.264H, H.264M
Max Digital Video Resolution
1920 x 1080
Exposure Range
2 sec - 1/37000 (with WDR), 1/71500 sec
Minimum Illumination
0.06 lux - colour - F1.7 - 50 IRE
0.01 lux - B&W - F1.7 - 50 IRE
0 lux - IR
Video Capture
1920 x 1080, WDR off @ 50/60 fps
1920 x 1080 @ 25/30 fps
Features
Sharpness control, white balance, saturation control, brightness control, contrast control, image mirror, 2D Noise Reduction Technology, 3D Noise Reduction Technology, full duplex audio, active tampering alarm, digital PTZ function, password protection, shock detection, IR Corrected lens, Variable Bitrate (VBR), OptimizedIR, auto gain control, Zipstream technology, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Pixel Counter Support, infrared-cut filter, digest authentication, Forensic WDR, IP address filtering, electronic image stabilisation, exposure zone, half duplex audio, simplex audio, digital zoom, signed firmware, secure boot, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, Lightfinder 2.0 technology, day/night threshold, defogging, compression, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, low latency mode, memory card encryption, brute force delay protection, ONVIF (Profile M) support, remote zoom, Axis Edge Vault, 16:9 aspect ratio, Multi-Bitrate (MBR), Axis device ID, video streaming indicator, up to 8 view areas, dynamic text, signed video, deep learning processing unit (DLPU), exposure mode, barrel distortion correction, network speaker pairing, 16:10 aspect ratio, 4:3 aspect ratio, hybrid IR filter
Image Sensor
Type
2 MP PS RGB CMOS 1/2.8"
Lens Construction
Focal Length
10.9 mm - 29 mm
Lens Iris
F/1.7-1.7 auto iris (P-Iris)
Horizontal Field of View (degree)
11 - 29
Vertical Field of View (degree)
6 - 16
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog, NTS, RTSPS
Expansion / Connectivity
Ports
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Miscellaneous
Included Accessories
Cable gaskets, connector guard, torx L-keys, terminal block connector, AXIS weather shield L, owner authentication key
Compliant Standards
CSA, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, EAL 4+, X.509, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, EN 50121-4, IEC 62236-4, VCCI Class A, EAC, RoHS 2011/65/EU, BIS, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, IEC/EN 62471, CISPR 32 Class A, IEEE 802.3af, IEEE 802.3at, REACH 2006/1907, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, IEC/EN 60529 IP67, NEMA TS-2 (2.2.7-2.2.9), UKCA, UL/cUL, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835, CFR free, IS 13252, IEEE 802.1ar
Colour
White, NCS S 1002-B
Power
Power Requirements
DC 10 - 28 V / PoE Class 3
Software / System Requirements
Software Included
AXIS Video Motion Detection, AXIS Object Analytics, AXIS Live Privacy Shield
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
60 °C
Relative Humidity (operating)
10 - 100% RH (condensing)
