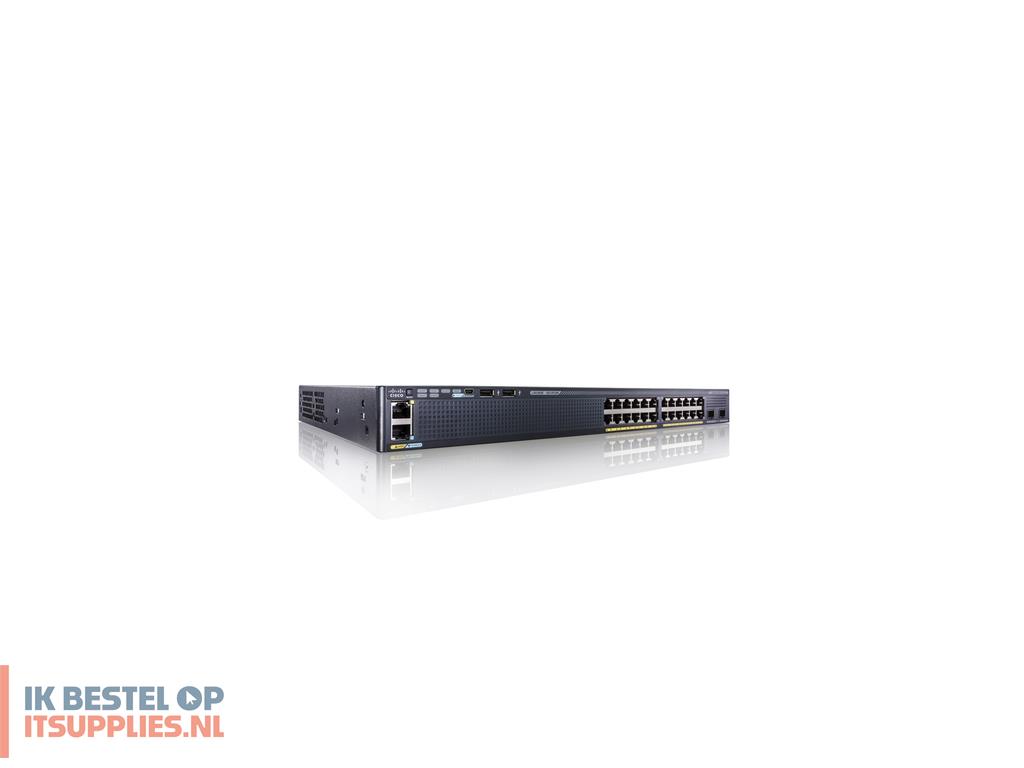

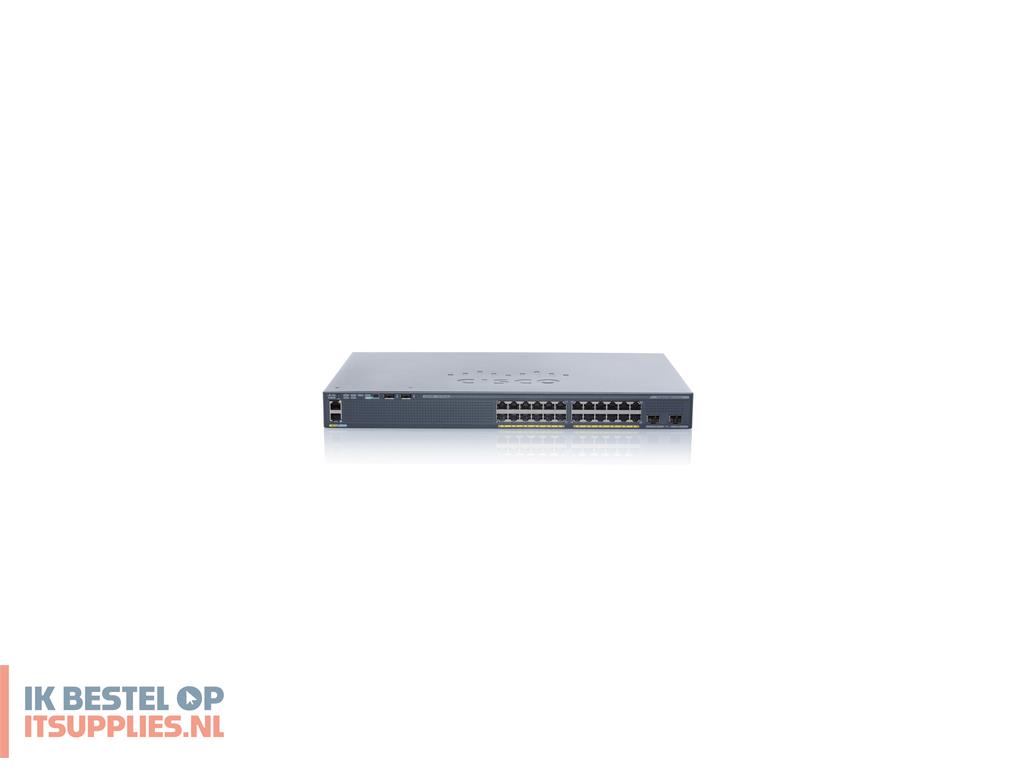

Cisco Small Business WS-C2960X-24TS-L. Switch type: Managed, Switch-laag: L2/L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 24, Aantal USB 2.0-poorten: 2, Console port: RJ-45. Full duplex. MAC-adrestabel: 16000 entries, Switchingcapaciteit: 216 Gbit/s. Netwerkstandaard: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Netwerk
Netwerkstandaard
IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Spanning tree protocol
Ja
Data-uitwisseling
MAC-adrestabel
16000 entries
Switchingcapaciteit
216 Gbit/s
Aantal statische routes
1000
Jumbo Frames ondersteuning
Ja
Beveiliging
DHCP-functies
DHCP server
Access Control List (ACL)
Ja
Regels voor toegangscontrolelijst (ACL)
3
Ondersteunde beveiligingsalgoritmen
SNMP, SSH
Authenticatie
MAC-gebaseerde authenticatie, Poortgebaseerde authenticatie
Multicast-functies
Multicast-ondersteuning
Ja
Aantal gefilterde multicast-groepen
1000
Protocollen
Wissel protocols
UDP, TCP, RADIUS/TACACS+
Design
Kleur van het product
Zwart
Veiligheid
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Prestatie
Physical stacking (units)
8
Processormodel
AppliedMicro APM8639
Frequentie van processor
600 MHz
Mean time between failures (MTBF)
564910 uur
Energie
AC-ingangsspanning
100 - 240 V
Stroomverbruik (typisch)
36,9 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-5 - 40 °C
Temperatuur bij opslag
-25 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Luchtvochtigheid bij opslag
10 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 4000 m
Verpakking
Breedte verpakking
390,7 mm
Diepte verpakking
549,4 mm
Hoogte verpakking
147,6 mm
Gewicht verpakking
5,4 kg
Technische details
Producten per (binnenste) verzendverpakking
1 stuk(s)
Logistieke gegevens
Aantal per verpakking
1 stuk(s)
Code geharmoniseerd systeem (HS)
85176990
Hoeveelheid per (buitenste) hoofdverpakking
1 stuk(s)
