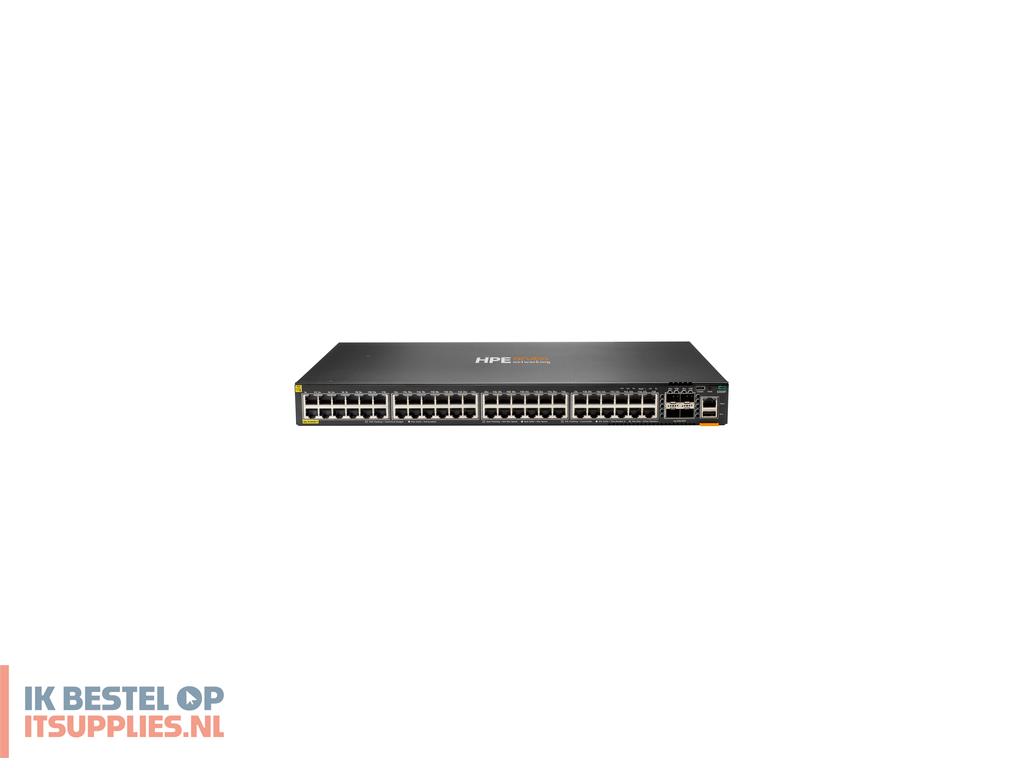

HPE Aruba Networking CX 6300F 48p 10M/100M/1G Class4 PoE 4p SFP56 50G TAA Switch. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48. MAC-adrestabel: 32768 entries, Switchingcapaciteit: 496 Gbit/s. Netwerkstandaard: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Power over Ethernet (PoE). Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal USB Type-A-poorten
1
Vezel-optische connector
SFP56
Netwerk
Netwerkstandaard
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z
Spanning tree protocol
Ja
Data-uitwisseling
MAC-adrestabel
32768 entries
Switchingcapaciteit
496 Gbit/s
Latentie (1 Gbps)
2,28 µs
Latentie (10 Gbps)
1,46 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
8 MB
Beveiliging
DHCP-functies
DHCP relay, DHCP server
Access Control List (ACL)
Ja
Authenticatie
MAC-gebaseerde authenticatie, Webgebaseerde authenticatie
Authenticatie type
RADIUS, TACACS+
Multicast-functies
Multicast-ondersteuning
Ja
IPv4-multicast-vermeldingen
8192
IPv6-multicast-vermeldingen
8192
Protocollen
Beheerprotocollen
SNMPv2c, SNMPv3
Routing protocols
BGP, BGP4, OSPF, OSPFv3, RIPng, VRRP
IPv4- & IPv6-functies
Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL)
Design
Luchtstroomrichting
Luchtstroom van voren naar achteren
Prestatie
Physical stacking (units)
10
Processormodel
ARM Cortex-A72
Frequentie van processor
1800 MHz
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
200 - 240 V
AC-ingangsfrequentie
50/60 Hz
Vermogensverbruik (max)
86 W
Energieverbruik opmerking
Idle: 63W 100% Traffic Rate: 86W
Netvoeding voetnoot
Internal (fixed) power supply (950W)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Totaal Power over Ethernet (PoE)-budget
740 W
Overige specificaties
Latentie
1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs
Geheugen en processor
CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
Prestatiebeheer
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Aansluitingen
48 x 10/100/1000 BaseT PoE+ ports supporting up to 30W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Gewicht (imperiaal)
6,02 kg (13.3 lbs)
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 95 procent
Hoogte, in bedrijf
0 - 3048 m
