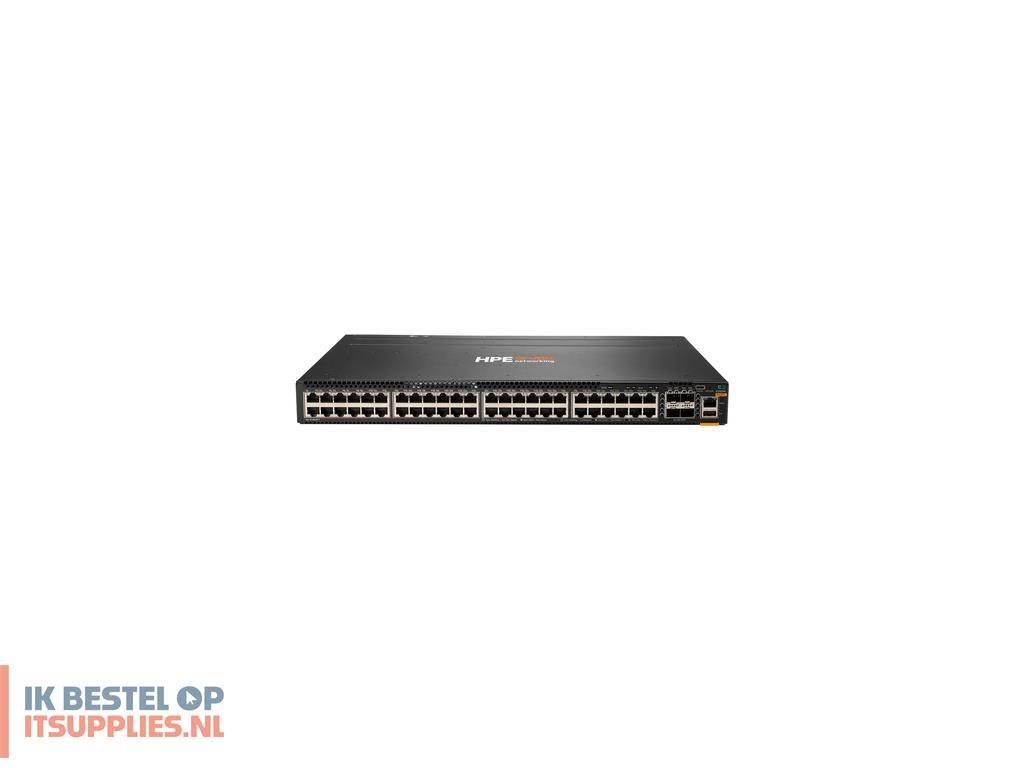

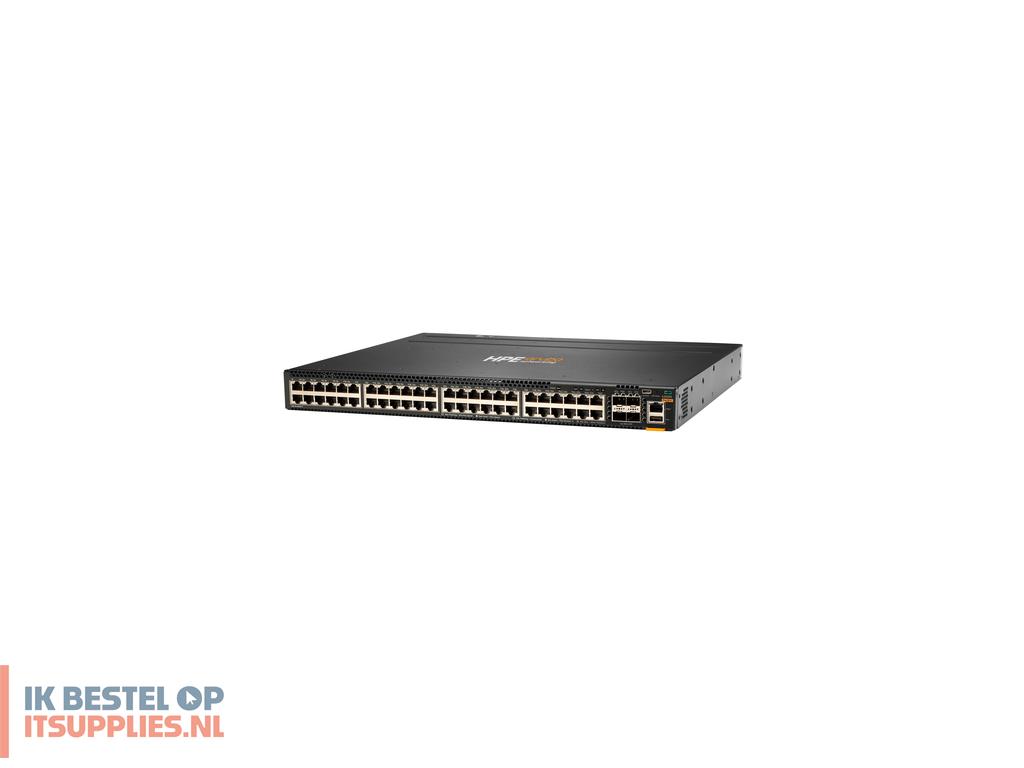

HPE Aruba Networking CX 6300M 48p 10M/100M/1G 4p SFP56 50G Power-to-Port 2xFan PSU TAA Bundle. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48, Console port: USB. MAC-adrestabel: 32768 entries, Switchingcapaciteit: 496 Gbit/s. Netwerkstandaard: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal USB Type-A-poorten
1
Aantal USB-Type-C-poorten
1
Vezel-optische connector
SFP56
Netwerk
Netwerkstandaard
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Spanning tree protocol
Ja
Virtuele LAN-functies
Private VLAN
Optische vezel
Transmissie afstand (max)
10 km
Data-uitwisseling
MAC-adrestabel
32768 entries
Switchingcapaciteit
496 Gbit/s
Latentie (1 Gbps)
2,28 µs
Latentie (10 Gbps)
1,46 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
8 MB
Beveiliging
DHCP-functies
DHCP client, DHCP relay
Access Control List (ACL)
Ja
Authenticatie
MAC-gebaseerde authenticatie, Webgebaseerde authenticatie
Authenticatie type
RADIUS, TACACS+
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Beheerprotocollen
SNMP v2c, SNMP v3, RMON
Routing protocols
BGP, BGP4, OSPFv2, OSPFv3, RIP-2, VRRP
IPv4- & IPv6-functies
IPv4/IPv6 access-control list (ACL)
Design
Luchtstroomrichting
Luchtstroom achter-naar-voor
Aantal ventilatoren
2 ventilator(en)
Prestatie
Physical stacking (units)
10
Processormodel
ARM Cortex-A72
Frequentie van processor
1800 MHz
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Vermogensverbruik (max)
75 W
Energieverbruik opmerking
Idle: 56W 100% Traffic Rate: 75W
Netvoeding voetnoot
2 Field‑replaceable, hot‑swappable power‑supply slots and comes with one power-to-port power‑supply pre‑installed. Additional power-to-port power‑supply can be ordered separately. Supports JL760A power-to-port power‑supply only.
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Overige specificaties
Latentie
1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs
Geheugen en processor
CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
Prestatiebeheer
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Fan
Switch has two fan tray slots and comes with two fan trays installed. Minimum 2 fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans. Supports JL761A power-to-port fan tray only.
Aansluitingen
48 x 10/100/1000 BaseT ports 4 x 1G/10G/25G/50G [4] SFP ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Gewicht (imperiaal)
6,02 kg (13.3 lbs)
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 90 procent
Hoogte, in bedrijf
0 - 3048 m
Hoogte bij opslag
0 - 3048 m
