Prestatie
Physical stacking (units)
10
Frequentie van processor
1800 MHz
Energie
AC-ingangsspanning
100 - 240 V
Energieverbruik opmerking
Idle: 56W 100% Traffic Rate: 75W
Netvoeding voetnoot
2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately). Supports JL085A PSU.
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Overige specificaties
Latentie
1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs
Geheugen en processor
CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
Prestatiebeheer
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Fan

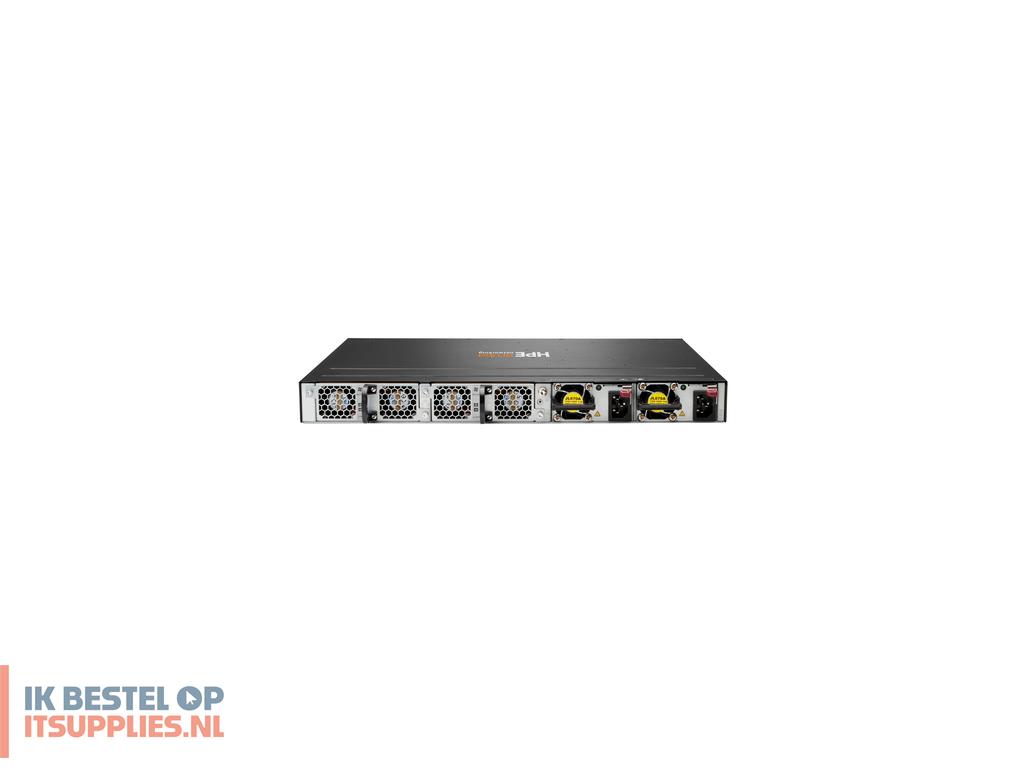

Switch has two fan tray slots and comes with one fan tray installed. Minimum one fan trays required. Optional second fan tray ordered separately. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans.
Aansluitingen
48 x 10/100/1000 BaseT ports 4 x 1G/10G/25G/50G [4] SFP ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Gewicht (imperiaal)
6,02 kg (13.3 lbs)
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
