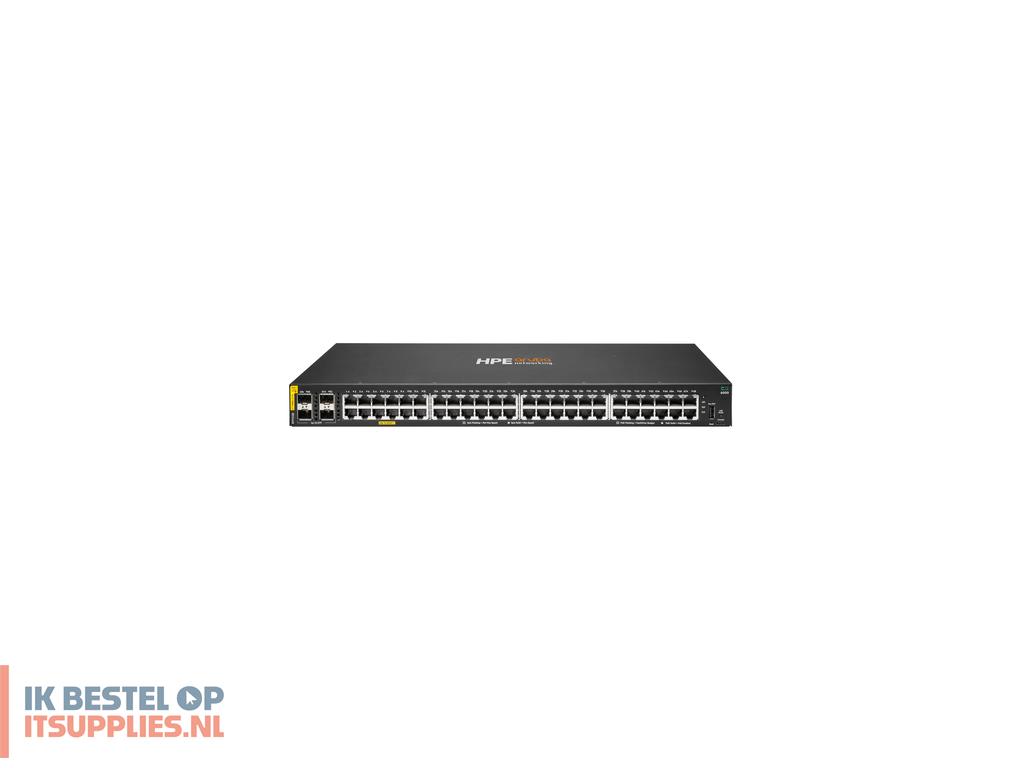

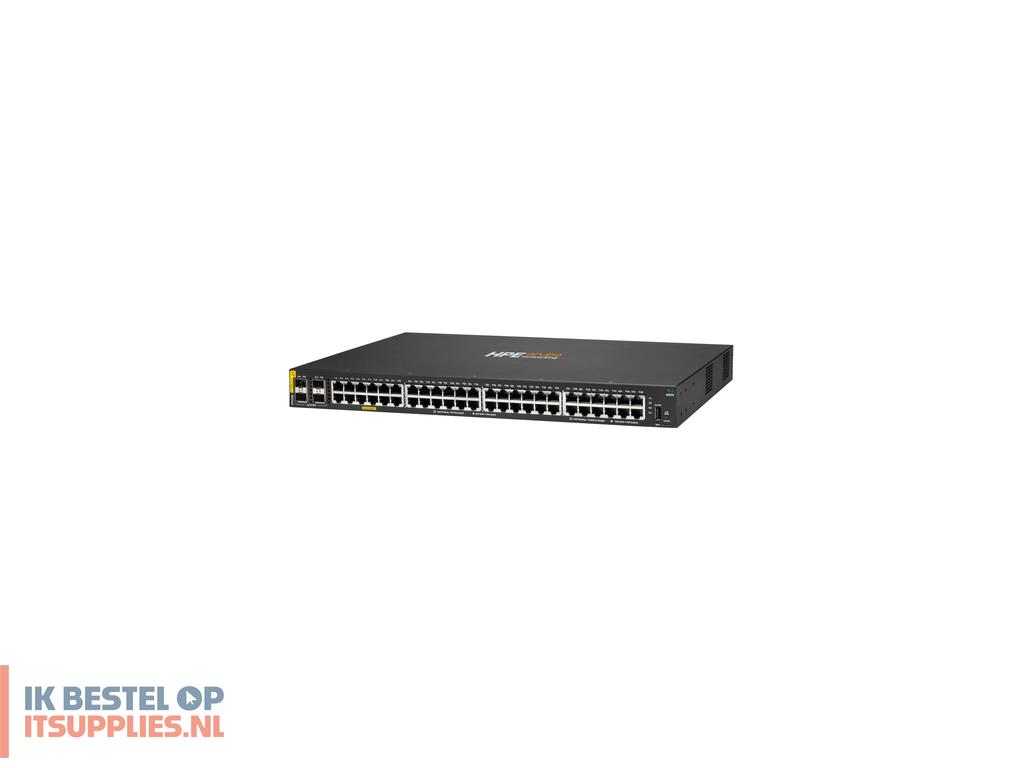

HPE Aruba Networking CX 6000. Switch type: Managed, Switch-laag: L2/L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48, Aantal USB 2.0-poorten: 1, Console port: USB. MAC-adrestabel: 8192 entries, Switchingcapaciteit: 104 Gbit/s. Netwerkstandaard: IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Locatie-instellingen (CLI) configureren
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Netwerk
Netwerkstandaard
IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1ab
Data-uitwisseling
MAC-adrestabel
8192 entries
Switchingcapaciteit
104 Gbit/s
Beveiliging
DHCP-functies
DHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL)
Ja
Multicast-functies
Multicast-ondersteuning
Ja
Design
Kleur van het product
Zwart
Prestatie
Processormodel
ARM Cortex-A9
Frequentie van processor
1016 MHz
Energie
AC-ingangsspanning
200 - 240 V
AC-ingangsfrequentie
50/60 Hz
Vermogensverbruik (max)
818 W
Energieverbruik opmerking
Max. Power (w/o PoE): 45.6W Max. Power (w/ PoE): 818W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Hoeveelheid Power over Ethernet (PoE) ports
48
Totaal Power over Ethernet (PoE)-budget
740 W
Overige specificaties
Latentie
1 Gbps: 1.9 μSec
Geheugen en processor
CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
Prestatiebeheer
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Aansluitingen
48 x 10/100/1000BASE-T Class 4 PoE ports 4 x 1 G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 90 procent
