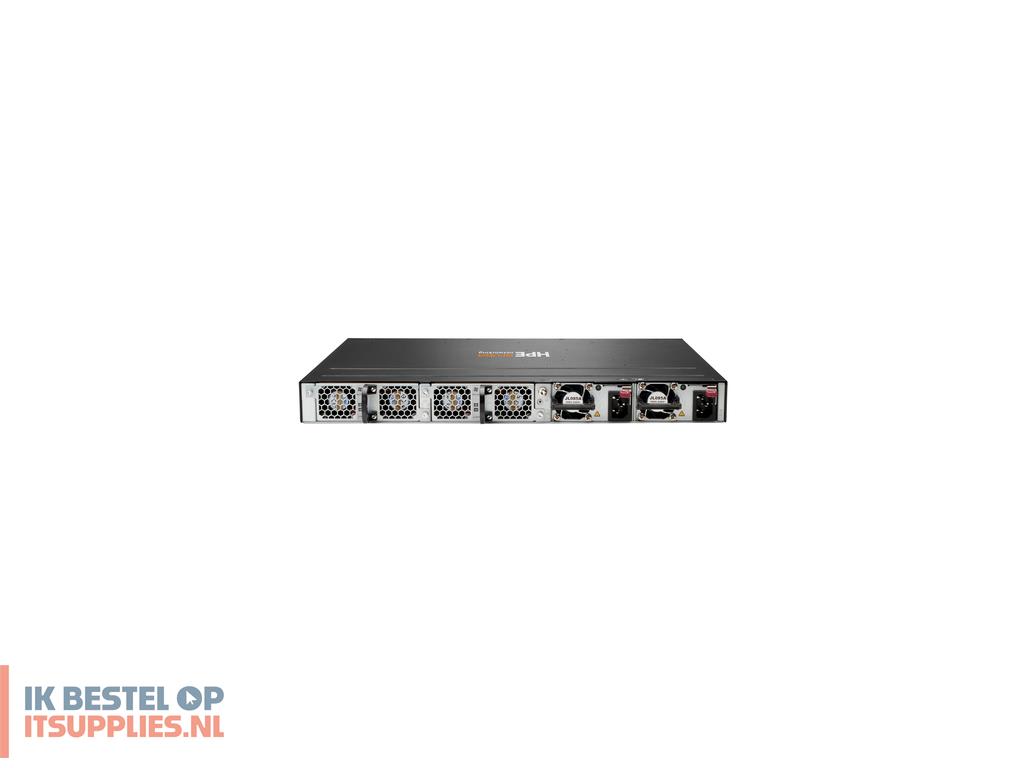

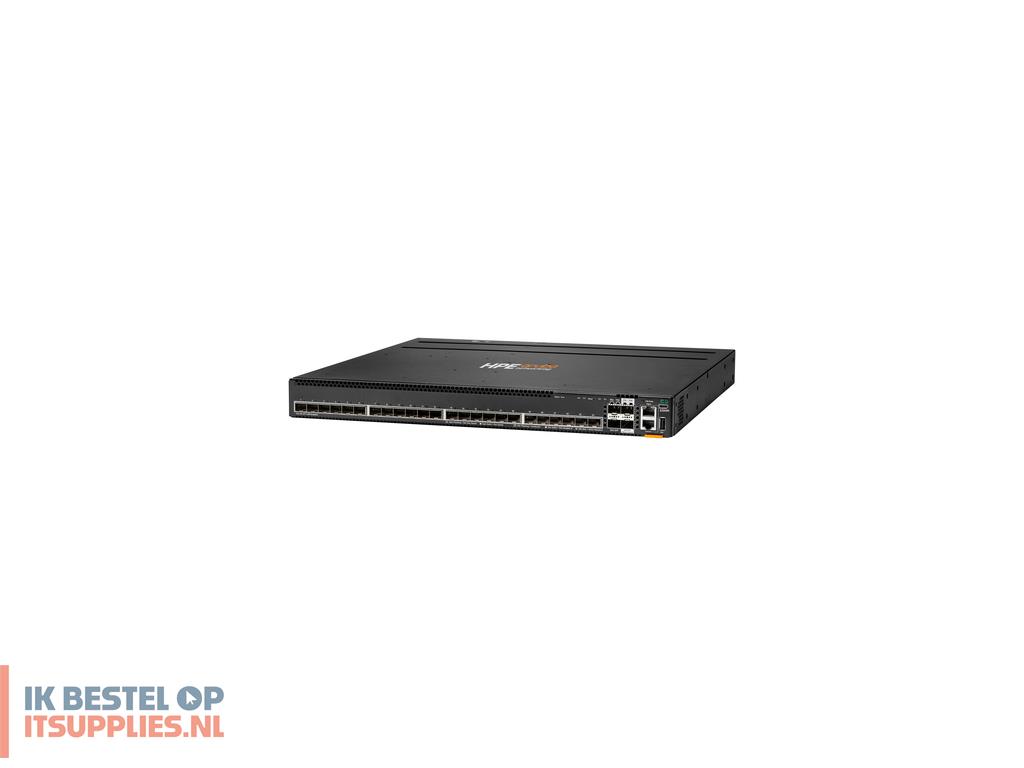

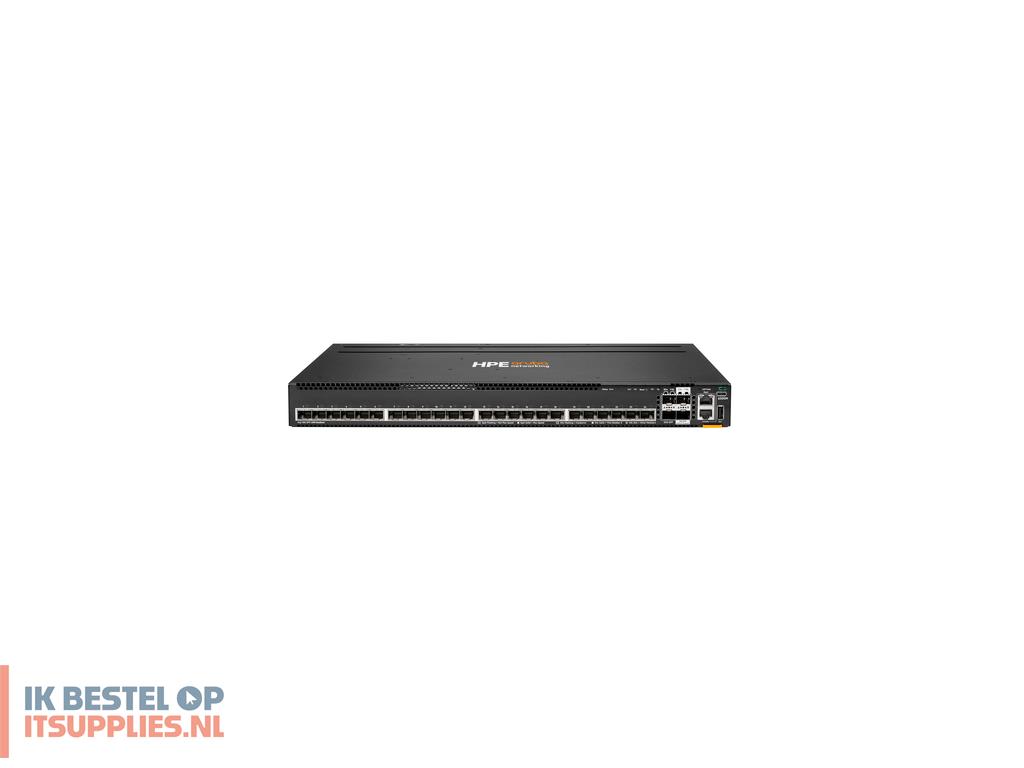

HPE Aruba Networking CX 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACSec Switch. Switch type: Managed, Switch-laag: L3. Console port: RJ-45/USB Type-C. MAC-adrestabel: 32768 entries, Switchingcapaciteit: 780 Gbit/s. Netwerkstandaard: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... Rack-montage, Vormfactor: 1U
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
0
Type basis-switching RJ-45 Ethernet-poorten
Nee
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF+
24
Vezel-optische connector
SFP, SFP+, SFP28, SFP56
Console port
RJ-45/USB Type-C
Netwerk
Netwerkstandaard
IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
1000,10000,25000,50000 Mbit/s
Optische vezel
Transmissie afstand (max)
10 km
Data-uitwisseling
MAC-adrestabel
32768 entries
Switchingcapaciteit
780 Gbit/s
Latentie (1 Gbps)
4,24 µs
Latentie (10 Gbps)
1,5 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
16 MB
Beveiliging
DHCP-functies
DHCP client, DHCP server
Access Control List (ACL)
Ja
Ondersteunde beveiligingsalgoritmen
SSH
Authenticatie type
RADIUS, TACACS+
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Routing protocols
BGP, BGP4, OSPF, OSPFv2, OSPFv3, RIP-2
Design
Aantal ventilatoren
2 ventilator(en)
Prestatie
Physical stacking (units)
10
Processormodel
ARM Cortex-A72
Frequentie van processor
1800 MHz
Energie
AC-ingangsspanning
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 90 procent
