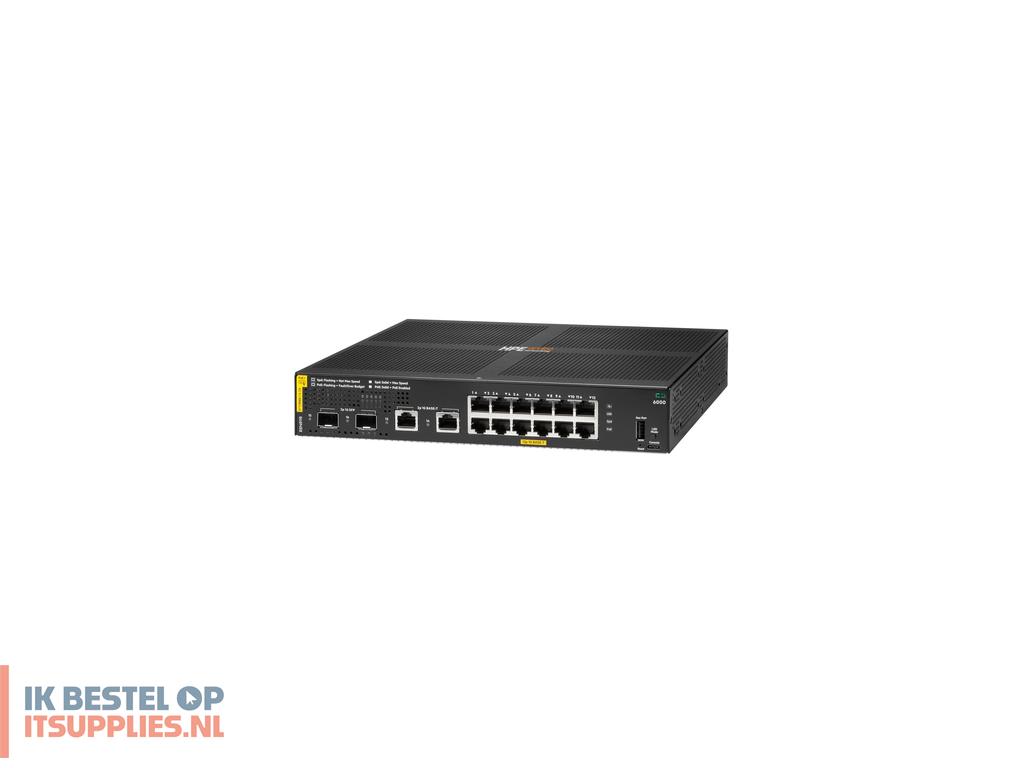

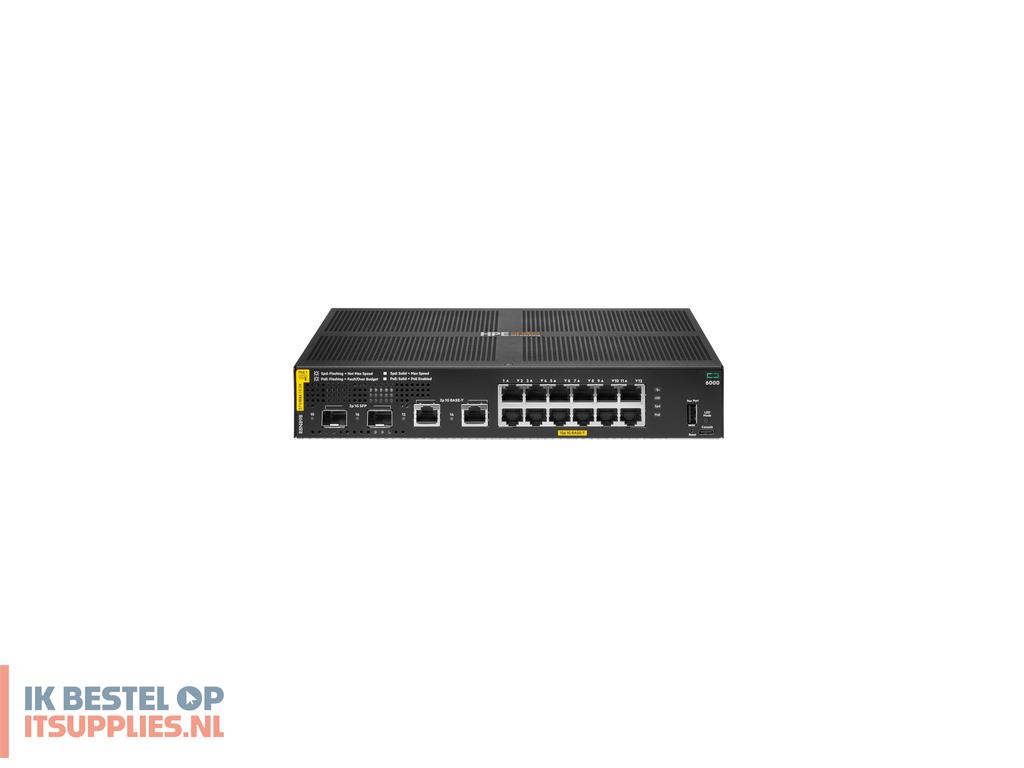

HPE Aruba Networking CX 6000 12p 10M/100M/1G Class4 PoE 2p SFP 1G 139W Switch. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 12, Console port: USB. MAC-adrestabel: 8192 entries, Switchingcapaciteit: 32 Gbit/s. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
12
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Netwerk
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Spanning tree protocol
Ja
Data-uitwisseling
MAC-adrestabel
8192 entries
Switchingcapaciteit
32 Gbit/s
Packet buffergeheugen
12,38 MB
Beveiliging
DHCP-functies
DHCP client
Access Control List (ACL)
Ja
Authenticatie
MAC-gebaseerde authenticatie
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
IPv4- & IPv6-functies
IPv4/IPv6 access-control list (ACL)
IPv4-FIB-vermeldingen
256
IPv6-FIB-vermeldingen
128
Prestatie
Processormodel
ARM Cortex-A9
Frequentie van processor
1016 MHz
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
200 - 240 V
Energieverbruik opmerking
Max. Power (w/o PoE): 19.7W Max. Power (w/ PoE): 165W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Totaal Power over Ethernet (PoE)-budget
139 W
Overige specificaties
Latentie
1 Gbps: 2.3 μSec
Geheugen en processor
CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
Prestatiebeheer
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Networking Switch Multi-Edit Software
Aansluitingen
12x 10/100/1000BASE-T Class 4 PoE ports 2x 1G SFP ports 2x 1 GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C console port 1x USB Type-A host port
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 90 procent
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
