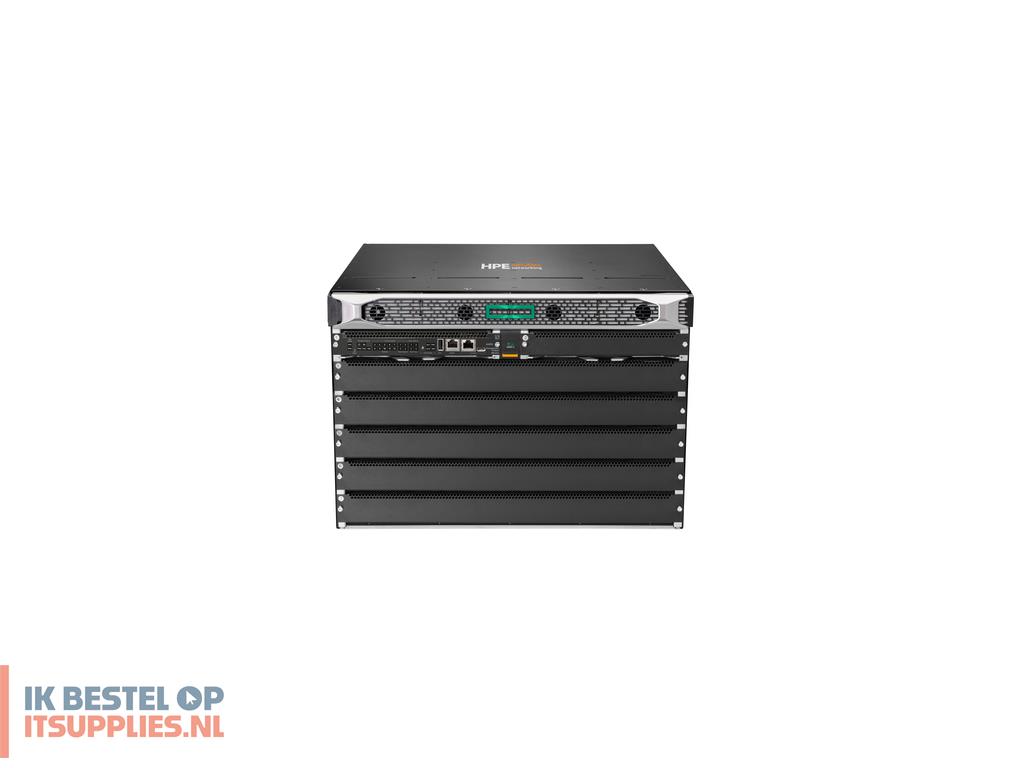

HPE Aruba Networking CX 6405 v2 Switch. Switch type: Managed. Switchingcapaciteit: 14000 Gbit/s. Netwerkstandaard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE). Rack-montage, Vormfactor: 7U
Netwerk
Netwerkstandaard
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Data-uitwisseling
Switchingcapaciteit
14000 Gbit/s
Prestatie
Processormodel
ARM Cortex-A72
Frequentie van processor
1800 MHz
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
200 - 240 V
Energieverbruik opmerking
R0X35A PSU: 1800W at 200–240 VAC, 1100W at 110–127 VAC R0X36A PSU: 3000W at 200–240 VAC, 1500W at 110–127 VAC
Netvoeding voetnoot
Power supply units are not included; order separately. Supports four modular front‐serviceable power supplies with removable rear‐serviceable power cord inlet adapters. Supported power supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately.
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Overige specificaties
Latentie
1G: 5.32 μSec 10G: 1.48 μSec 25G: 2.78 μSec 40G: 1.31 μSec 100G: 1.42 μSec
Geheugen en processor
CPU Management Module: Quad-core Arm Cortex A72 at 1.8 GHz Line Cards: Dual-core Arm Cortex A72 at 1.8 GHz (R0X38A‐R0X45A and R0X38B‐R0X40B) Line Cards: Quad-core Arm Cortex A72 at 1.8 GHz (R0X38C‐R0X45C, S0E48A, S1T83A) Memory and flash Management Module: 16 GB DDR4 ECC memory: 32 GB eMMC Flash memory Line Cards: 4 GB DDR4 memory (R0X38A‐R0X45A and R0X38B‐R0X40B) Line Cards: 8 GB DDR4 memory (R0X38C‐R0X45C, S0E48A, S1T83A)
Prestatiebeheer
Core OS: HPE Networking CX Switch Operating System (OS-CX) Automation: 100% programmable REST APIs and Python scripting Monitoring: Built-in Network Analytics Engine (NAE) for real-time telemetry Orchestration: Seamless HPE Networking Fabric Composer integration Performance Management: Industry-standard CLI with hierarchical structure Network Protocols: SNMP v2c and v3 Traffic Sampling: sFlow (RFC 3176) Remote Monitoring: Remote monitoring (RMON) Integration Interface: REST APIs Physical Management Ports: RJ‐45 serial console Out-of-Band Management: RJ‐45 Ethernet port Alternative Console Access: Micro-USB console Hardware Architecture: Distributed design with HPE Networking Gen7 ASICs High Availability: Active-active fabrics with VSX live upgrades Cloud Management: Multi-vendor visibility via HPE Aruba Networking Central Network Segmentation: Dynamic policy enforcement for user and IoT devices
Fan
Two field replaceable system fan trays
Aansluitingen
High speed, non-blocking 1/10/25/40/50/100GbE ports 10 I/O module slots maximum depending on model
Gewicht (imperiaal)
53,6 kg (118.2 lbs)
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
