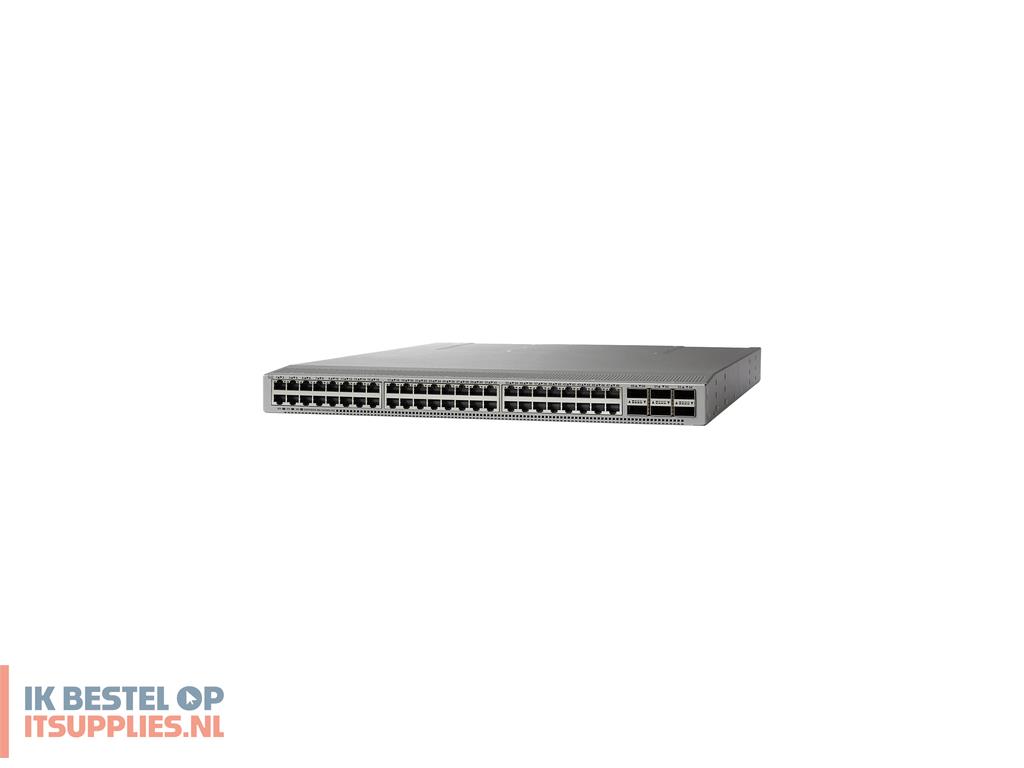

Cisco Nexus 9300. Switch type: Managed, Switch-laag: L2/L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48. Full duplex. MAC-adrestabel: 32000 entries, Switchingcapaciteit: 256 Gbit/s. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack-montage
Beheerfuncties
Quality of Service (QoS)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Netwerk
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
Zero touch provisioning (ZTP)
Ja
Spanning tree protocol
Ja
Multiprotocol Label Switching (MPLS)
Ja
Virtuele LAN-functies
VLAN Identifier ( VLAN ID)
Data-uitwisseling
MAC-adrestabel
32000 entries
Switchingcapaciteit
256 Gbit/s
Verzending snelheid
190,48 Mpps
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
16 MB
Beveiliging
DHCP-functies
DHCP snooping
Access Control List (ACL)
Ja
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Routing protocols
EIGRP, HSRP, OSPF, RIP-2
Design
Kleur van het product
Grijs
Veiligheid
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
Prestatie
Upgraden van firmware mogelijk
Ja
Mean time between failures (MTBF)
27770 uur
Energie
Stroomverbruik (typisch)
715 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
48
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-5 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Hoogte, in bedrijf
0 - 3000 m
