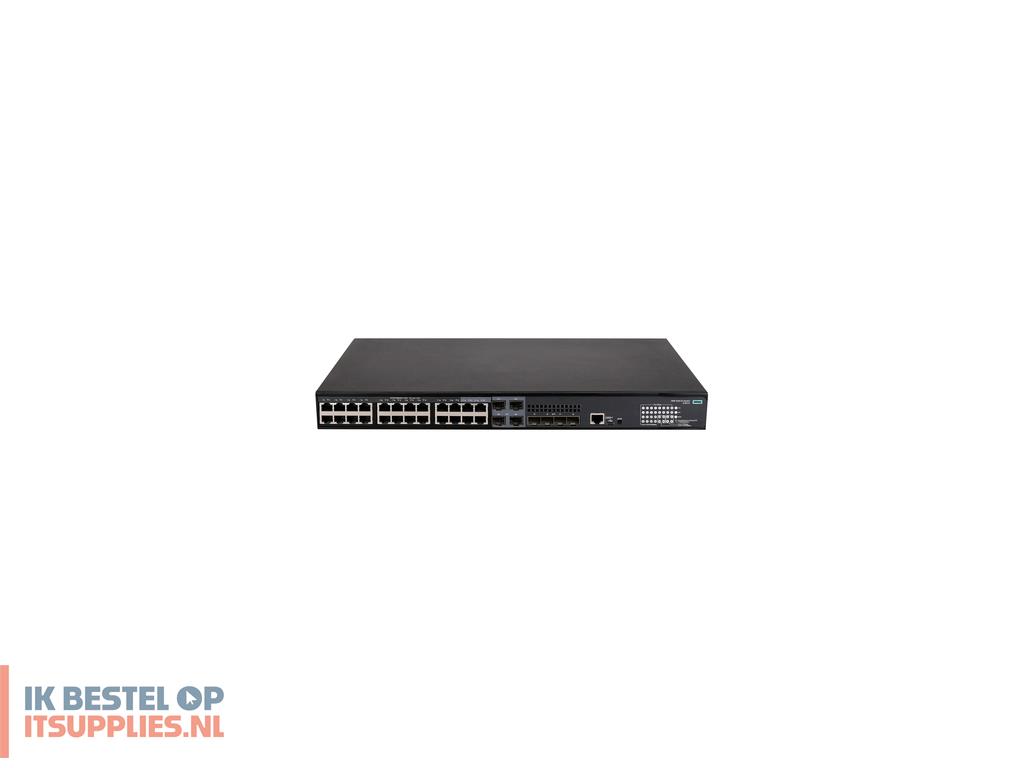

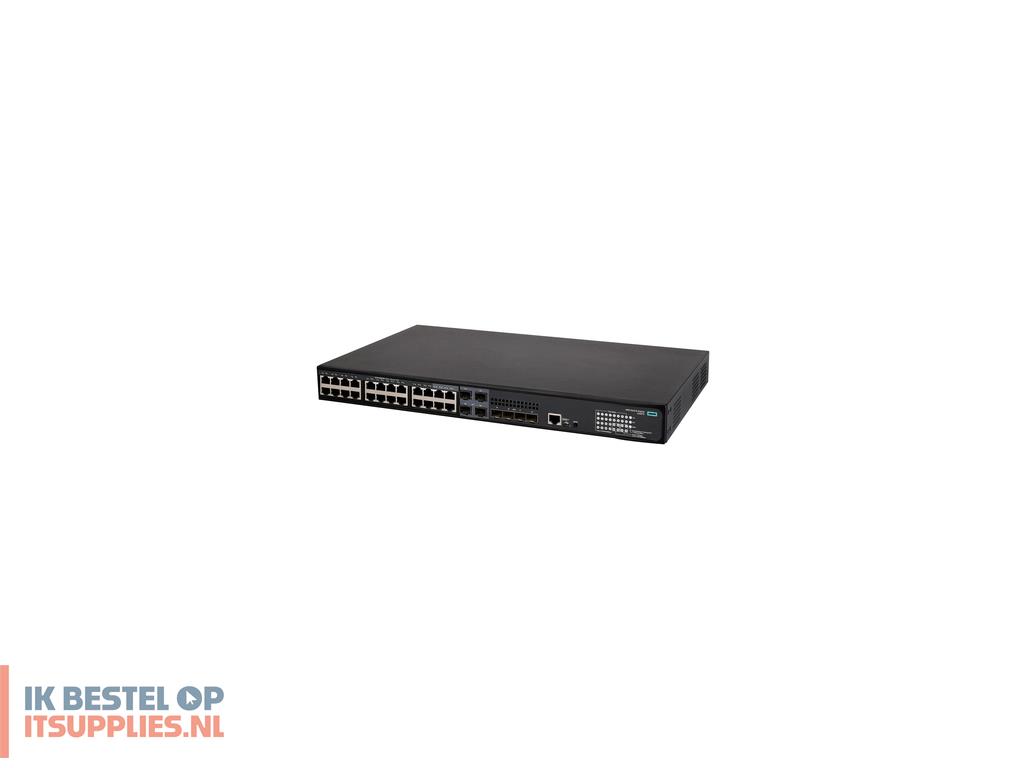

HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 24, Console port: RJ-45. Full duplex. MAC-adrestabel: 16384 entries, Switchingcapaciteit: 128 Gbit/s. Netwerkstandaard: IEEE 802.3at. DC voltage input: 54 - 57 V. Power over Ethernet (PoE). Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF+
4
Netwerk
Netwerkstandaard
IEEE 802.3at
Spanning tree protocol
Ja
Data-uitwisseling
MAC-adrestabel
16384 entries
Switchingcapaciteit
128 Gbit/s
Jumbo Frames ondersteuning
Ja
Beveiliging
DHCP-functies
DHCP server
Access Control List (ACL)
Ja
Authenticatie
MAC-gebaseerde authenticatie
Authenticatie type
RADIUS
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Routing protocols
OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
IPv4-FIB-vermeldingen
512
IPv6-FIB-vermeldingen
256
Prestatie
Physical stacking (units)
9
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
DC voltage input
54 - 57 V
Vermogensverbruik (max)
451 W
Energieverbruik opmerking
451W (Maximum), 30W (Idle) Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the power supplied by the internal power supply. When supplemented with the use of an HPE RPS1600, up to 740W of PoE+ can be supplied. Maximum current rating for DC power is 25A. AC input power is 30W typical and 460W maximum (including 370W PoE+ consumption). DC input voltage range is –54 VDC to –57 VDC. Total DC input power is 25W typical and 790W with 740W PoE+ power consumption. DC input voltage range is –54 VDC to –57 VDC. DC input source is the HPE RPS1600.
Netvoeding voetnoot
At least 1 power supply is required (not included, must be ordered separately)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Totaal Power over Ethernet (PoE)-budget
370 W
Overige specificaties
Latentie
1000 Mb latency: < 5 μs 10 Gbps latency: < 3 μs
Geheugen en processor
512 MB SDRAM, 256 MB flash
Prestatiebeheer
HPE Aruba Networking IMC - Intelligent Management Center; SmartMC; Command-line interface; Web browser; SNMP manager
Aansluitingen
24 RJ-45 autosensing 10/100/1000 ports with 4 combo ports (RJ-45 or SFP); 1 RJ-45 serial console port
Gewicht (imperiaal)
4,5 kg (9.92 lbs)
Afmetingen (B x D x H) (Brits)
43,7 x 439,9 x 260,1 mm (1.72 x 17.3 x 10.2")
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-5 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
1569 BTU/h
