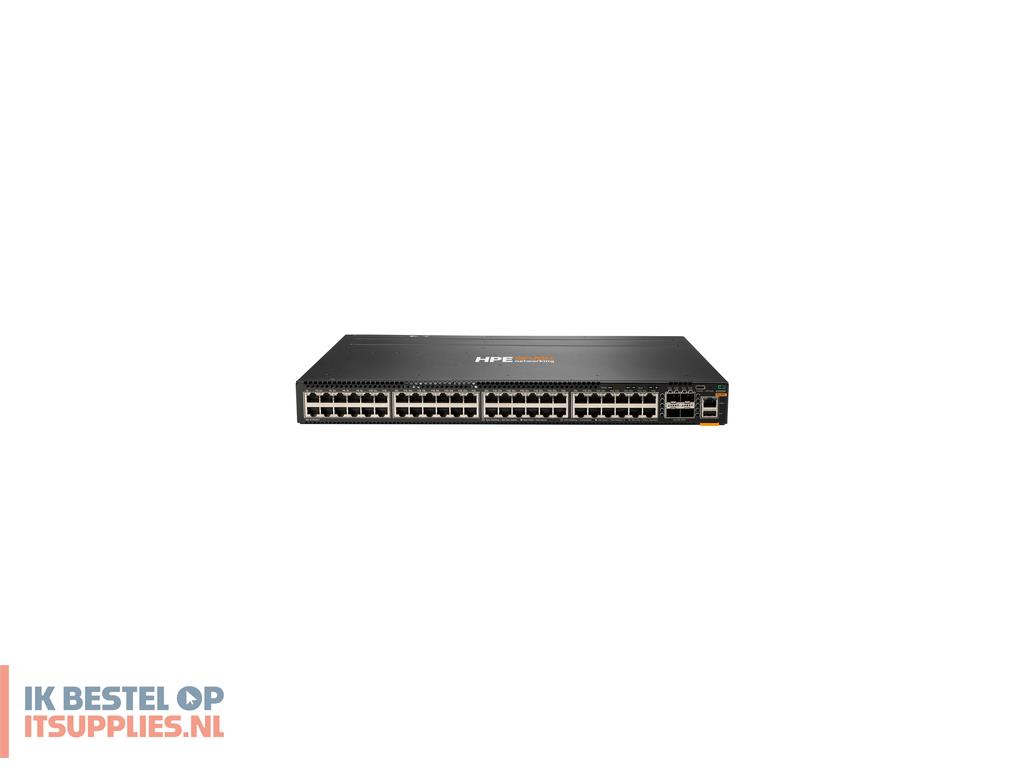

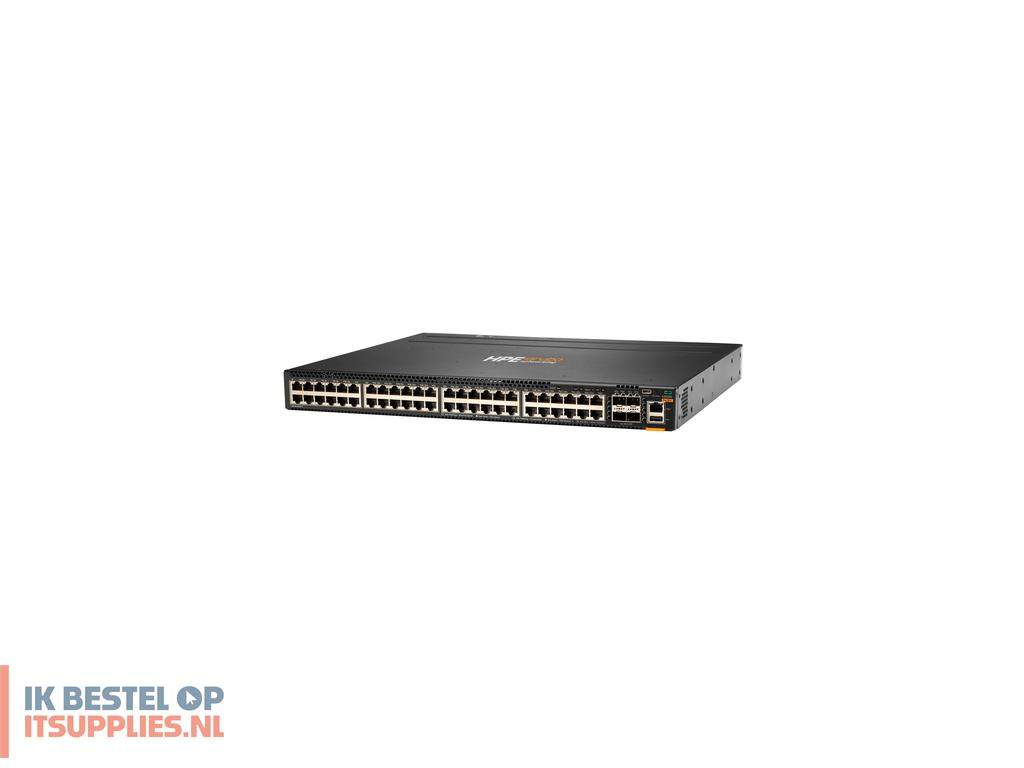

HPE Aruba Networking CX 6300M 48p 1GbE 4p SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48. MAC-adrestabel: 32768 entries, Switchingcapaciteit: 496 Gbit/s. Netwerkstandaard: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Locatie-instellingen (CLI) configureren
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Netwerk
Netwerkstandaard
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,25000,50000 Mbit/s
Data-uitwisseling
MAC-adrestabel
32768 entries
Switchingcapaciteit
496 Gbit/s
Latentie (1 Gbps)
2,28 µs
Latentie (10 Gbps)
1,4 µs
Packet buffergeheugen
8 MB
Beveiliging
DHCP-functies
DHCP client, DHCP server
Access Control List (ACL)
Ja
Authenticatie
MAC-gebaseerde authenticatie
Authenticatie type
RADIUS
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Beheerprotocollen
CLI, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Design
Kleur van het product
Zwart
Ventilatiesysteem
Luchtstroom achter-naar-voor
Aantal ventilatoren
2 ventilator(en)
Prestatie
Physical stacking (units)
10
Processormodel
ARM Cortex-A72
Frequentie van processor
1800 MHz
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Vermogensverbruik (max)
75 W
Energieverbruik opmerking
Idle: 56W 100% Traffic Rate: 75W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Overige specificaties
Latentie
1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs
Geheugen en processor
CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
Prestatiebeheer
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Fan

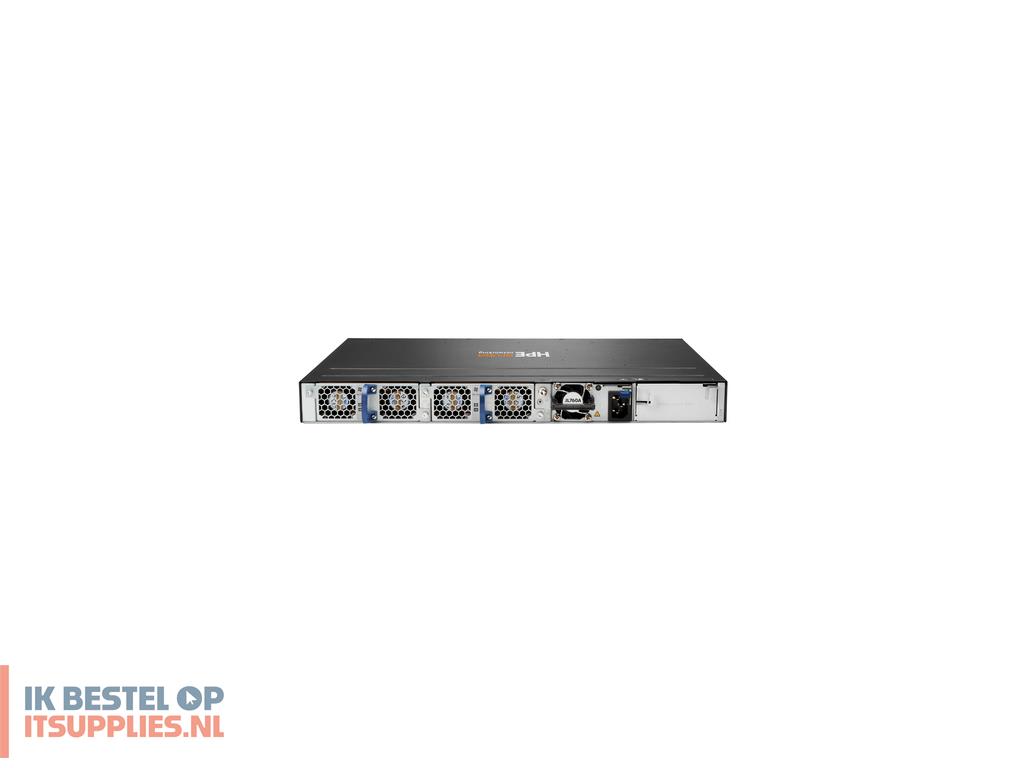

Switch has two fan tray slots and comes with two fan trays installed. Minimum 2 fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans. Supports JL761A power-to-port fan tray only.
Aansluitingen
48 x 10/100/1000 BaseT ports 4 x 1G/10G/25G/50G [4] SFP ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Afmetingen (B x D x H) (Brits)
43,9 x 442 x 386,1 mm (1.73 x 17.4 x 15.2")
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 90 procent
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
