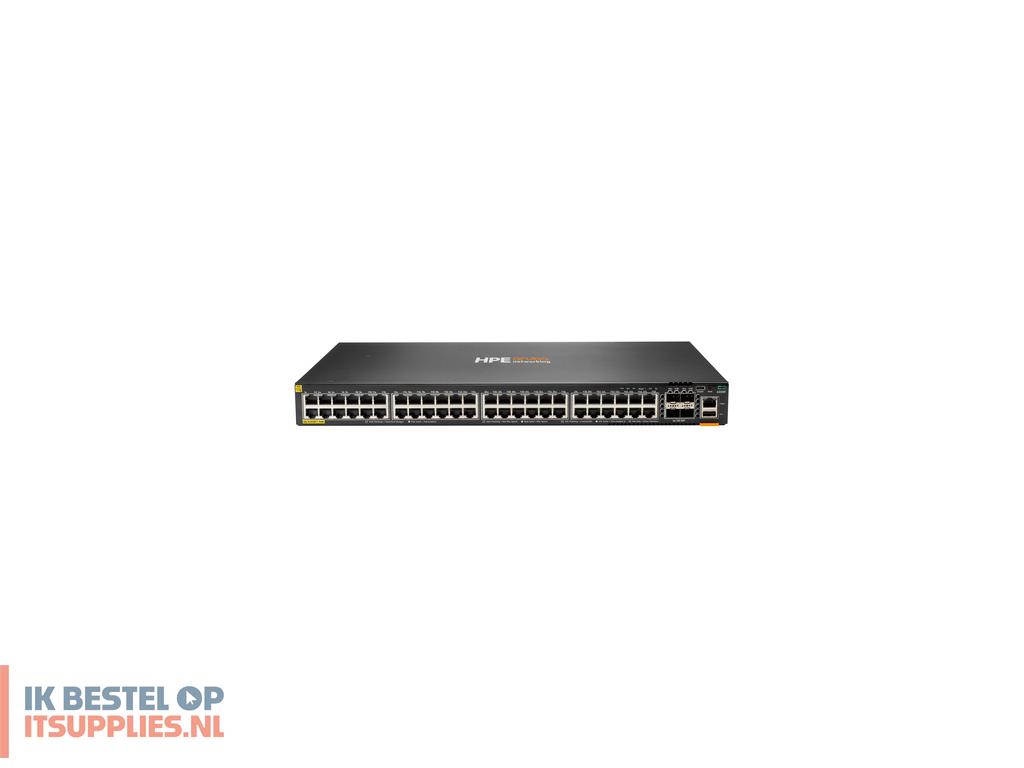

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 740W Switch. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48, Console port: USB. MAC-adrestabel: 16000 entries, Switchingcapaciteit: 176 Gbit/s. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE.... Power over Ethernet (PoE). Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF+
4
Netwerk
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
Spanning tree protocol
Ja
Optische vezel
Transmissie afstand (max)
10 km
Data-uitwisseling
MAC-adrestabel
16000 entries
Switchingcapaciteit
176 Gbit/s
Latentie (1 Gbps)
2,28 µs
Latentie (10 Gbps)
1,46 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
8 MB
Beveiliging
Access Control List (ACL)
Ja
Design
Kleur van het product
Zwart
Prestatie
Physical stacking (units)
8
Processormodel
ARM Cortex-A72
Frequentie van processor
1800 MHz
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
200 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
950 W
Energieverbruik opmerking
76W at 230 VAC
Netvoeding voetnoot
Fixed power supply (950W) Up to 740W of Class 4 PoE Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Totaal Power over Ethernet (PoE)-budget
740 W
Overige specificaties
Latentie
1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Geheugen en processor
CPU: Quad-core Arm Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC
Prestatiebeheer
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Aansluitingen
48 x 10/100/1000BASE-T Class 4 PoE ports 4 x 1/10G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x Bluetooth adapter to be used with CX Mobile app
Gewicht (imperiaal)
5,1 kg (11.2 lbs)
Afmetingen (B x D x H) (Brits)
43,9 x 442 x 327,7 mm (1.73 x 17.4 x 12.9")
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 95 procent
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
