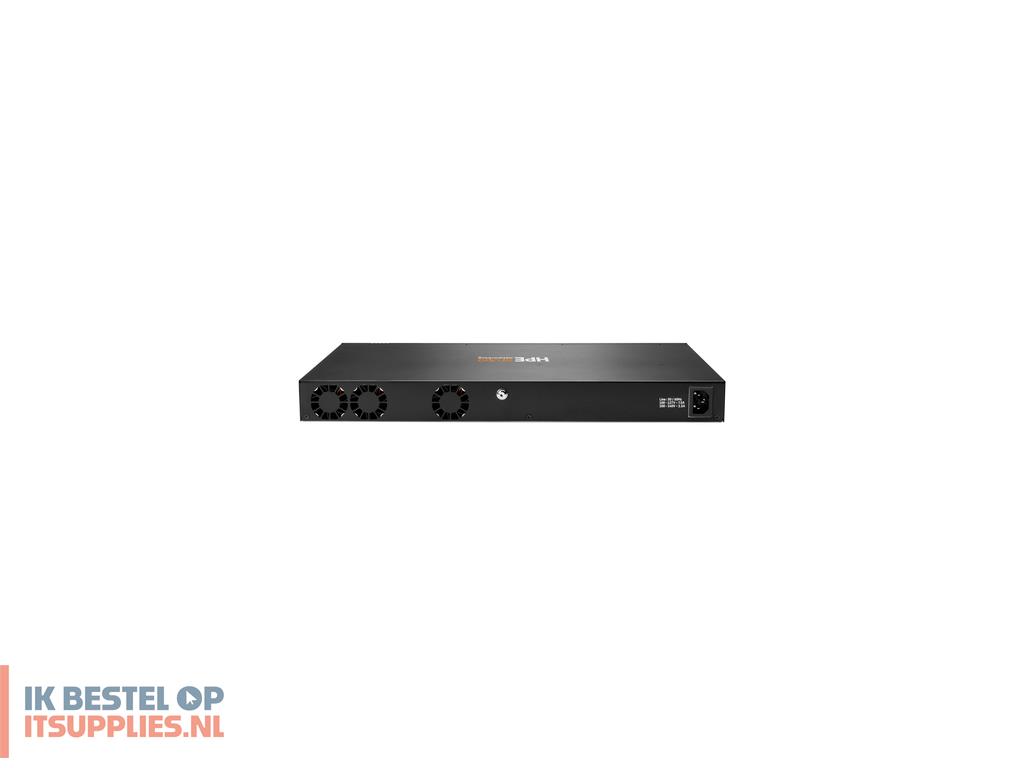

HPE Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ 370W Switch. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 24, Console port: USB. MAC-adrestabel: 32768 entries, Switchingcapaciteit: 128 Gbit/s. Netwerkstandaard: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Power over Ethernet (PoE). Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF+
4
Aantal USB Type-A-poorten
1
Netwerk
Netwerkstandaard
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Spanning tree protocol
Ja
Optische vezel
Transmissie afstand (max)
10 km
Data-uitwisseling
MAC-adrestabel
32768 entries
Switchingcapaciteit
128 Gbit/s
Latentie (1 Gbps)
2,28 µs
Latentie (10 Gbps)
1,46 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
8 MB
Beveiliging
DHCP-functies
DHCP relay, DHCP server
Access Control List (ACL)
Ja
Authenticatie
MAC-gebaseerde authenticatie, Webgebaseerde authenticatie
Authenticatie type
RADIUS, TACACS+
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Beheerprotocollen
SNMPv2c, SNMPv3
Routing protocols
OSPFv2, OSPFv3, RIP-2
Design
Luchtstroomrichting
Luchtstroom van voren naar achteren
Prestatie
Physical stacking (units)
8
Processormodel
ARM Cortex-A72
Frequentie van processor
1800 MHz
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
200 - 240 V
AC-ingangsfrequentie
50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Totaal Power over Ethernet (PoE)-budget
370 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 90 procent
Hoogte, in bedrijf
0 - 3048 m
Hoogte bij opslag
0 - 4600 m
