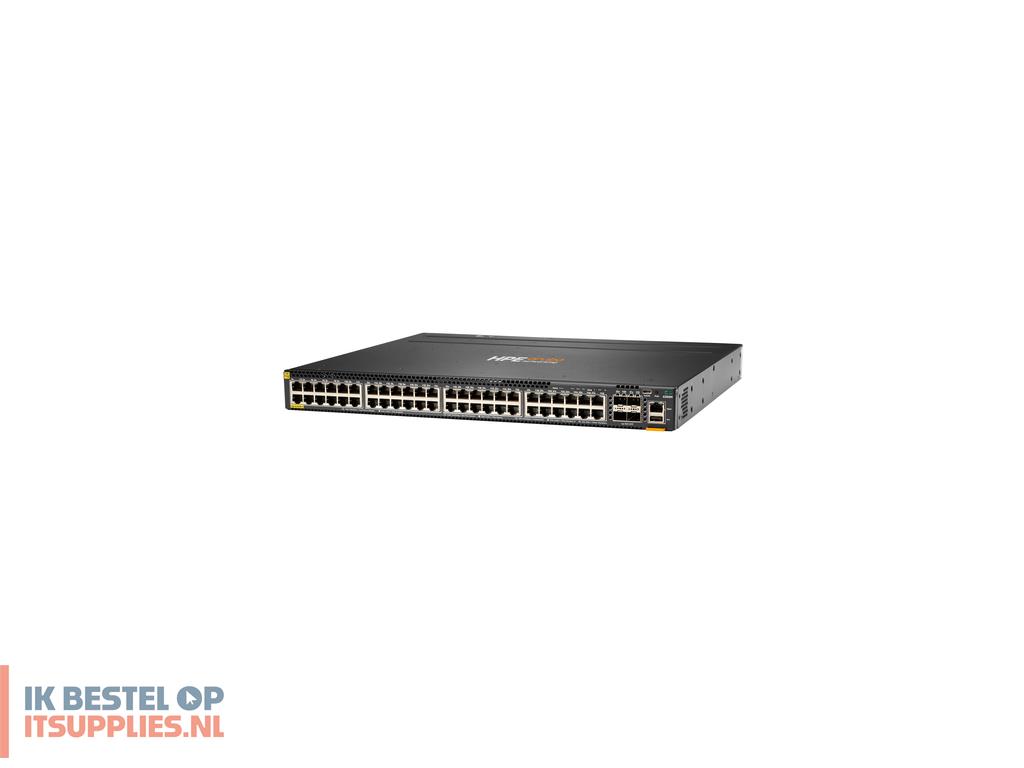

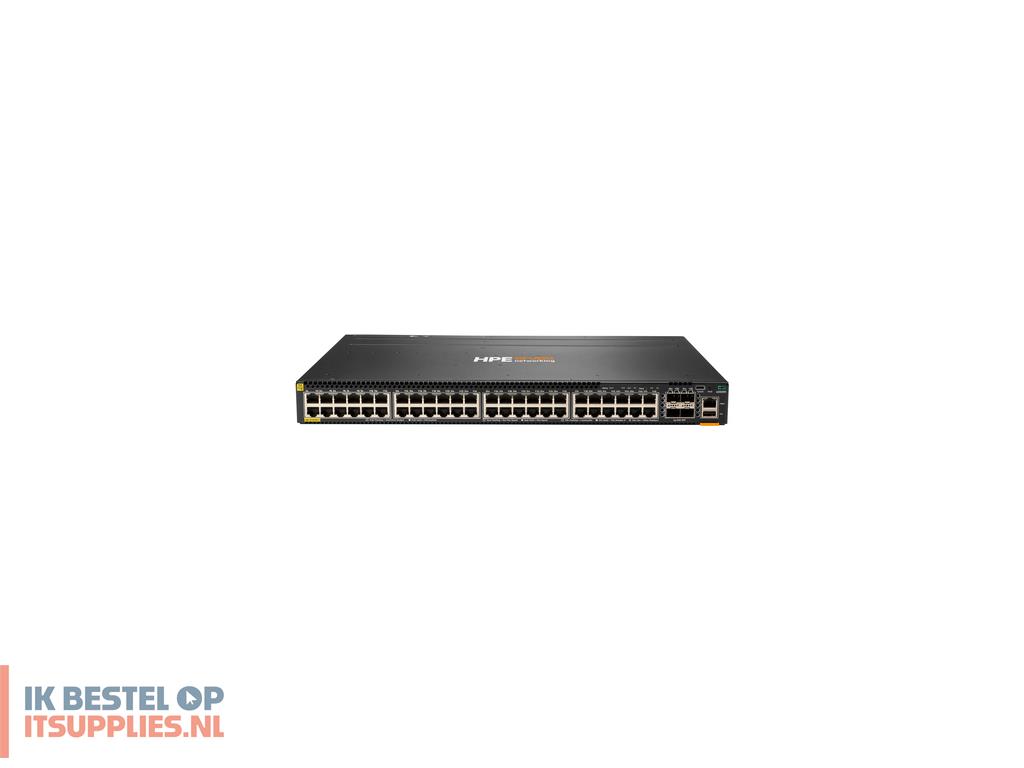

HPE Aruba Networking CX 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48. MAC-adrestabel: 29490 entries, Switchingcapaciteit: 496 Gbit/s. Netwerkstandaard: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Power over Ethernet (PoE). Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Netwerk
Netwerkstandaard
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z
Spanning tree protocol
Ja
Optische vezel
Transmissie afstand (max)
10 km
Data-uitwisseling
MAC-adrestabel
29490 entries
Switchingcapaciteit
496 Gbit/s
Latentie (1 Gbps)
2,28 µs
Latentie (10 Gbps)
1,46 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
8 MB
Beveiliging
DHCP-functies
DHCP server
Access Control List (ACL)
Ja
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Routing protocols
BGP, BGP4, IP, OSPF
Design
Kleur van het product
Grijs
Prestatie
Physical stacking (units)
10
Processormodel
ARM Cortex-A72
Frequentie van processor
1800 MHz
Energie
Vermogenstoevoer inclusief
Nee
AC-ingangsspanning
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Totaal Power over Ethernet (PoE)-budget
1440 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
