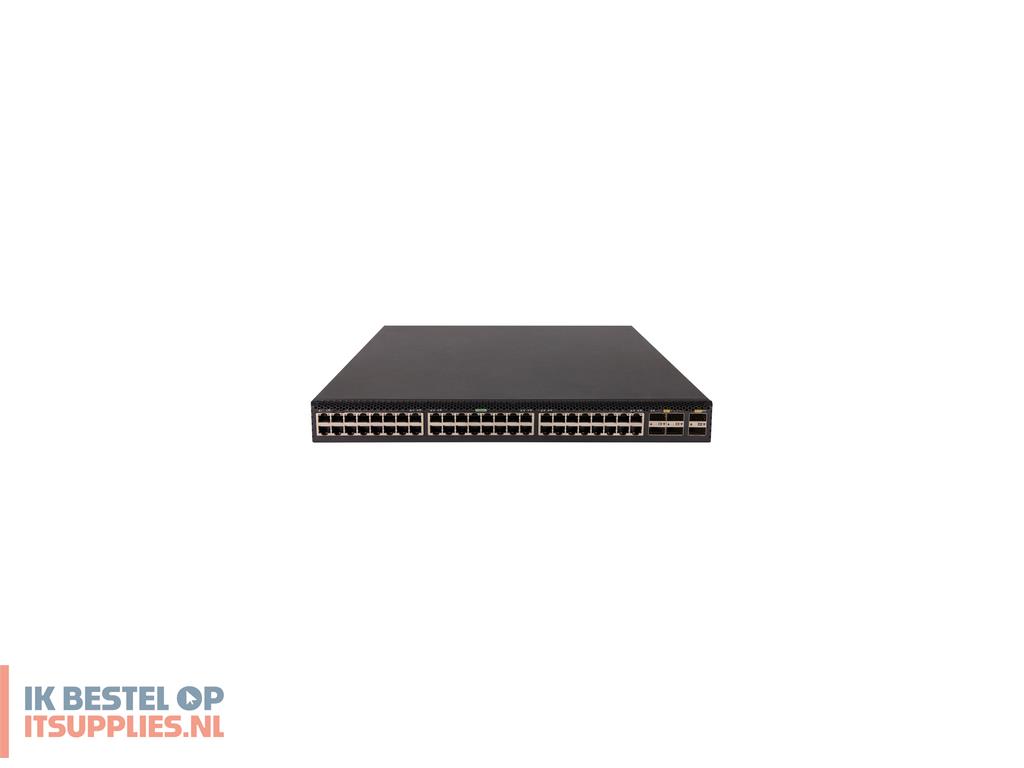

HPE Networking Comware Switch 48XGT 6QSFP+ or 2QSFP28 5710. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: 10G Ethernet (100/1000/10000), Aantal basis-switching RJ-45 Ethernet-poorten: 48. MAC-adrestabel: 208000 entries, Switchingcapaciteit: 1440 Gbit/s. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1s,.... Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
10G Ethernet (100/1000/10000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Netwerk
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ah
Spanning tree protocol
Ja
Data-uitwisseling
MAC-adrestabel
208000 entries
Switchingcapaciteit
1440 Gbit/s
Latentie (10 Gbps)
2,5 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
12 MB
Beveiliging
DHCP-functies
DHCP client, DHCP server
Access Control List (ACL)
Ja
Authenticatie type
IEEE 802.1x, RADIUS
Protocollen
Routing protocols
BGP, IP, MPLS, OSPF, RIP, VRRP
IPv4-FIB-vermeldingen
16000
IPv6-FIB-vermeldingen
8000
Design
Kleur van het product
Zwart
Prestatie
Physical stacking (units)
9
Virtual stacking (units)
10
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
450 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Warmtedissipatie
900 BTU/h
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
