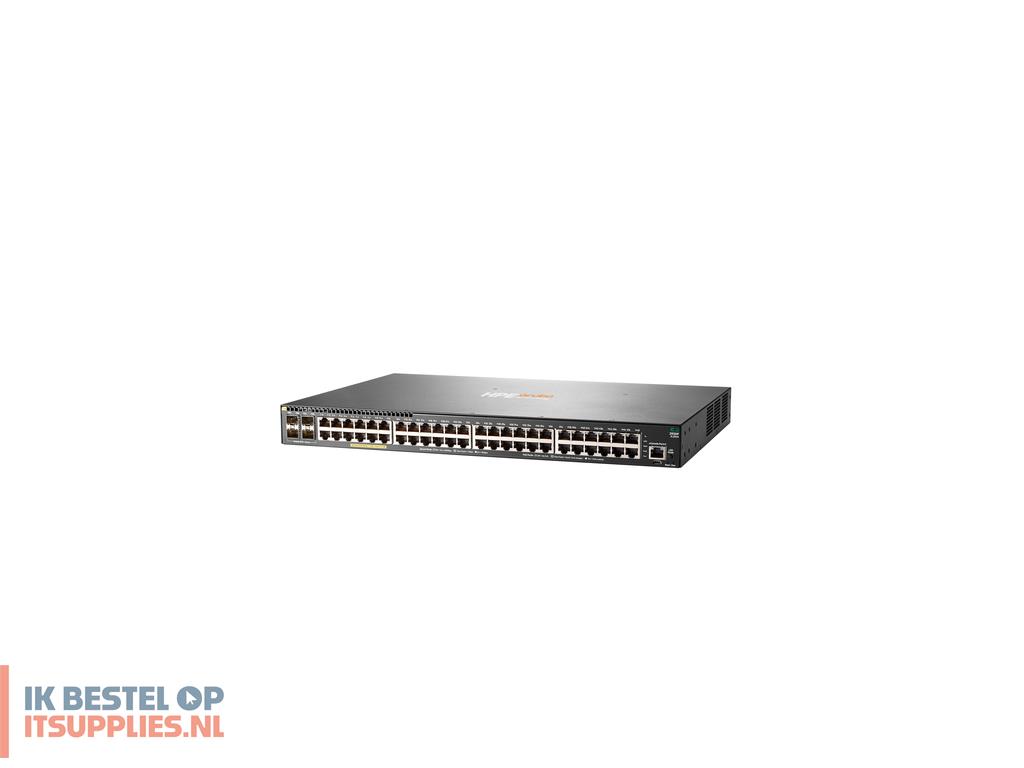

HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48, Console port: RJ-45/micro-USB. Full duplex. MAC-adrestabel: 32768 entries, Switchingcapaciteit: 176 Gbit/s. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF+
4
Console port
RJ-45/micro-USB
Netwerk
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Spanning tree protocol
Ja
Virtuele LAN-functies
Private VLAN
Data-uitwisseling
MAC-adrestabel
32768 entries
Switchingcapaciteit
176 Gbit/s
Latentie (10 Gbps)
1,6 µs
Packet buffergeheugen
12,38 MB
Beveiliging
Access Control List (ACL)
Ja
Authenticatie
MAC-gebaseerde authenticatie, Webgebaseerde authenticatie
Authenticatie type
RADIUS, TACACS+
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Beheerprotocollen
SNMPv1, SNMPv2, SNMPv3, Telnet, RMON1, FTP
Routing protocols
RIPng, VRRP
IPv4- & IPv6-functies
IPv4/IPv6 access-control list (ACL)
Design
Luchtstroomrichting
Zijkant-naar-zijkant luchtstroom
Prestatie
Virtual stacking (units)
8
Processormodel
ARM Cortex-A9
Frequentie van processor
1016 MHz
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
200 - 240 V
AC-ingangsfrequentie
50/60 Hz
Vermogensverbruik (max)
459 W
Energieverbruik opmerking
459W (maximum)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Totaal Power over Ethernet (PoE)-budget
370 W
Overige specificaties
Latentie
1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs
Geheugen en processor
Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC
Prestatiebeheer
HPE Aruba Networking Management Software (AirWave) Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Aansluitingen
(48) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE ports PHY-less
Gewicht (imperiaal)
4,46 kg (9.83 lbs)
Afmetingen (B x D x H) (Brits)
43,9 x 442,5 x 304,3 mm (1.73 x 17.4 x 12")
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 95 procent
Warmtedissipatie
293 BTU/h
