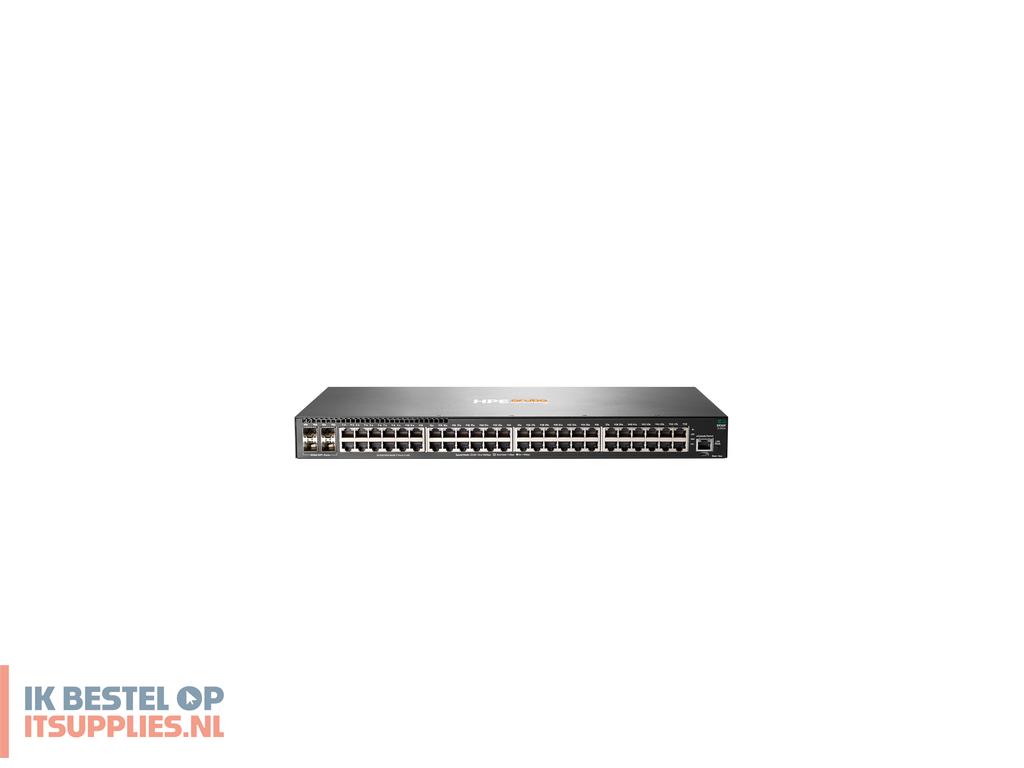

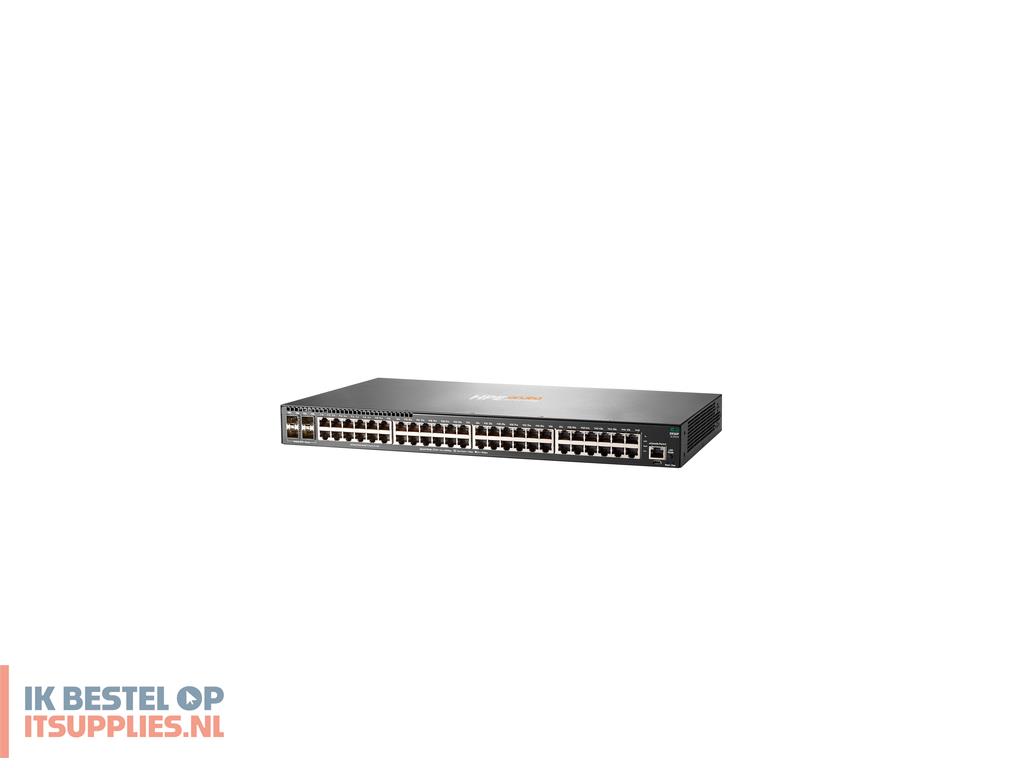

HPE Aruba Networking 2930F 48G 4SFP+ Switch. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48, Console port: RJ-45/micro-USB. MAC-adrestabel: 32768 entries, Switchingcapaciteit: 176 Gbit/s. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
48
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal moduleslots SPF+
4
Console port
RJ-45/micro-USB
Netwerk
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Spanning tree protocol
Ja
Virtuele LAN-functies
Private VLAN
Data-uitwisseling
MAC-adrestabel
32768 entries
Switchingcapaciteit
176 Gbit/s
Latentie (10 Gbps)
1,6 µs
Packet buffergeheugen
12,38 MB
Beveiliging
Access Control List (ACL)
Ja
Authenticatie
MAC-gebaseerde authenticatie, Webgebaseerde authenticatie
Authenticatie type
RADIUS, TACACS+
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Beheerprotocollen
SNMPv1, SNMPv2, SNMPv3, Telnet, RMON1, FTP
Routing protocols
RIPng, VRRP
IPv4- & IPv6-functies
IPv4/IPv6 access-control list (ACL)
Design
Luchtstroomrichting
Zijkant-naar-zijkant luchtstroom
Prestatie
Virtual stacking (units)
8
Processormodel
ARM Cortex-A9
Frequentie van processor
1016 MHz
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
200 - 240 V
AC-ingangsfrequentie
50/60 Hz
Vermogensverbruik (max)
46,6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 95 procent
Warmtedissipatie
157,2 BTU/h
