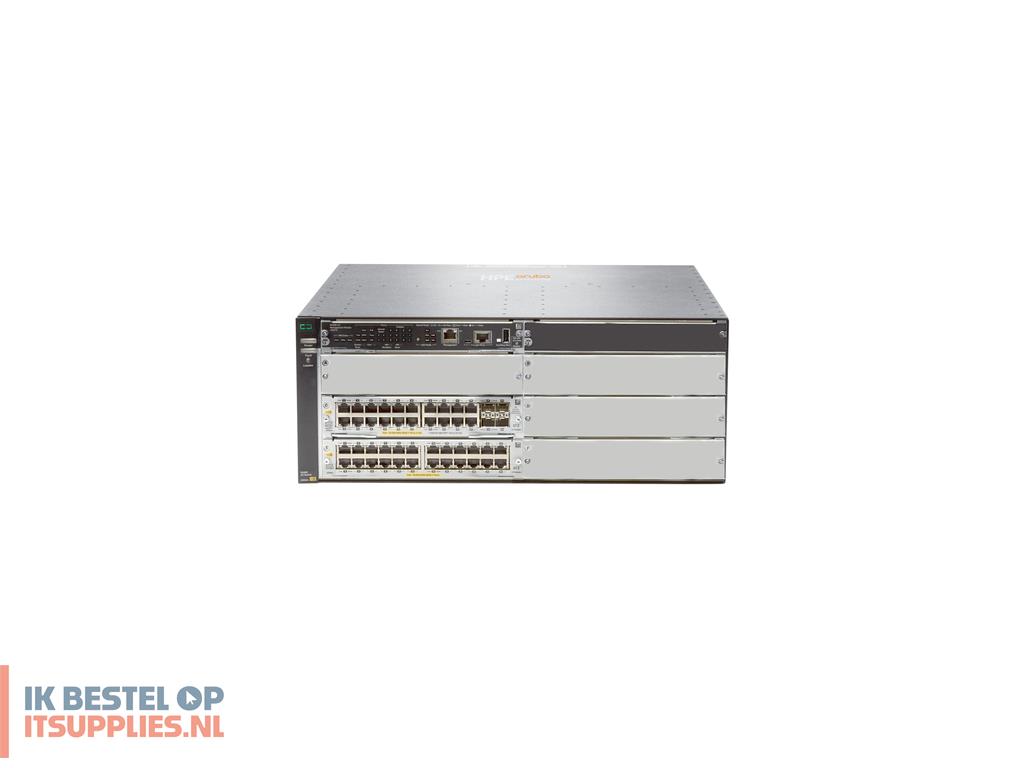

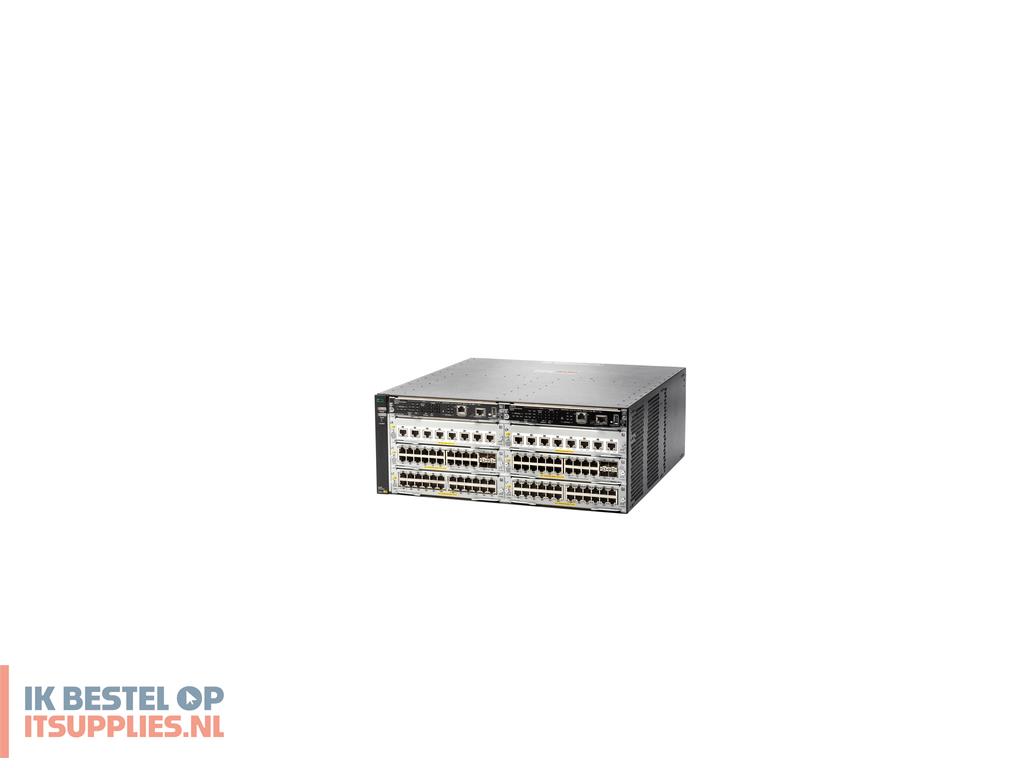

The HP 5400R zl2 Switch Series is an industry leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high speed connectivity and bandwidth for next wave 802.11ac devices. It brings enterprise-class resiliency and innovative flexibility and scalability to converged campus networks.
Robust virtualization with HP AllianceOne solutions, hitless failover, QoS and security with full L3 features and flexible connectivity including 40 Gigabit Ethernet ports and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
44
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Compatibele geheugenkaarten
SD
Netwerk
Netwerkstandaard
IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u
Data-uitwisseling
MAC-adrestabel
64000 entries
Switchingcapaciteit
960 Gbit/s
Jumbo Frames ondersteuning
Ja
Beveiliging
Access Control List (ACL)
Ja
Design
Kleur van het product
Grijs
Prestatie
Frequentie van processor
1200 MHz
Energie
Vermogenstoevoer inclusief
Nee
AC-ingangsspanning
200 - 240 V
AC-ingangsfrequentie
50/60 Hz
Netvoeding voetnoot
2 power supply slots 1 minimum power supply required (ordered separately)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Overige specificaties
Latentie
1000 Mb Latency: < 2.8 μs; 10 Gbps Latency: < 1.8 μs; 40 Gbps Latency: < 1.5 μs
Geheugen en processor
Depend on the model: Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM.
Prestatiebeheer
HPE Aruba Networking Management Software HPE Aruba Networking Central HPE Intelligent Management Center Basic Software Platform (IMC) Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) Out-of-band management (serial RS-232C or micro USB) SNMP manager
Aansluitingen
44 RJ‐45 auto‐sensing 10/100/1000 PoE+ ports 4 open 10 GbE SFP+ transceiver 4 open module slots Supports a maximum of 144 auto‐sensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi‐Gigabit or 12 40 GbE ports, or a combination.
Gewicht (imperiaal)
12,8 kg (28.1 lbs)
Afmetingen (B x D x H) (Brits)
444,5 x 450,9 x 175,3 mm (17.5 x 17.8 x 6.9")
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 95 procent
Warmtedissipatie
2450 BTU/h
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
