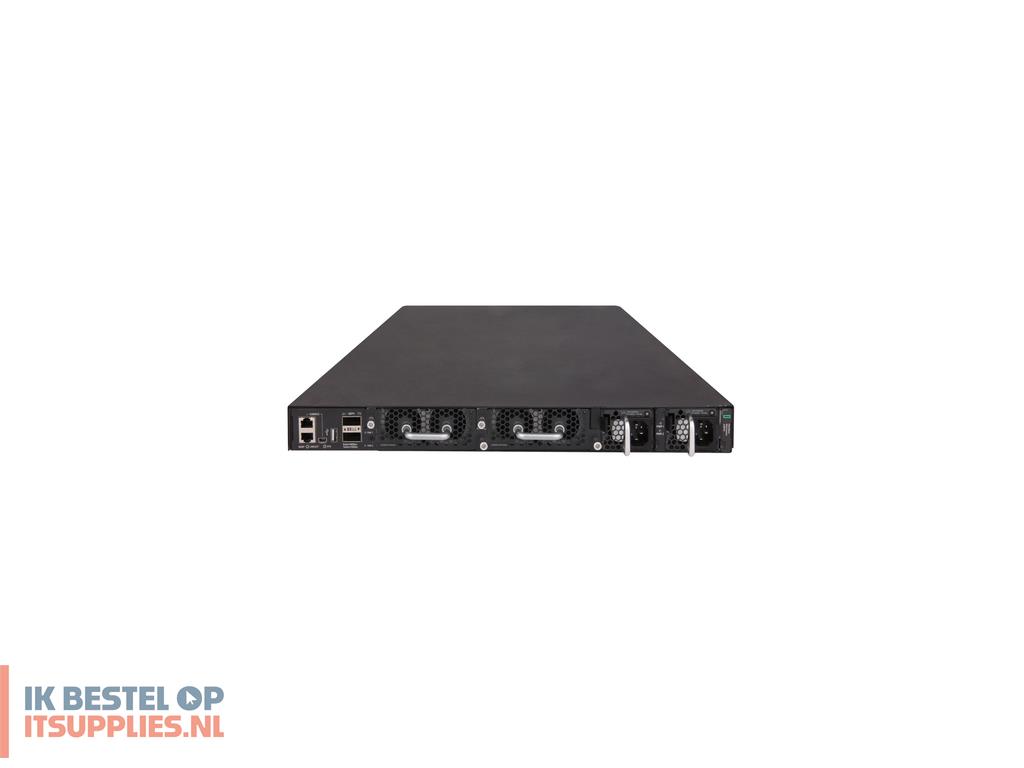

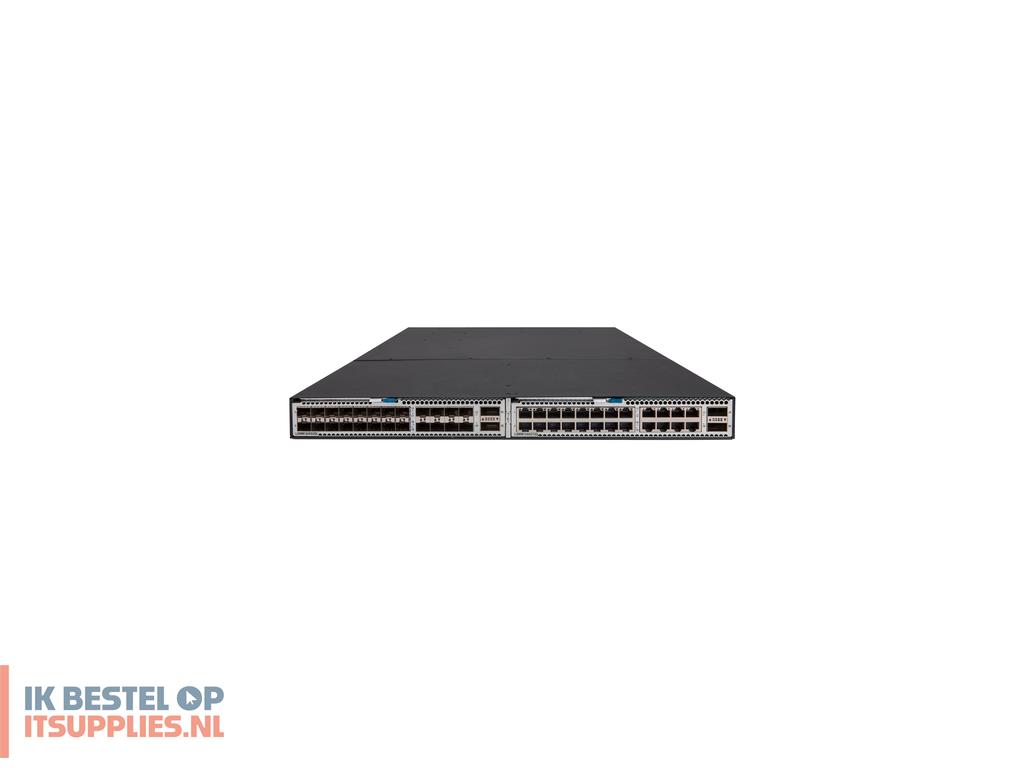

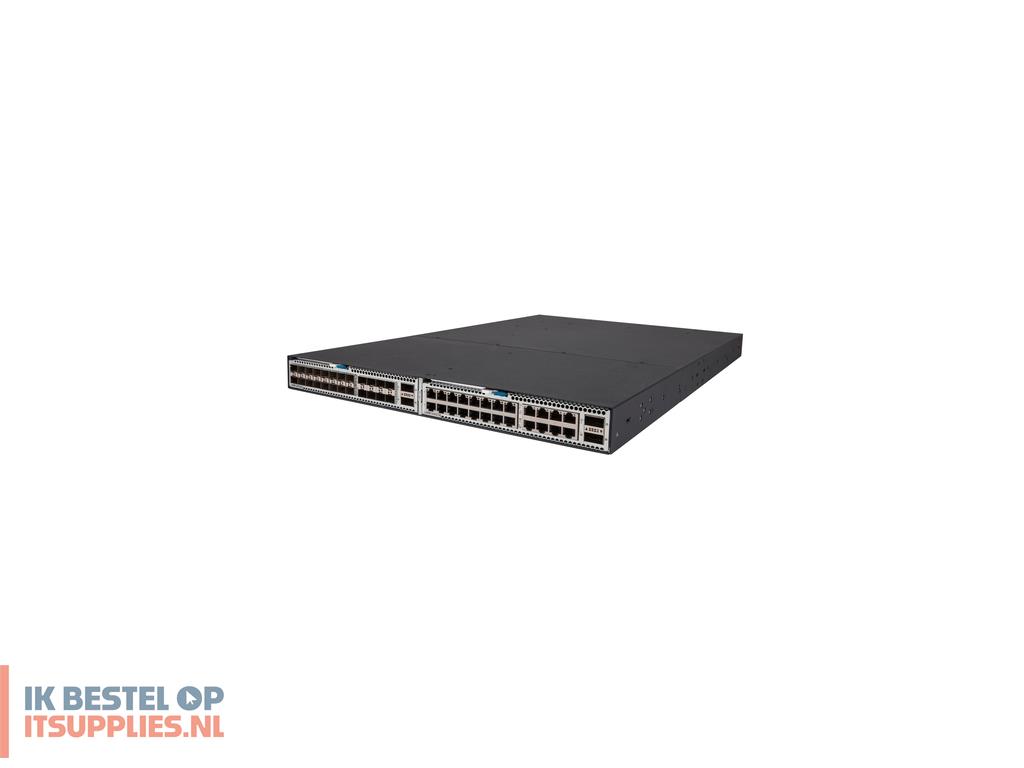

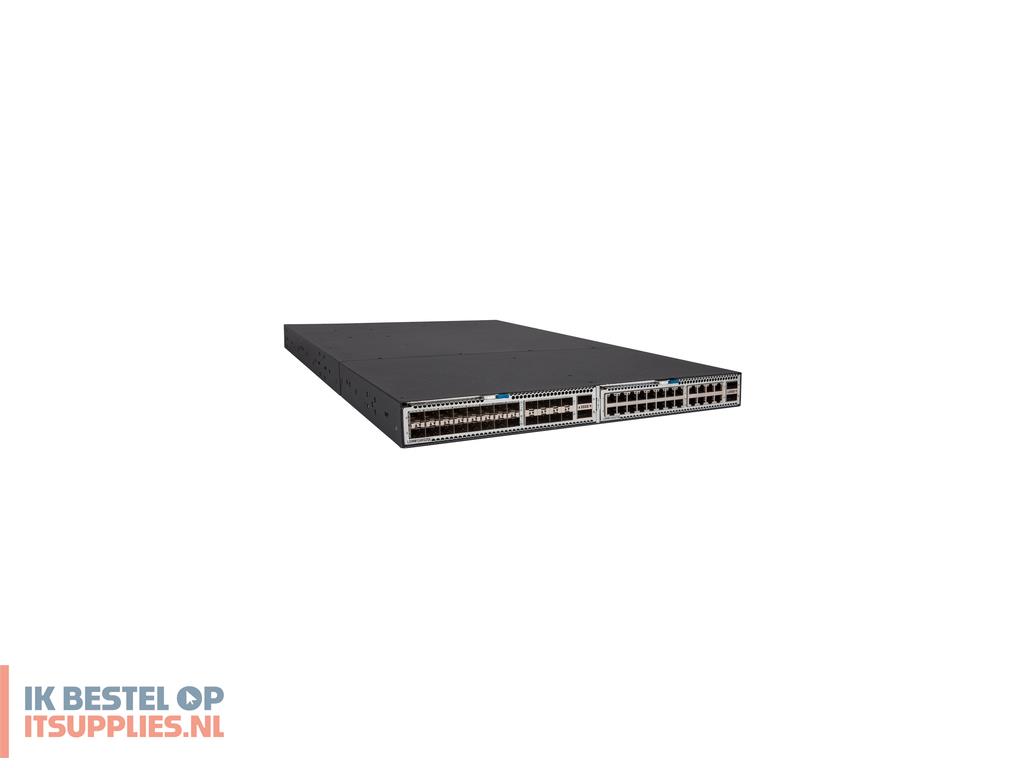

HPE Networking Comware Switch 48SFP+ 6QSFP28 5940. Switch type: Managed, Switch-laag: L2/L4. Aantal USB 2.0-poorten: 1, Console port: RJ-45/Mini-USB. MAC-adrestabel: 288000 entries, Switchingcapaciteit: 2160 Gbit/s. Netwerkstandaard: IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x. DC voltage input: 40 - 60 V. Rack-montage, Vormfactor: 1U
Beheerfuncties
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
0
Type basis-switching RJ-45 Ethernet-poorten
Nee
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Aantal Gigabit Ethernet (koper)-poorten
1
Aantal moduleslots SPF+
48
Aantal GSFP+-moduleslots
6
Vezel-optische connector
QSFP28, SFP+
Console port
RJ-45/Mini-USB
Netwerk
Netwerkstandaard
IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x
Optische vezel
Fiber ethernet cabling technologie
1000BASE-X, 10GBASE-R
Data-uitwisseling
MAC-adrestabel
288000 entries
Switchingcapaciteit
2160 Gbit/s
Packet buffergeheugen
16 MB
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Beheerprotocollen
SNMP, Telnet, FTP
Design
Kleur van het product
Zwart
Prestatie
Physical stacking (units)
9
Energie
Vermogenstoevoer inclusief
Nee
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
DC voltage input
40 - 60 V
Ingangsspanning
-40 - -75 V
Stroomverbruik (typisch)
196 W
Vermogensverbruik (max)
196 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Warmtedissipatie
887 BTU/h
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
